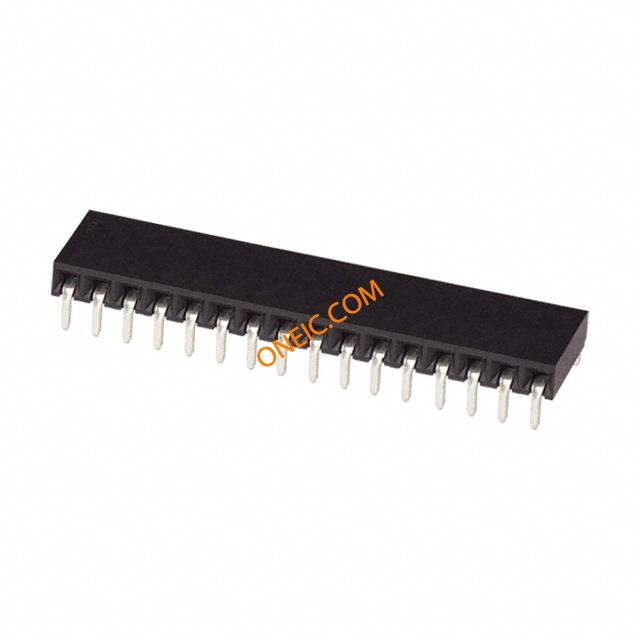

1-535676-5

点击放大查看

1-535676-5

制造商
TE Connectivity Ltd.
描述Conn Socket Strip SKT 16 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Receptacles CONN RECEPT 16POS .100 RT/ANG AU Headers & Wire Housings 16 POS RECEPTACLE 1540 .100 inch AMPMODU Receptacles Product Highlights:ReceptacleMod IINumber of Positions = 16Number of Rows = SingleStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal,
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU标准包装规格14
产品类别Headers & Wire Housings标准包装数量Rail / Tube
工厂包装数量14

合规参数

RoHSContains lead / RoHS non-compliant

电气参数

最大额定电流2 A

机械参数

颜色Black间距2.54 mm
包装方式Tube端接方式Solder
触头类型Female Socket安装类型Through Hole, Right Angle
连接器类型Receptacle接触镀层Gold Over Nickel
排数1触头材料Phosphor Bronze
壳体材料Polycyclohexylenedimethylene Terephthalate (PCT)端接样式Through Hole
第一触头极性Socket (Female)触点数16
位数16接触镀层厚度30µin (0.76µm)

产品信息

类型Socket Strip连接器性别SKT
系列AMPMODU MOD II产品子类型Receptacles / Sockets - PCB
加载位置数All

环境参数

工作温度- 55 C to + 125 C

文档与媒体

在线文档
1-535676-5?RQPN=1-535676-5
