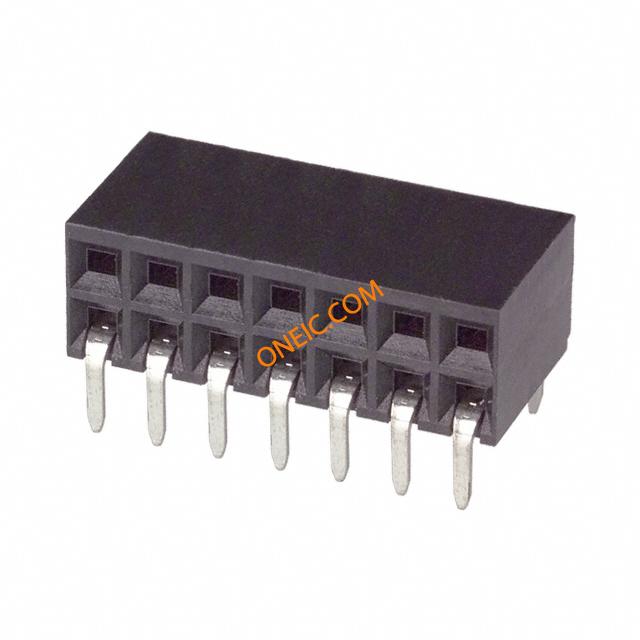

1-535512-7

制造商	TE Connectivity Ltd.
描述	Conn Socket Strip SKT 14 POS 2.54mm Solder RA Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 14POS .100 RT/A DUAL Headers & Wire Housings MODII HORIZ 14P 1280 Conn Socket Strip SKT 14 POS 2.54mm Solder RA Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IINumber of Positions = 14Number of Rows = DualStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 14 MODII HORZ DR CE EESS .100
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Rail / Tube	工厂包装数量	32

合规参数

RoHS	Contains lead / RoHS non-compliant	MIL-C-55032	否
标准编号	CSA LR7189, UL E28476	材料阻燃等级	UL 94V-0

电气参数

额定电压	250 V	接触电阻	12
输入电阻	5000	钳位电压	750
额定交流电压	333	连接器阻抗	不带
最大额定电流	2 A

机械参数

颜色	Black	间距	2.54 mm
高度	6.05 mm [ .238 in ]	包装方式	Tube
壳体颜色	黑色	排间距	0.100" (2.54mm)
端接方式	Solder	触头类型	Female Socket
安装类型	Through Hole, Right Angle	连接器类型	Receptacle
接触镀层	Gold Over Nickel	安装样式	标准
排数	2	压力（PSI）	标准, 高
端子样式	短点	连接器用途	侧, 闭合入口
插入件材料	磷青铜	触头材料	Phosphor Bronze
壳体材料	Polycyclohexylenedimethylene Terephthalate (PCT)	包装数量	32
面板安装类型	通孔 - 焊接	连接器间距	.31
端接样式	Through Hole	触点数	14
接触件尾部长度	2.92	位数	14
衬套/护套类型	不带	兼容外壳尺寸（如TM-700等）	与接头配合
端子柱长度	3 mm [ .1 in ]	接触镀层厚度	30µin (0.76µm)

产品信息

备注	TE 建议使用接合金或带双层电镀母端配件的双层电镀公端。, 停止使用最小为 6.50 [.256] 的正极插针，以防止行与行之间发生短路。	类型	Socket Strip
连接器性别	SKT	系列	AMPMODU MOD II
可密封	否	可堆叠	是
产品子类型	Receptacles / Sockets - PCB	装配配置	板支座
加载位置数	All

环境参数

测试温度	是	工作温度	- 55 C to + 125 C
封装热阻	1.4 – 2.4 mm [ .055 – .094 in ]
