1-534998-3

制造商	TE Connectivity Ltd.
描述	Conn Socket Strip RCP 26 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 26POS .100 VERT DUAL Headers & Wire Housings 26P LOW PRO RECPT 1020 Conn Socket Strip RCP 26 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IVNumber of Positions = 26Number of Rows = DualLow ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, ReceptacleAssembly;GlassFilledPolyester;PhosphorBronze;Vertical;26;2A 26 MODIV VRT DR CE 100/125
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Rail / Tube	工厂包装数量	17

合规参数

RoHS	Contains lead / RoHS non-compliant	标准	ULListed,CSACertified
MIL-C-55032	否	认证机构	CSA,UL
标准编号	CSA LR7189, UL E28476	材料阻燃等级	UL94V-0

电气参数

额定电压	250 V	接触电阻	12Milliohms
输入电阻	5000	钳位电压	750
额定交流电压	333	连接器阻抗	不带
最大额定电流	2 A	绝缘电阻	5000Megohms
直流开关电压	750V

机械参数

颜色	Black	间距	2.54 mm
高度	5.03 mm [ .198 in ]	镀层	BrightTin-LeadoverNickel(Solder)
包装方式	Tube	壳体颜色	黑色
出线方向	LowProfile	引脚样式	圆形, 圆形
排间距	0.100" (2.54mm)	端接方式	Solder
触头类型	Female Socket	引脚长度（针脚）	0.125"
安装类型	Through Hole	行程角度	Straight
连接器类型	Receptacle, Bottom or Top Entry	接触镀层	Gold Over Nickel
安装样式	低	排数	2
压力（PSI）	标准	端子样式	短点
电路板厚度	0.062in.	连接器用途	闭合入口, 顶部
插入件材料	磷青铜	触头材料	Phosphor Bronze
壳体材料	Polycyclohexylenedimethylene Terephthalate (PCT)	总长度	1.3"
包装数量	17	面板安装类型	通孔 - 焊接
主要材料	InterconnectSystem	插针孔直径	0.1"
端接样式	Through Hole	触点数	26
接触件尾部长度	3.18	位数	26
衬套/护套类型	不带	兼容外壳尺寸（如TM-700等）	与接头配合
触点镀层	Gold(30)	柱体长度（配合）	0.125in.
安装孔直径	0.035"	端子柱长度	3.77 mm [ .148 in ]
接触镀层厚度	30µin (0.76µm)

产品信息

备注	TE 建议使用接合金或带双层电镀母端配件的双层电镀公端。, 为了获得最小接合柱长度，在最大触点尺寸上增加 .51 [.020]（不包含斜面上的柱引线）。	类型	Socket Strip
连接器性别	RCP	系列	AMPMODU MOD IV
可密封	否	可堆叠	是
制造商全称	AMPMODU/MODIVSeries	产品子类型	Receptacles / Sockets - PCB
装配配置	板支座	矩阵（列×行）	0.100in.x0.100in.
加载位置数	All

环境参数

测试温度	否	工作温度	- 65 C to + 105 C
封装热阻	1.57 mm [ .062 in ]

相关型号

1-103168-1

te connectivity / amp

Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 26POS 30AU Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 26Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 26 MODII HDR DRST SHRD .100CL

¥16.7760

详情

1-104351-3

te connectivity / amp

Conn Unshrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Tube .100 inch AMPMODU Headers CONN HDR BRKWAY 26POS DUAL 15AU Headers & Wire Housings 26 MODII HDR DRST B/A W/HD .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = StandardNumber of Rows = DualNumber of Positions = 26Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 26 MODII HDR DRST B/A W/HD

¥4.8240

详情

暂无图片

1-104350-3

te connectivity / amp

Conn Unshrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole CONN HDR BRKWAY 26POS DUAL 30AU

详情

1-104355-3

te connectivity / amp

Conn Unshrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole Headers & Wire Housings OBSOLETE CONN HDR BRKWAY 26POS R/A DUAL

详情

1-146255-3

te connectivity / amp

Conn Unshrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 26POS .100 DUAL

详情

暂无图片

146220-5

te connectivity / amp

25/26 MODII HDR DRST B/A 100CL CONN HDR BRKWAY 25/26POS DUAL

详情

1-146130-2

te connectivity / amp

Conn Unshrouded Header HDR 26 POS 2.54mm Solder ST SMD .100 inch AMPMODU Headers CONN HDR BRKWAY 26POS DUAL SMD Headers & Wire Housings 26 PIN SMD HEADER 720 Conn Unshrouded Header HDR 26 POS 2.54mm Solder ST SMD Product Highlights:HeaderHeader Type = BreakawayNumber of Rows = DualNumber of Positions = 26Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 26 MODII HDR DRST SFMNT B/A

¥12.3840

详情

1-87579-0

te connectivity / amp

Conn Shrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER RTANG 26POS PCB TIN Headers & Wire Housings SHROUDED RA DUAL 26 detent windows Conn Shrouded Header HDR 26 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 26Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 26 MODII HDR DRRA SHRD .100CL

¥14.1840

详情

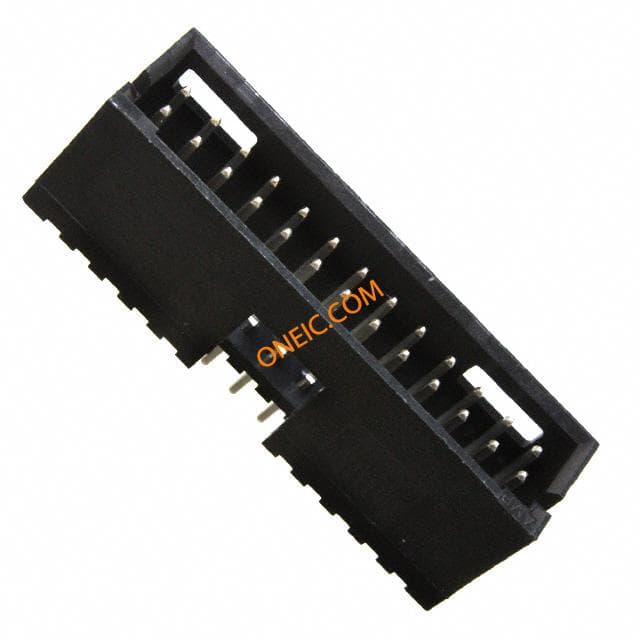

5-87589-9
