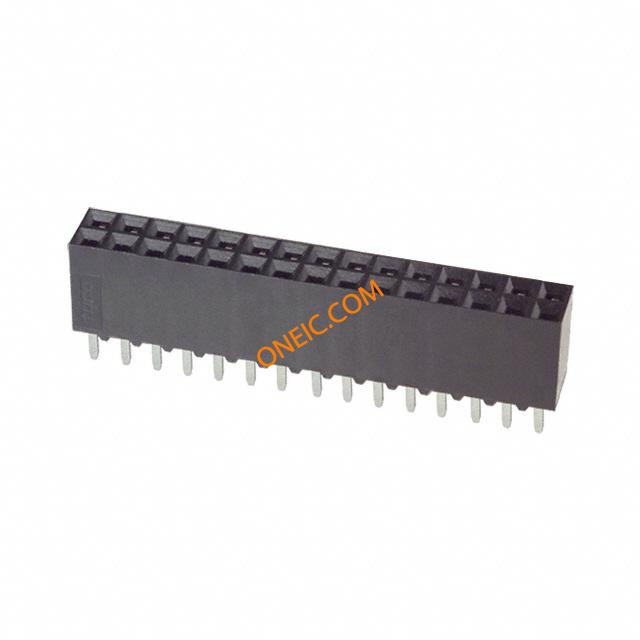

1-534206-5

制造商	TE Connectivity Ltd.
描述	Conn Socket Strip SKT 30 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 30POS .100 VERT DUAL Headers & Wire Housings REC 2X15P VRT T/H 900 Conn Socket Strip SKT 30 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IINumber of Positions = 30Number of Rows = DualStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 30 MODII VRT DR CE 100/115
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Rail / Tube	工厂包装数量	15

合规参数

RoHS	Contains lead / RoHS non-compliant	MIL-C-55032	否
标准编号	CSA LR7189, UL E28476	材料阻燃等级	UL 94V-0

电气参数

额定电压	250 V	接触电阻	12 mohm
输入电阻	5000	额定交流电压	333
最大额定电流	2 A

机械参数

颜色	Black	深度	5.03 mm
间距	2.54 mm	高度	8.64 mm
包装方式	Tube	壳体颜色	黑色
引脚样式	正方形	排间距	0.100" (2.54mm)
端接方式	Solder	触点形式	Female Socket
触头类型	Female Socket	引脚间距	0.100" (2.54mm)
外壳颜色	Black	安装类型	Through Hole
连接器类型	Receptacle	接触镀层	Gold Over Nickel
安装样式	Through Hole	排数	2
压力（PSI）	标准	端子样式	短点
连接器用途	闭合入口, 顶部	插入件材料	磷青铜
触头材料	Phosphor Bronze	壳体材料	Polycyclohexylenedimethylene Terephthalate (PCT)
总长度	38.1 mm	包装数量	15
面板安装类型	通孔 - 焊接	端接样式	Through Hole
触点数	30	接触件尾部长度	2.92
位数	30	衬套/护套类型	不带
兼容外壳尺寸（如TM-700等）	与接头配合	端子柱长度	2.92 mm [ .115 in ]
接触镀层厚度	30µin (0.76µm)	每排/每行位置数	All

产品信息

备注	TE 建议使用接合金或带双层电镀母端配件的双层电镀公端。, 为了获得最小接合柱长度，在最大触点尺寸上增加 .51 [.020]（不包含斜面上的柱引线）。	类型	Socket Strip
连接器性别	SKT	系列	AMPMODU MOD II
可密封	否	可堆叠	是
产品子类型	Receptacles / Sockets - PCB	输出配置	Through Hole
装配配置	板支座	加载位置数	All

环境参数

测试温度	否	工作温度	- 65 C to + 105 C
封装热阻	1.57 mm [ .062 in ]

文档与媒体

在线文档

1-534206-5?RQPN=1-534206-5
