1-5229913-1

点击放大查看

1-5229913-1

制造商
TE Connectivity Ltd.
描述Conn IEEE 488 RCP 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Individual 2.16 [.085] IDC Connectors KIT, RCPT, 50 POS, B SLOT CHAMP-LOK IDC Receptacle kit B Slot 50P I/O Connectors AMP-CHAMP RCPT W/STR RLF Conn IEEE 488 RCP 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Individual Product Highlights:Connector KitNumber of Positions = 50Product Category = ConnectorsReceptacleNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics MINI D RIBBON CONN, RCPT, 50POS, IDC/IDT CHAMPIDCCable-to-CableReceptacleKit;50Position;26-24AWG;withDustCover
分类
连接器解决方案圆形连接器工业圆形连接器
对参数有疑问？问 AI 助手

商业参数

产品Kits交货时间28 Days
子类别Connector Interface产品类别Connectors
标准包装数量Bulk工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant海关税号85366910
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant

机械参数

颜色Black间距2.16 mm
重量0.023包装方式Individual
电缆类型7 Strand, Solid导线线规24-26AWG(Solid),24AWG(Stranded)
铜缆类型B屏蔽类型No
端接方式IDC第二连接器Without
外壳颜色Blue安装类型Cable Mount
行程角度Straight电缆直径0.35-0.425"
连接器类型Receptacle接触镀层Gold (30) over Nickel (50), Gold Flash over Palladium Nickel over Nickel
法兰特征Insert, Threaded (4-40)安装样式Free Hanging
排数2连接器样式Outer Shroud Contacts
外形（宽 x 高）Standard触头材料Copper Alloy
壳体材料PPP总长度3.28"
包装数量Individual Kit面板安装类型Without
主要材料Industrial插针孔直径0.085"
端接样式Cable触点数50
接触件端接:IDC / IDT绝缘直径0.045"
位数50接触镀层厚度30µin (0.76µm)
线规或范围 - AWG0.20² [24]线规或范围 - mm²0.51-0.40 [24-26]
第一连接器安装类型:Cable电缆外径（最小）8.89 – 10.80 [0.350 – 0.425]

产品信息

类型IEEE 488连接器性别RCP
系列CHAMP IDC产品特性Assembly Kit, Backshell, Cable Clamp, Dust Cover, Mounting Hardware
制造商全称CHAMPIDC产品子类型Connector Kit
适用产品/相关产品1-229913-1

环境参数

保护功能With

文档与媒体

在线文档
TE.Connect?C=1&M=BYPN&TCPN=1-5229913-1&RQPN=1-5229913-1
在线文档
1-5229913-1?RQPN=1-5229913-1

相关型号

556039-1

556039-1

te connectivity / amp

Conn IDC Connector M 50 POS IDT Cable Mount Tray 2.16 [.085] IDC Connectors PLUG ASSY,50POS,SC/LK,CHAMP-LK I/O Connectors PLUG 50P SCREW LOCK large insulation Conn IEEE 488 PL 50 POS 2.16mm IDT ST Cable Mount 50 Terminal 1 Port Tray Conn IEEE 488 PL 50 POS 2.16mm IDT ST Cable Mount 50 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 50Standard ProfilePlugNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics

¥29.5800
详情
5552116-1

5552116-1

te connectivity / amp

Conn IEEE 488 PL 50 POS 2.16mm Solder ST Thru-Hole 50 Terminal 1 Port 2.16 [.085] Printed Circuit Board Connectors CONN PLUG CHAMP 50POS VERT I/O Connectors PLUG 50P SCREW LOCK vertical mount Conn IEEE 488 PL 50 POS 2.16mm Solder ST Thru-Hole 50 Terminal 1 Port Product Highlights:PlugNumber of Positions = 50PCB Mount Style = VerticalStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics CONNECTOR,PLUG,CHAMP-LOK,50POSITION,PCB,VERTICAL 50 Position Dual Row Straight Plug Through Hole PCB Connector TE Connectivity CHAMP 系列 50路 直 2.16mm节距 印刷电路板安装 印刷电路板插座, Champ 连接器 ASSY, PLUG, 50 POS, VERT MTG

¥24.4120
详情
暂无图片

554337-1

te connectivity / amp

EMI PLUG ASSY, 50 POS, E SLOT CONN CHAMP PLUG 50POS .085 IDC Headers & Wire Housings EMI PLUG ASSY, 50 POS, E SLOT

¥14.0760
详情
229974-4

229974-4

te connectivity / amp

Conn IDC Connector M 50 POS IDT RA Cable Mount Tray 2.16 [.085] IDC Connectors CONN CHAMP 50POS PLUG SCREW GRAY Conn IDC Connector M 50 POS 2.16mm IDT RA Cable Mount Tray Conn IDC Connector M 50 POS 2.16mm IDT RA Cable Mount Tray Product Highlights:ConnectorNumber of Positions = 50Standard ProfilePlugNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics ASSY, PLUG, 50 POS, B SLOT

¥11.2200
详情
554758-1

554758-1

te connectivity / amp

Conn IEEE 488 PL 50 POS 2.16mm Press Fit ST Thru-Hole 50 Terminal 1 Port Headers & Wire Housings PLUG 50P EDGE MNT self retained term 2.16 [.085] Printed Circuit Board Connectors PLUG ASSY, 50 POSN, ACTION PIN Conn IEEE 488 PL 50 POS 2.16mm Press Fit ST Thru-Hole 50 Terminal 1 Port Product Highlights:PlugNumber of Positions = 50PCB Mount Style = VerticalStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics

¥35.2240
详情
552390-1

552390-1

te connectivity / amp

Conn IEEE 488 PL 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Tray 2.16 [.085] IDC Connectors CONN CHAMP 50 POS PLUG SCREW I/O Connectors PLUG 50P SCREW LOCK thick flange Conn IEEE 488 PL 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 50Standard ProfilePlugNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics TE Connectivity CHAMP-LOK 系列 2行 50路 2.16mm节距 公 IDC 连接器 , 电缆安装 ASSY, PLUG, 50 POS, E SLOT

¥13.5320
详情
229974-1

229974-1

te connectivity / amp

Conn IEEE 488 PL 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Tray 2.16 [.085] IDC Connectors CONN CHAMP 50 POS PLUG SCREW I/O Connectors PLUG 50P SCREW LOCK thick flange Conn IEEE 488 PL 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 50Standard ProfilePlugNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics MINI D RIBBON CONN, PLUG, 50POS, IDC/IDT Connector,IDC;50-PinPlug;Unshielded;4-40Holes;B-Slot;RoHS ASSY, PLUG, 50 POS, B SLOT

¥10.6080
详情
552173-1

552173-1

te connectivity / amp

Conn IEEE 488 PL 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Tray 2.16 [.085] IDC Connectors ASSY, PLUG, 50 POS, C SLOT Headers & Wire Housings PLUG 50P SCREW LOCK 22AWG solid/stranded Conn IEEE 488 PL 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Tray Product Highlights:ConnectorNumber of Positions = 50Standard ProfilePlugNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics MINI D RIBBON CONN, PLUG, 50POS, IDC/IDT CHAMPIDCConnector;Plug,50Position;ScrewLock TE Connectivity CHAMP-LOK 系列 50路 2.16mm节距 公 IDC 连接器 , 电缆安装

¥15.3680
详情
229378-1

229378-1

te connectivity / amp

Hand Tool Assembly And Die Assembly Hand Tools ASSY MI-1TOOL 14-50P ASSY, MI-1 TOOL,STD 14-50 POSN Assy, MI-1 Tool,Std 14-50 Posn Standard 14-50 Position MI-1 Assembly Tool

¥14407.9080
详情
553913-1

553913-1

te connectivity / amp

Conn IDC Connector M 50 POS 2.16mm IDT RA Cable Mount Bulk 2.16 [.085] IDC Connectors KIT, PLUG, 50 POSN, B SLOT I/O Connectors KIT PLUG 50P CHAMP Conn IEEE 488 PL 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Bag Conn IEEE 488 PL 50 POS 2.16mm IDT RA Cable Mount 50 Terminal 1 Port Bag Product Highlights:Connector KitNumber of Positions = 50Product Category = ConnectorsPlugNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics

¥19.1760
详情
553444-4

553444-4

te connectivity / amp

Conn IEEE 488 PL 50 POS 2.16mm Press Fit ST Thru-Hole 50 Terminal 1 Port Headers & Wire Housings PLUG 50P EDGE MNT w/ACTION PIN 2.16 [.085] Printed Circuit Board Connectors ASSY PLUG,50 POSN, ACTION PIN Conn IEEE 488 PL 50 POS 2.16mm Press Fit ST Thru-Hole 50 Terminal 1 Port Product Highlights:PlugNumber of Positions = 50PCB Mount Style = VerticalStandard OrientationStandard ProfileSearch Keywords:intermateable, high density, wave solder, edge connector, vertical mount connector, insulation displacement, CHAMP-LOK, shielded, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, pcb connectors, AMPHENOL, Centronics CONNECTOR, ASSY PLU, 50 WAY PLUG ASSY,ACTION PIN,CHAMP-LOK

¥24.9560
详情
5229911-1

5229911-1

te connectivity / amp

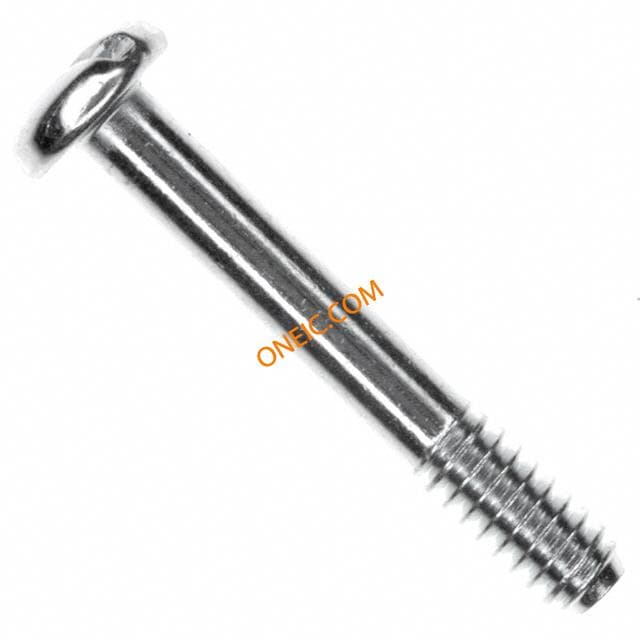

Connector Accessories Captive Pan Head Screw 2.16 [.085] Accessories and Hardware CONN JACKSCREW CAPTIVE #4-40 Screw Captive pan-head 4-40 CHAMP Screws & Fasteners 4-40 MOUNTING SCREW Connector Accessories Captive Pan Head Screw Product Highlights:Captive Pan Head ScrewCable-to-Cable Application, Panel Mount Application, PC Board-to-Cable ApplicationScrew Length = 19.05 mmThread Length = 6.35 mmSearch Keywords:CHAMP, NIC, Network Interface Cards, PC Cards, ribbon cable, AMPHENOL, Centronics CHAMPIDCScrewLockHardwareKit;2RequiredperAssembly TE Connectivity UNC 4-40 槽式 Screw SCREW,PAN HD,''CHAMP PACKAGING

¥0.2863
详情
553602-1

553602-1

te connectivity / amp

Conn SCSI PL 50 POS 1.27mm IDT RA Cable Mount 50 Terminal 1 Port Tray 2.16 [.085] IDC Connectors 50 PIN CHAMP LATCH PLUG-SCREW I/O Connectors PLUG 50P SCREW LOCK low profile plastic Conn SCSI PL 50 POS 1.27mm IDT RA Cable Mount 50 Terminal 1 Port Tray Product Highlights:Connector50 PositionsProduct Category = ConnectorsPlugNot ShieldedSearch Keywords:self-extinguishing housing, integral latching system, 0.8mm, .050, .085 Centerline Miniature Ribbon Connectors (CHAMP), ribbon cable, input/output, discrete wire, AMPHENOL, Centronics MINI D RIBBON CONN, PLUG, 50POS, IDC/IDT Connector,IDC;50-PinPlug;Unshielded;4-40Holes;Low-Profile;RoHS PLUG ASSY,50 POSN,SCR LK,L PF

¥40.6640
详情
5552561-3

5552561-3

te connectivity / amp

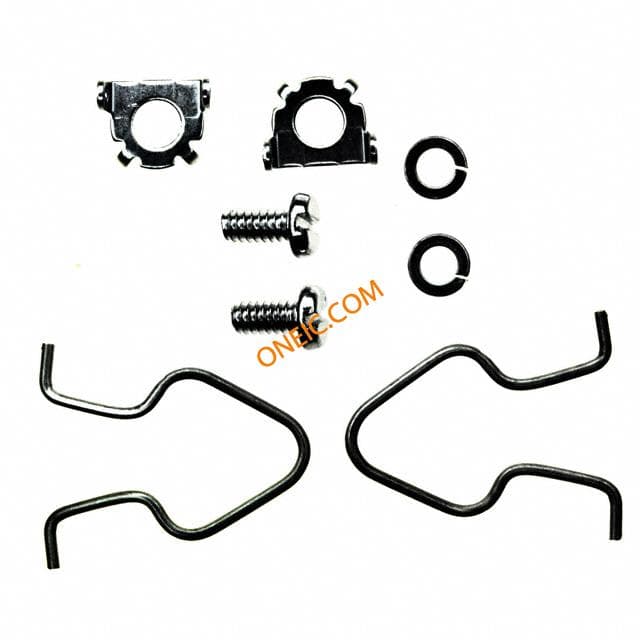

Connector Accessories Hardware Kit Ball Lock Stainless Steel/Carbon Steel Bag 2.16 [.085] Accessories and Hardware CONN CHAMP BAIL LOCK KIT Hardware Kit, Bail lock CHAMP Headers & Wire Housings 085 IN. BAIL LOCK Connector Accessories Hardware Kit Ball Lock Stainless Steel/Carbon Steel Bag Product Highlights:Hardware KitsHardware Type = Bail LockRight Angle Mount AngleCable-to-Cable Application, PC Board-to-Cable ApplicationSearch Keywords:CHAMP, NIC, Network Interface Cards, PC Cards, ribbon cable, AMPHENOL, Centronics HardwareKit,CHAMPIC,BailLock TE Connectivity 5552561系列 硬件套件, 使用于180 度应力消除盖、ACTION PIN 连接器、CHAMP 闩锁薄型连接器、直角印刷电路板连接器 HDWARE ASSY KIT
