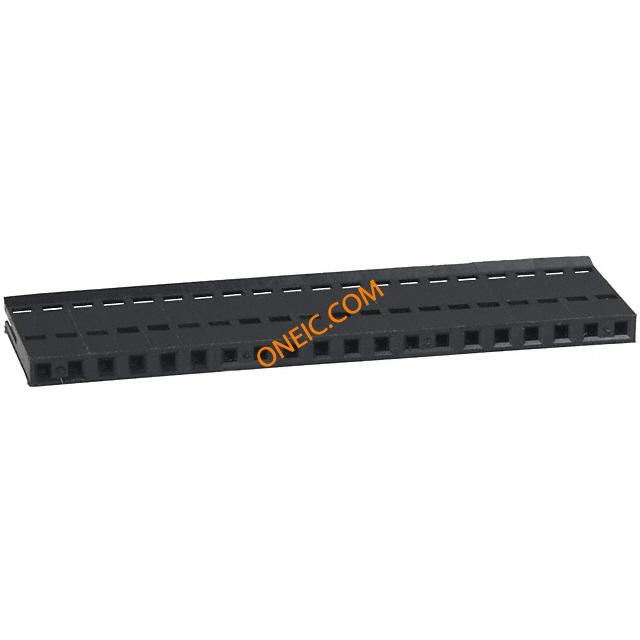

点击放大查看

1-487378-9

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors CONN RECEPT 20POS .100 SLIMLINE FFC & FPC Connectors 100X100 FFC HSG REC 1X20P Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = SlimlineNumber of Positions = 20Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector HOUSING, RECEPTACLE, FFC, 2.54MM, 20WAY 020 HOUSING FFC RCPT 100CL SR
分类	连接器解决方案FFC/FPC连接器FFC/FPC连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	14873789	产品类别	FFC & FPC Connectors
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	海关税号	85369010
无铅定义	Not relevant for lead free process	RoHS/ELV合规状态	RoHS compliant, ELV compliant
材料阻燃等级	Yes

电气参数

额定电压

300V

最大额定电流

机械参数

颜色	Black	间距	2.54 mm
重量	0.02	包装方式	Bulk
第二连接器	Without	安装类型	Straight
连接器类型	Slimline	接触镀层	:-
安装样式	Cable	排数	1
连接器用途	Receptacle	触头材料	:-
触点位置	:Single Side	壳体材料	Thermoplastic
总长度	2.54 [0.100]	安装特性	Without
面板安装类型	Without	FFC/FCB厚度	0.05-0.13mm
配接方向	Without	触点数	20
接触件端接	:-	位数	20

产品信息

类型	Housing	连接器性别	RCP
系列	:Slimline	产品子类型	Housing
连接类型	FFC Cable

环境参数

工作温度

-65°C ~ 105°C
