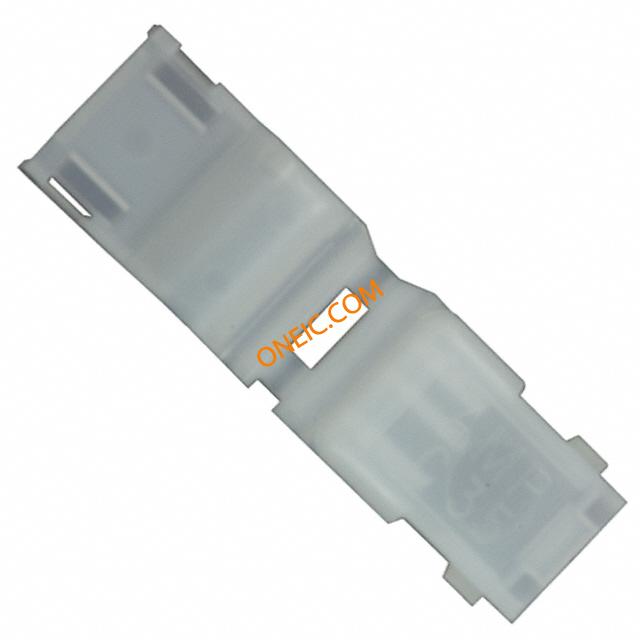

1-480306-1
| 制造商 | |
| 描述 | Conn Housing RCP 1 POS Crimp ST Loose Piece Terminals .25 INSULATED FLAG FASTON Uninsulated Receptacles & Housings CONN RECPT FLG HOUSING NATURAL Conn Housing RCP 1 POS Crimp ST Loose Piece Product Highlights:HousingNumber of Circuits = 1Tab Fit = 6.35 mmNylon MaterialHousing Color = NaturalSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING FASTON 250 INS POD NYLON NAT |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | A27909 |
| 产品类别 | Terminals | 标准包装数量 | Bulk |
| 工厂包装数量 | 8000 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-2 |
机械参数
| 颜色 | Natural | 深度 | 18.59 mm |
| 间距 | Not Required mm | 高度 | 8 mm |
| 长度 | 18.59 mm | 材料（通用） | Nylon |
| 包装方式 | Bulk | 插片宽度 | 6.35 [.250] |
| 壳体颜色 | 土黄色 | 绝缘类型 | Insulated |
| 导线线规 | 22-16 | 外壳样式 | With |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 螺柱/焊片尺寸 | 1/4 in | 端子尺寸 | 0.250" (6.35mm) |
| 端子类型 | Quick Connect, Disconnect | 连接器类型 | Receptacle |
| 排数 | 1 | 封装形式 | Receptacle Housing |
| 壳体材料 | Nylon | 总长度 | FASTON .250 |
| 包装数量 | Loose Piece | 触点数 | 1 |
| 位数 | 1 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 样式 | Housing | 连接器性别 | RCP |
| 系列 | 250 | 制造商全称 | AMP |
| 产品子类型 | Housing | 专有名称 | AMPIP |
| 电路数 | 1 | 适用产品/相关产品 | 0.250" (6.35mm) Quick Connects, Flag |
