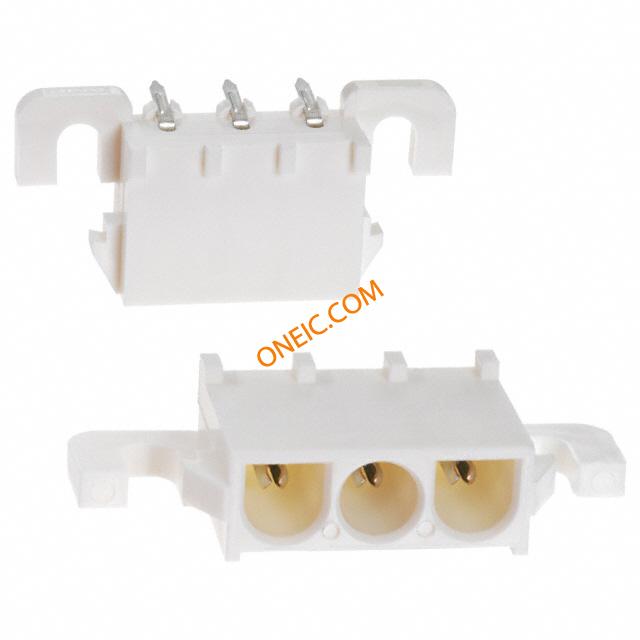

1-350943-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 3 POS 6.35mm Solder RA Thru-Hole 3 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 3POS .250 RTANG TIN Pin & Socket Connectors 3P STD R/A HDR UL94V-0 Conn Power HDR 3 POS 6.35mm Solder RA Thru-Hole 3 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HEADER, RIGHT ANGLE, SINGLE ROW, 3 WAY HEADERASSEMBLY,UNIVERSALMATE-N-LOK,3POSITION,RIGHTANGLE,NYLON,WHITE Socket; wire-board; male; 6.35mm; PIN:3; Pin layout:1x3; THT TE Connectivity Universal MATE-N-LOK 系列 6.35mm节距 3路 直角 PCB 针座, 焊接端接, 19A , 通孔 03P UMNL HDR ASSY R/A 94VO |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 量程（°/s） | :TE - Universal MATE-N-LOK Series | 额定电压 | 600 V |
| 最大额定电流 | 19 A | 最小供电电压 | 600VAC |
机械参数
| 颜色 | White | 深度 | 17.27 mm |
| 间距 | 6.35 mm | 高度 | 9.14 mm |
| 重量 | 0.002 | 包装方式 | Bulk |
| 方向 | angled 90° | 端接方式 | Solder |
| 触头类型 | Male Pin | 柱间距 | 6.35mm |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin | 紧固类型 | Locking Ramp |
| 安装样式 | Through Hole | 排数 | 1 |
| 锁定特性 | lock | 材料表面处理 | :- |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyamide (PA) |
| 总长度 | 37.97 mm | 主要材料 | InterconnectSystem |
| 连接器 - 电缆 | socket | 第一触头极性 | Pin (Male) |
| 连接器颜色 | :White | 触点数 | 3 |
| 接触件端接 | :Solder | 位数 | 3 |
| 第一连接器安装类型 | :PC Board | 第一连接器安装特征 | 1x3 |
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | Universal Mate-N-Lok | 制造商全称 | MATE-N-LOK |
| 产品子类型 | Receptacle Housings | 适配器系列 | Universal MATE-N-LOK |
| 端口数 | 1 Port | 单元数量 | 1 |
| 加载位置数 | All | ||
