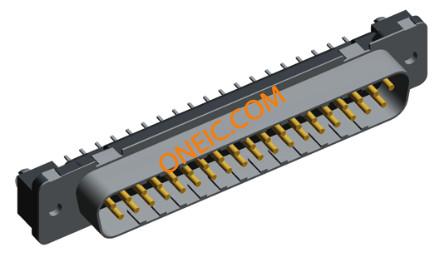

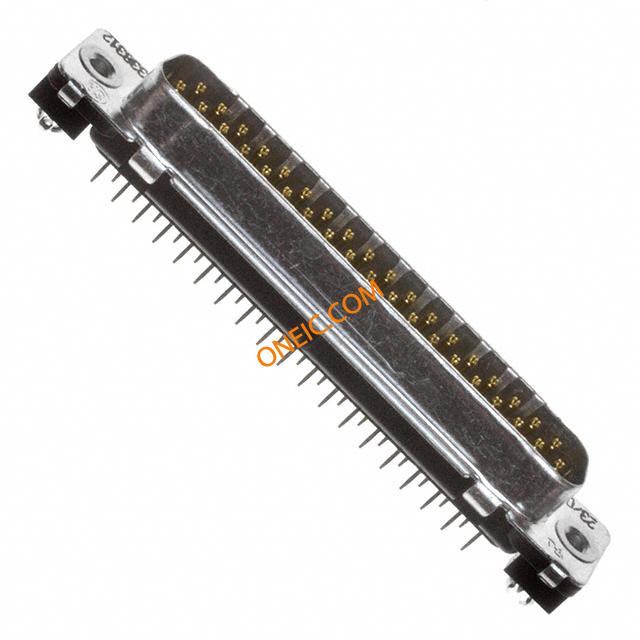

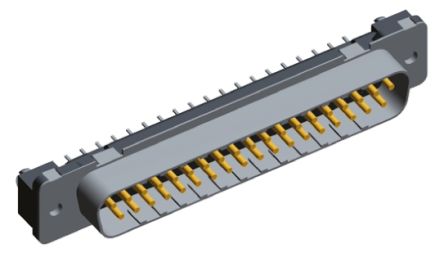

1-338312-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn D-Subminiature PIN 37 POS 2.76mm Solder ST Thru-Hole 37 Terminal 1 Port D-Sub Standard Connectors 37P HDP20 PLUG ASSY Standard Board Mount Connectors CONN D-SUB PLUG 37POS VERT GOLD AMPLIMITE HDP-20 d-sub PCB plug, 37 pin Conn D-Subminiature PIN 37 POS 2.76mm Solder ST Thru-Hole 37 Terminal 1 Port Product Highlights:Number of Positions = 37PlugPCB Mount Angle = VerticalProduct Series = HDP-20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub AMPLIMITEHDP-20d-subPCBplug,37pin TE Connectivity AMPLIMITE HDP-20 系列 2.76mm 节距 37 路 直向 通孔安装 PCB D-sub 连接器 插头 |
| 分类 |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | Trays |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| 认可国家 | DIN 41652 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 接地方式 | Without | 最大额定电流 | 6A |
机械参数
| 颜色 | Black | 深度 | 12.6mm |
| 间距 | 2.76 mm | 宽度 | 11.7mm |
| 长度 | 69.4mm | 密封型 | No |
| 镀层 | Tin | 材料（通用） | Phosphor Bronze |
| 包装方式 | Tray | 外壳尺寸 | 4 |
| 方向 | 直 | 端接方式 | Solder |
| 触头类型 | Signal | 第二连接器 | With |
| 安装类型 | Through Hole | 外壳镀层 | Tin |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (4-40) | 接地类型 | Without |
| 安装样式 | Through Hole | 排数 | 2 |
| 外壳材料（壳体） | Steel | 电路板厚度 | 0.063 [1.60] |
| 连接器样式 | D-Sub | 插入件材料 | Tin |
| 锁定特性 | Threaded Insert, 4-40 UNC | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester GF | 面板安装类型 | Without |
| 尺寸/外形 | 69.4 x 11.7 x 12.6mm | 接地凹痕 | Without |
| 端接样式 | Solder | 连接器颜色 | None |
| 触点数 | 37 | 位数 | 37 |
| 外壳尺寸-插件 | Full Metal | 外壳材料及表面处理 | Steel, Tin Plated |
| 端子柱长度 | 3.20 [0.126] | 接触镀层厚度 | Flash |
| 外壳尺寸，连接器布局 | 4 (DC, C) | ||
产品信息
| 备注 | Connector has boardlocks which have to be clinched onto the PCB for a perfect g | 类型 | D-Subminiature |
| 连接器性别 | PIN | 系列 | HDP-20 |
| 产品特性 | Board Lock, Grounding Indents | 制造商全称 | AMP |
| 其他规格 | 4-40 UNC 螺纹插件、板锁 | ||
环境参数
| 工作范围 | Level 2 | 工作温度 | -55°C ~ 105°C |
