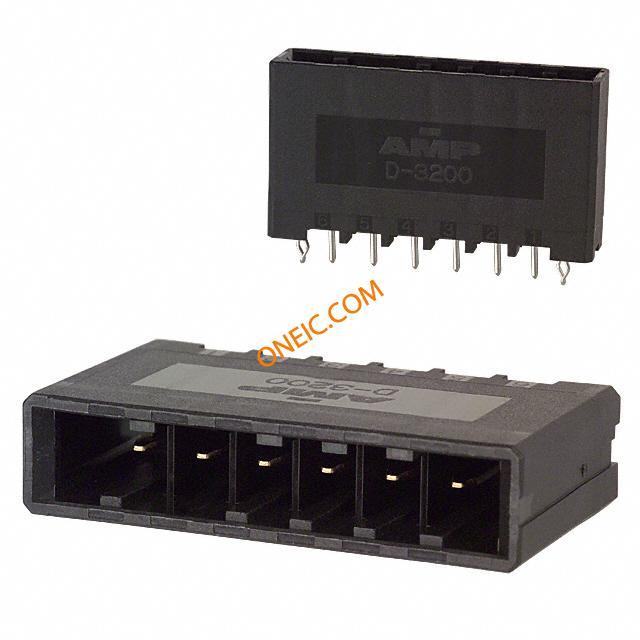

点击放大查看
1-316133-2
| 制造商 | |
| 描述 | Conn Power M 6 POS 5.08mm Solder ST Thru-Hole 6 Terminal 1 Port Tube Dynamic Series Connectors CONN HDR 6POS VERT KEY-X 15GOLD Conn Power M 6 POS 5.08mm Solder ST Thru-Hole 6 Terminal 1 Port Tube Product Highlights:Terminate To Printed Circuit BoardHeaderTabNumber of Positions = 6Mount = Board MountSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, DYNAMIC D-3200 HDR ASSY 6P V |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 其他名称 | A29634 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定交流电压 | 600 | 最大额定电流 | 10/Contact A |
| 最小供电电压 | 600VAC | ||
机械参数
| 颜色 | Black | 深度 | 9.35 mm |
| 间距 | 5.08 mm | 高度 | 21.6 mm |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 柱间距 | 5.08 [.200] |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold (15) |
| 安装样式 | Thru Hole | 排数 | 1 |
| 触头材料 | Copper Alloy | 壳体材料 | Nylon |
| 总长度 | 39.4 mm | 包装数量 | Tube |
| 触点数 | 6 POS | 端接表面处理 | Gold over Nickel |
| 位数 | 6 | 接触镀层厚度 | 15µin (0.38µm) |
产品信息
| 备注 | Solder tine section is 1.0 sq. | 类型 | Power |
| 连接器性别 | M | 系列 | D-3200S |
| 产品特性 | Board Lock, Polarizing Key | 钥匙类型 | X |
| 编码、键控 | Yes | 产品子类型 | Header |
| 连接类型 | Printed Circuit Board | 端口数 | 1 Port |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -55C to 105C | 结工作温度 | 105C |
