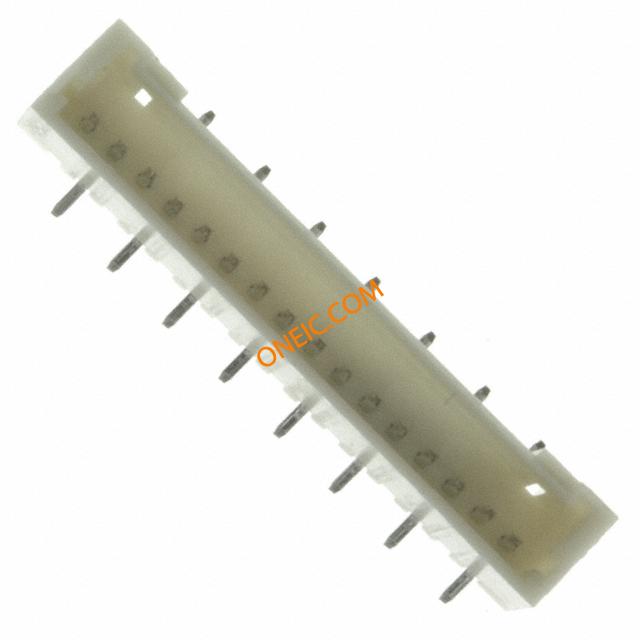

1-292230-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 16 POS 1.5mm Solder ST SMD T/R 1.5mm AMP Mini CT CONN HEADER 16POS VERT SMD TIN Conn Shrouded Header HDR 16 POS 1.5mm Solder ST SMD T/R Product Highlights:Post HeaderConnector Type = DIPNumber of Positions = 16Without Panel AttachmentTerminate To Printed Circuit BoardSearch Keywords:Common Termination, wire-to-board, wire-to-wire, discrete wire, NIC, Network Interface Cards, PC Cards, power, signal, IDC, pcb connectors, 1.5 MINI CT SGL V SMT W/BOSS 1 |
| 分类 |
商业参数
| 其他名称 | A99787CT | 标准包装数量 | Tape & Reel |
合规参数
| RoHS | Lead free / RoHS Compliant | 零件状态 | CSA, UL |
| 无铅定义 | Reflow solder capable to 245°C | UL档案号 | E28476 |
| CSA档案号 | LR 7189-133 | 标准编号 | UL 94V-0, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 开关功能 | With | 供电电压 | 50 |
| 最大额定电流 | 2 | 连接器类型 - 电压输入 | 方柱 |
机械参数
| 颜色 | Beige | 间距 | 1.5 mm |
| 形状 | 矩形 | 宽度 | 4.7 mm [ .185 in ] |
| 高度 | 6.9 mm [ .272 in ] | 长度 | 26.5 mm [ 1.043 in ] |
| 包装方式 | Tape & Reel (TR) | 尾部类型 | 交错 |
| 壳体颜色 | 自然 | 电缆类型 | 分离式导线 |
| 导线线规 | 28 – 24 | 端接方式 | Solder |
| 触头类型 | Male Pin | 极化 | Mounting Boss |
| 触点形状 | Square | 安装类型 | Vertical |
| 连接器类型 | DIP | 接触镀层 | Tin |
| 触点时序 | Without | 安装样式 | Surface Mount |
| 排数 | 1 | 壳体镀层 | Tin |
| 插入件材料 | 黄铜 | 触头材料 | Brass |
| 壳体材料 | Nylon | 总长度 | 1.50 [0.059] |
| 安装特性 | 板锁 | 包装数量 | Tape |
| 面板安装类型 | Without | 尺寸/外形 | 0.50 [.020] |
| 端接样式 | 插针 | 触点数 | 16 |
| 端接表面处理 | 不带 | 绝缘直径 | .85 mm [ .0334 – .041 in ] |
| 位数 | 16 | 触头长度-柱 | 信号（数据） |
| 安装孔直径 | 带有 | 接触件表面处理 - 配合 | 锡 |
| 接触长度 - 配合 | 0.094" (2.40mm) | 表面贴装焊盘尺寸 | Internal |
| 端子柱长度 | 2.4 mm [ .095 in ] | 接触镀层厚度 | 1 µm [ 39.37 µin ] |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 产品特性 | Board Guide | 可密封 | 否 |
| 卷轴尺寸 | 500 | 产品子类型 | Post Header |
| 连接类型 | Printed Circuit Board | 加载位置数 | All |
环境参数
| 工作温度 | -22 – 221 °C [ -30 – 105 °F ] | 封装热阻 | .8 mm [ .031 in ] |
