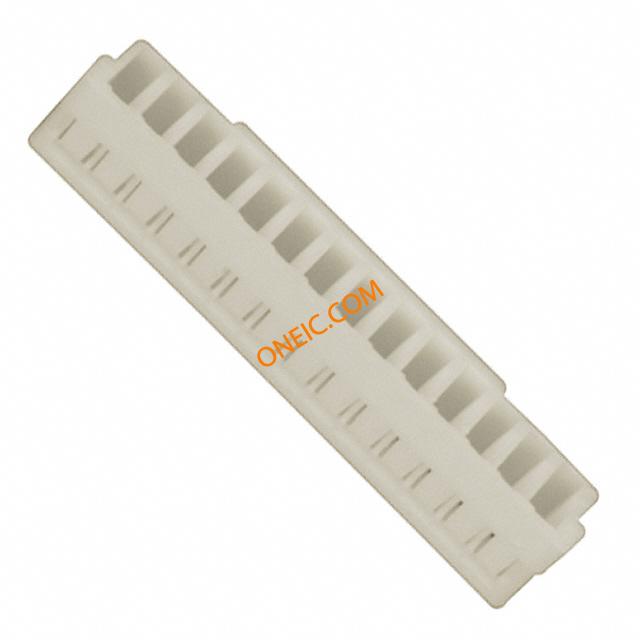

1-179228-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 14 POS 2mm Crimp ST Cable Mount 2mm AMP CT CONN RCPT 14POS SGL CRIMP 2MM Headers & Wire Housings RCPT 14 POS CRIMP 2mm Conn Housing RCP 14 POS 2mm Crimp ST Cable Mount Product Highlights:ConnectorConnector Type = CrimpMating Type = ReceptacleNumber of Positions = 14Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CT CRIMP-2 REC HSG 14P NATURAL |
| 分类 |
商业参数
| 商标名 | Common Termination | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| UL档案号 | E28476 | CSA档案号 | LR 7189 |
| 标准编号 | CSA, UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 供电电压 | 125 VAC, 125 VDC | 输入电阻 | 1000 |
| 连接器阻抗 | 压接 | 最大额定电流 | 4 |
| 保护额定电压（VPR） | 5000 VAC | ||
机械参数
| 颜色 | Natural | 间距 | 2 mm |
| 形状 | 矩形 | 宽度 | .181 in, 4.6 mm |
| 高度 | 6.6 mm [ .26 in ] | 长度 | 30 mm [ 1.181 in ] |
| 包装方式 | Bulk | 壳体颜色 | 自然 |
| 导线线规 | 22-30 AWG | 触头类型 | Female Socket |
| 第二连接器 | Without | 外壳颜色 | Natural |
| 安装类型 | Straight | 连接器类型 | Crimp |
| 安装样式 | Wire | 排数 | 1 |
| 连接器用途 | Receptacle | 壳体材料 | Nylon |
| 包装数量 | 1000 | 面板安装类型 | Without |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 触点数 | 14 | 接触件端接 | Crimp |
| 位数 | 14 | 触头长度-柱 | 信号（数据） |
| 安装孔直径 | 带有 | 中心触点材料 | 2.00 [0.079] |
| 典型触点布局 | 同轴 | 静电放电屏蔽 | 不带 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | AMP CT |
| 可密封 | 否 | 产品子类型 | Connector |
| 连接类型 | Wire | ||
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | -30 – 105 °C [ -22 – 221 °F ] |
文档与媒体
相关型号
1-292133-4
te connectivity / amp
