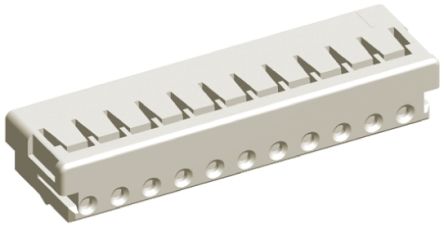

点击放大查看
1-179228-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 11 POS 2mm Crimp ST Cable Mount Headers & Wire Housings RCPT 11 POS CRIMP 2mm 2mm AMP CT CONN RCPT 11POS SGL CRIMP 2MM Receptacle housing, 2mm, 11 way, CT Conn Housing RCP 11 POS 2mm Crimp ST Cable Mount Product Highlights:ConnectorConnector Type = CrimpMating Type = ReceptacleNumber of Positions = 11Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, Receptaclehousing,2mm,11way,CT TE Connectivity AMP CT 系列 1 行 2mm 节距 11 路 直 母 压接连接器外壳 CT CRIMP-2 REC HSG 11P NATURAL |
| 分类 |
商业参数
| 商标名 | Common Termination | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1500 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| UL档案号 | E28476 | CSA档案号 | LR 7189 |
| 标准编号 | CSA, UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 供电电压 | 125 VAC, 125 VDC | 输入电阻 | 1000 |
| 连接器阻抗 | 压接 | 最大额定电流 | 4 |
| 保护额定电压（VPR） | 5000 VAC | ||
机械参数
| 颜色 | Natural | 深度 | 6.6mm |
| 间距 | 2 mm | 形状 | 矩形 |
| 宽度 | 4.6mm | 高度 | 6.6 mm [ .26 in ] |
| 长度 | 24mm | 包装方式 | Bulk |
| 壳体颜色 | 自然 | 导线线规 | 22-30 AWG |
| 方向 | 直 | 触头类型 | Female Socket |
| 第二连接器 | Without | 外壳颜色 | Natural |
| 安装类型 | Straight | 连接器类型 | Crimp |
| 安装样式 | Wire | 排数 | 1 |
| 连接器用途 | Receptacle | 壳体材料 | Nylon |
| 包装数量 | 1500 | 面板安装类型 | Without |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 触点数 | 11 | 接触件端接 | Crimp |
| 位数 | 11 | 触头长度-柱 | 信号（数据） |
| 安装孔直径 | 带有 | 中心触点材料 | 2.00 [0.079] |
| 典型触点布局 | 同轴 | 静电放电屏蔽 | 不带 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | AMP CT |
| 可密封 | 否 | 产品子类型 | Receptacles / Sockets - Housings |
| 连接类型 | Wire | 适用产品/相关产品 | Wire-to-Board Connector |
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | -30 – 105 °C [ -22 – 221 °F ] |
