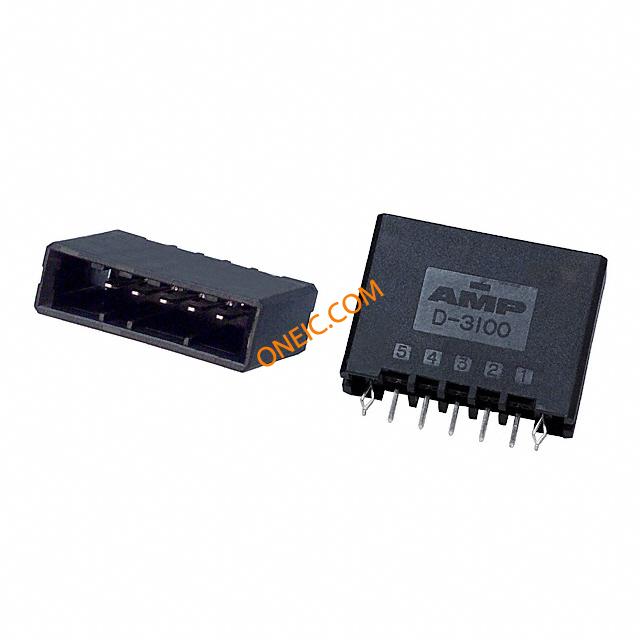

1-178315-5
| 制造商 | |
| 描述 | Conn Power HDR 5 POS 3.81mm Solder ST Thru-Hole 5 Terminal 1 Port Tube Dynamic Series Connectors CONN HDR 5POS VERT KEY-X TIN D-3000 5 Male Straight Heavy Duty Power Connector, Through Hole,250V ac Heavy Duty Power Connectors 5P TAB HEADER Conn Power HDR 5 POS 3.81mm Solder ST Thru-Hole 5 Terminal 1 Port Tube Product Highlights:Terminate To Printed Circuit BoardHeaderTabNumber of Positions = 5Mount = Board MountSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, Powerheader,male,5way,3.81mm,180°,pcb Connector: wire-board; D-3100S; socket; male; straight; PIN:5; 250V TE Connectivity Dynamic 3000 系列 3.81mm节距 5路 直 PCB 针座, 焊接端接 , 通孔 3.81 DYNAMIC D3100S 5P CP H V |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 17 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 250 V ac | 额定交流电压 | 250 |
| 最大额定电流 | 12A | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Black | 深度 | 9.35 mm |
| 间距 | 3.81 mm | 高度 | 21.6 mm |
| 重量 | 1 g | 包装方式 | Bulk |
| 方向 | straight | 端接方式 | Solder |
| 触头类型 | Male Pin | 柱间距 | 3.81 [.150] |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Solder |
| 安装样式 | Thru Hole | 排数 | 1 |
| 插入力 | Female | 触头材料 | Copper Alloy |
| 壳体材料 | Nylon | 总长度 | 29.24 mm |
| 包装数量 | Tube | 主要材料 | Power |
| 连接器 - 电缆 | socket | 端接样式 | Solder Pin |
| 触点数 | 5 | 位数 | 5 |
| 接触镀层厚度 | 78.7µin (2.00µm) | 触点材料 - 镀层 | tinned |
| 第一连接器安装特征 | 1x5 | ||
产品信息
| 备注 | Solder tine section is 1.0 sq. | 类型 | Power |
| 连接器性别 | HDR | 系列 | D-3100S |
| 产品特性 | Board Lock, Polarizing Key | 钥匙类型 | X |
| CAD图纸 | 3D CAD Model | 编码、键控 | Yes |
| 制造商全称 | D-3000Series | 产品子类型 | Header |
| 适配器系列 | D-3100S | 连接类型 | Printed Circuit Board |
| 端口数 | 1 Port | 单元数量 | 1 |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -55C to 105C | 结工作温度 | 105C |
