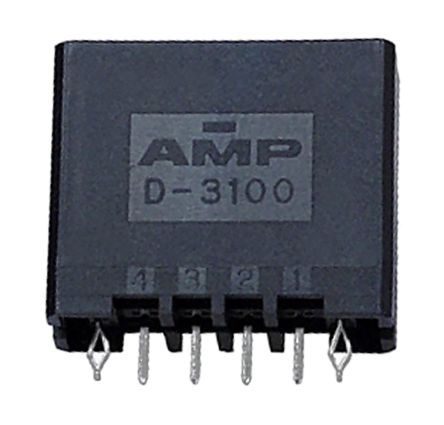

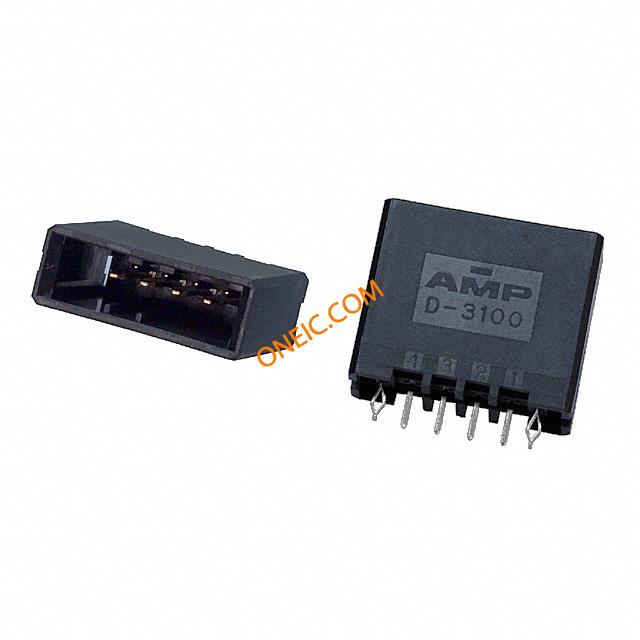

1-178314-2
| 制造商 | |
| 描述 | Conn Power M 4 POS 3.81mm Solder ST Thru-Hole 4 Terminal 1 Port Tube Dynamic Series Connectors CONN HDR 4POS VERT KEY-X 15GOLD Headers & Wire Housings HDR 4 POS VERT 15 AU KEY X Conn Power M 4 POS 3.81mm Solder ST Thru-Hole 4 Terminal 1 Port Tube Product Highlights:Terminate To Printed Circuit BoardHeaderTabNumber of Positions = 4Mount = Board MountSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, CONNECTOR, HEADER, THT, D-3100S, 4WAY TE Connectivity Dynamic 3000 系列 3.81mm节距 4路 直 PCB 针座, 焊接端接 , 通孔 DYNAMIC 3100 HDR 4P ASSY V K/X |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 19 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 开关功能 | Unlatched | 额定交流电压 | 250 |
机械参数
| 颜色 | Black | 间距 | 3.81 mm |
| 重量 | 0.02 | 包装方式 | Bulk |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 柱间距 | 3.81 [.150] | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold (15) | 安装样式 | Thru Hole |
| 排数 | 1 | 触头材料 | Copper Alloy |
| 壳体材料 | Nylon | 包装数量 | Tube |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 触点数 | 4 | 端接表面处理 | Gold over Nickel |
| 接触件端接 | :Through Hole Vertical | 位数 | 4 |
| 接触镀层厚度 | 15µin (0.38µm) | 第一连接器安装类型 | :PCB |
产品信息
| 备注 | Solder tine section is 1.0 sq. | 类型 | Power |
| 连接器性别 | M | 系列 | D-3100S |
| 产品特性 | Board Lock, Polarizing Key | 钥匙类型 | X |
| 编码、键控 | Yes | 产品子类型 | Header |
| 连接类型 | Printed Circuit Board | 加载位置数 | All |
