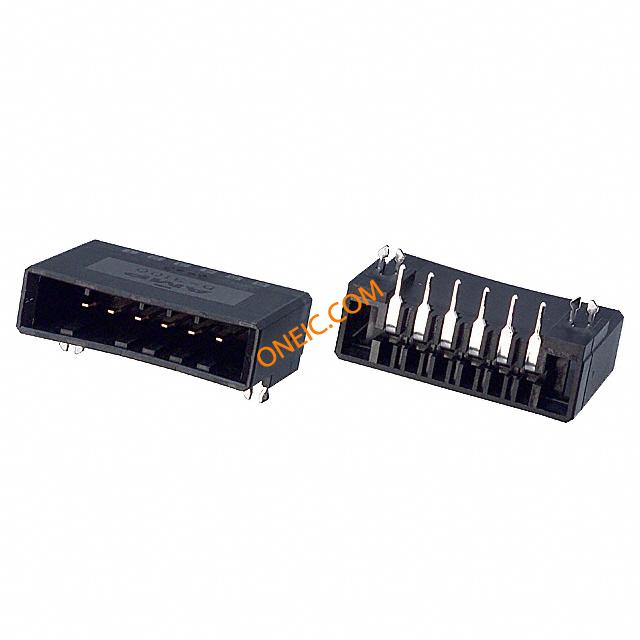

1-178296-3

点击放大查看

1-178296-3

制造商
TE Connectivity Ltd.
描述
Conn Power HDR 6 POS 3.81mm Solder RA Thru-Hole 6 Terminal 1 Port Tube Dynamic Series Connectors CONN HDR 6POS R/A KEY-X 30GOLD Heavy Duty Power Connectors HDR 6 POS R/A 30 AU KEY-X Conn Power HDR 6 POS 3.81mm Solder RA Thru-Hole 6 Terminal 1 Port Tube Product Highlights:ConnectorHousing Gender = Header - TabPreloadedContact Gender = TabTerminate To Printed Circuit BoardSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, DYNAMIC 3100 HDR ASSY 6P H K/X
分类
工具与焊接解决方案压接钳、压接机、压力机压接钳
对参数有疑问？问 AI 助手

商业参数

其他名称A29454产品类别Heavy Duty Power Connectors
标准包装数量Rail / Tube工厂包装数量15

合规参数

RoHSLead free / RoHS Compliant无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

额定交流电压250最小供电电压250VAC

机械参数

颜色Black深度22.1 mm
间距3.81 mm高度10.85 mm
包装方式Bulk端接方式Solder
触头类型Male Pin柱间距3.81 [.150]
外壳颜色Black安装类型Through Hole
连接器类型Header, Shrouded接触镀层Gold (30)
安装样式Thru Hole排数1
触头材料Copper Alloy壳体材料Nylon
总长度33.05 mm包装数量Tube
触点数6 POS端接表面处理Gold over Nickel
位数6接触镀层厚度30µin (0.76µm)

产品信息

备注Solder tine section is 1.0 sq.类型Power
连接器性别HDR系列D-3100S
产品特性Board Lock, Polarizing Key钥匙类型X
编码、键控Yes产品子类型Header
连接类型Printed Circuit Board端口数1 Port
加载位置数All

环境参数

工作温度-55C to 105C结工作温度105C

文档与媒体

在线文档
1-178296-3?RQPN=1-178296-3
