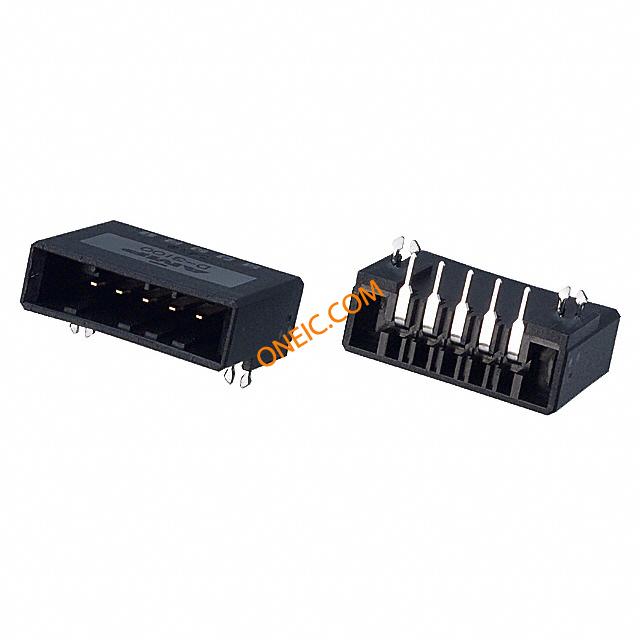

1-178295-3
| 制造商 | |
| 描述 | Conn Power M 5 POS 3.81mm Solder RA Thru-Hole 5 Terminal 1 Port Tube Dynamic Series Connectors CONN HDR 5POS R/A KEY-X 30GOLD D-3000 5 Male Right Angle Heavy Duty Power Connector, Through Hole,600V ac Heavy Duty Power Connectors HDR 5 POS R/A 30 AU KEY-X Conn Power M 5 POS 3.81mm Solder RA Thru-Hole 5 Terminal 1 Port Tube Product Highlights:Terminate To Printed Circuit BoardHeaderTabNumber of Positions = 5Mount = Board MountSearch Keywords:wire-to-board, wire-to-wire, process computers, inverters, power, power, Dynamic Series Connectors, Dynamic Series, HMI, Human Machine Interfaces, Multiple Enclosure Connector; DYNAPAC, Dynamic, Headerhoriz5wayTAB3.81mmXkeyD-3 TE Connectivity Dynamic 3000 系列 3.81mm节距 5路 直角 PCB 针座, 焊接端接 , 通孔 DYNAMIC S/ROW HDR H 5P ASSY |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 17 | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 600 V ac | 额定交流电压 | 250 |
| 最小供电电压 | 600VAC | ||
机械参数
| 颜色 | Black | 深度 | 22.1 mm |
| 间距 | 3.81 mm | 高度 | 10.58 mm |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 柱间距 | 3.81 [.150] |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold (30) |
| 安装样式 | Thru Hole | 排数 | 1 |
| 触头材料 | Copper Alloy | 壳体材料 | Nylon |
| 总长度 | 29.24 mm | 包装数量 | Tube |
| 主要材料 | Power | 触点数 | 5 |
| 端接表面处理 | Gold over Nickel | 位数 | 5 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 备注 | Solder tine section is 1.0 sq. | 类型 | Power |
| 连接器性别 | M | 系列 | D-3100S |
| 产品特性 | Board Lock, Polarizing Key | 钥匙类型 | X |
| 编码、键控 | Yes | 制造商全称 | D-3000Series |
| 产品子类型 | Header | 连接类型 | Printed Circuit Board |
| 端口数 | 1 Port | 加载位置数 | All |
环境参数
| 工作温度 | -55C to 105C | 结工作温度 | 105C |
