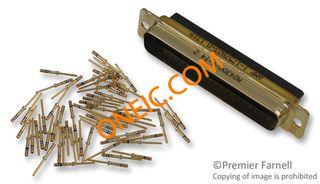

1-1757823-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | M24308 ZINC CONNECTOR D-Sub High Density Connectors 62 POS PLUG, CRIMP HIGH DENSITY Subminiature D Pin/Socket Connectors for MIL-C-24308 and MIL-C-39029 Conn High Density D-Sub PIN 62 POS Crimp ST Cable Mount 62 Terminal 1 Port Conn High Density D-Sub PIN 62 POS Crimp ST Cable Mount 62 Terminal 1 Port Product Highlights:ConnectorProduct Series = 90Density = HighTerminate To WireNumber of Positions = 62Search Keywords:AMPLIMITE, rack and panel, MIL-M24519, DIN 41652, input/output, box to box, military/aerospace, d-sub, d sub, dsub D SUB CONNECTOR, HIGH DENSITY, 62POS, PLUG CONN D-SUB PLUG HD 62POS CRIMP Conn;D-Sub;CablePlug;62Pos;STR;90Series;Crimp;22AWG AMPLIMITE,ASY,PLUG,STD,90,ZN,4,CT |
| 分类 |
商业参数
| 零件号别名 | M24308 M24308/4-14 | 产品类别 | D-Sub High Density Connectors |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | MIL-C-24308 |
| 海关税号 | 85369010 | 资质认证 | No |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 量程（°/s） | :TE CONNECTIVITY - Amplimite 90 Series | 连接器阻抗 | No |
| 最大额定电流 | 7.5A | ||
机械参数
| 重量 | 0 | 材料（通用） | Stainless Steel |
| 包装方式 | Bulk | 出线方向 | Straight |
| 外壳尺寸 | 4 | 导线线规 | 22 |
| 端接方式 | Crimp | 触点尺寸 | 22 |
| 触头类型 | Crimp Snap-in | 非磁性 | No |
| 安装类型 | Free Hanging (In-Line) | 外壳镀层 | Zinc |
| 行程角度 | Straight | 连接器类型 | Crimp |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (Unthreaded) |
| 外壳涂层 | Zinc | 安装样式 | Wire |
| 引脚数 | With | 排数 | 3 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub, High Density |
| 本体材料 | :Metal | 触头材料 | CopperAlloy |
| 壳体材料 | Steel | 主要材料 | D-Subminiature |
| 端接样式 | Crimp | 触点数 | 62 |
| 接触件端接 | :Crimp | 位数 | 62 |
| 衬套/护套类型 | No | 安装孔直径 | 3.05 [.120] |
| 外壳材料及表面处理 | Steel, Yellow Chromate Plated Zinc | 外壳尺寸，连接器布局 | 4 (DC, C) High Density |
产品信息
| 备注 | "F" is stamped on connectors following M24308 part number as required. | 类型 | CablePlug |
| 连接器性别 | Plug | 系列 | 90 |
| 密度 | High | 制造商全称 | AMP |
| 产品子类型 | Connector | 连接类型 | Wire |
| 应用细节 | TrueMil | 设备部件号 | M24308/4-14 |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
