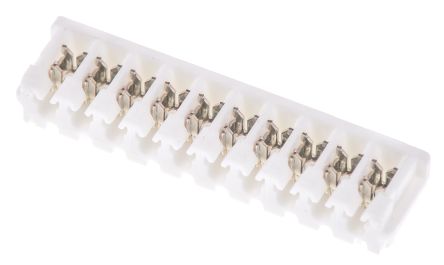

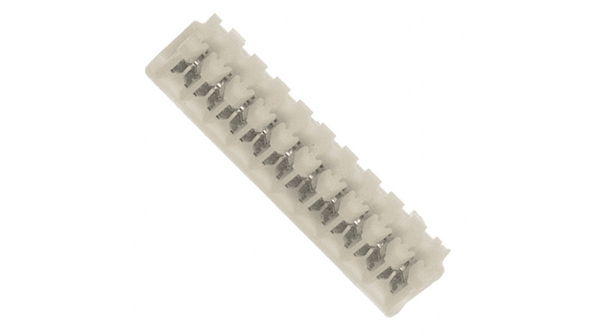

1-173977-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector RCP 10 POS 2mm IDT ST Cable Mount Bag/Box 2mm AMP CT CONN RCPT 10POS 28-26AWG 2MM Receptacle assembly,MT,2mm,IDC,10 way,CT Conn IDC Connector RCP 10 POS 2mm IDT ST Cable Mount Bag/Box Product Highlights:ConnectorConnector Type = Blindmate, MT (Mass Termination)Mating Type = ReceptacleNumber of Positions = 10Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CTCONNMTRECASSY10P Female cable connector Pitch2 mm Poles 10 CT, 1-173977-0, TE Connectivity TE Connectivity AMP CT 系列 1 行 2mm 节距 10 路 直 母 电缆安装 PCB 壳体 CT CONN MT REC ASSY 10P |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | IEC950 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 250V(Power),30V(Signal) | 极数 | 10 |
| 连接器阻抗 | 刺破式压接 (IDC) | 最大额定电流 | 2/Contact A |
| 最小供电电压 | 125VDC/125VAC | ||
机械参数
| 颜色 | Natural | 深度 | 5.1mm |
| 间距 | 2 mm | 宽度 | 4.6mm |
| 高度 | 4.6 mm | 长度 | 22mm |
| 包装方式 | Bulk | 导线类型 | Discrete or Ribbon Cable |
| 电缆类型 | Discrete or Ribbon Cable | 导线线规 | 26-28 AWG |
| 方向 | 直 | 端接方式 | IDT |
| 触点形式 | Female Socket | 触头类型 | Female Socket |
| 外壳颜色 | White | 安装类型 | Free Hanging (In-Line) |
| 行程角度 | Straight | 连接器类型 | IDC Mass Termination |
| 接触镀层 | Pre-Tin | 安装样式 | Cable |
| 排数 | 1 | 连接器用途 | Receptacle |
| 触头材料 | Phosphor Bronze | 壳体材料 | PBT - GF |
| 总长度 | 2.00 [0.079] | 包装数量 | 1,000 |
| 面板安装类型 | Without | 主要材料 | HighCurrent |
| 电缆端接方式 | IDC | 插针孔直径 | 0.079" |
| 触点数 | 10 | 绝缘直径 | 0.85 â 1.05 [0.034 â 0.041] |
| 位数 | 10 | 第一连接器极性 | Female |
| 安装孔直径 | 带有 | 线规或范围 - mm² | 0.08-0.15² [28-26] |
产品信息
| 类型 | IDC Connector | 连接器性别 | RCP |
| 系列 | MT | 产品特性 | Closed End |
| 主要用途 | Closed End | 制造商全称 | MTSeries |
| 产品子类型 | Connector | 连接类型 | Wire |
| 连接方式 | Wire-Board | 输出配置 | Free Hanging (In-Line) |
| 适用产品/相关产品 | Wire-to-Board Connector | ||
环境参数
| 工作温度 | -30C to 105C | ||
