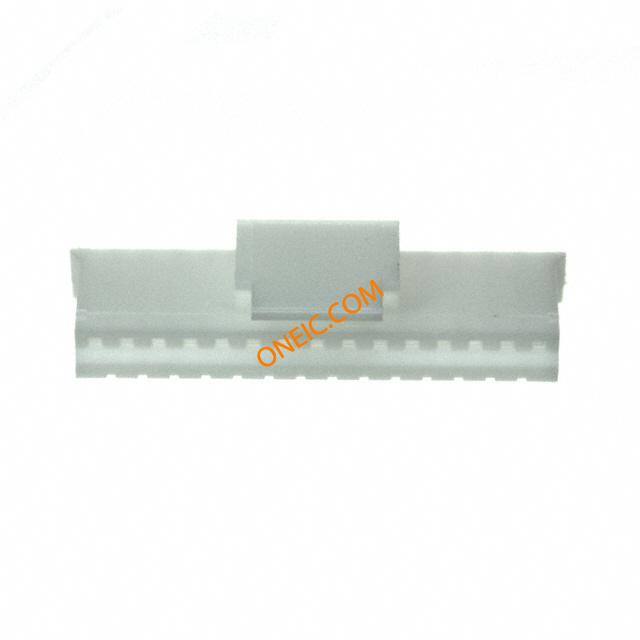

1-1735447-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 15 POS 2mm Crimp ST Cable Mount Miscellaneous Wire to Board Products CONN HOUSING 15POS 2MM W/LATCH HPI 2.0 Receptacle Housing, 15P HPI 2.0 Receptacle Housing, 15P Search Keywords:high performance, square peg, pcb connectors, wire to board, power, crimp, discrete wire connectors, wire to board, signal |
| 分类 |
商业参数
| 标准包装规格 | 600 | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant / ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 接口 | With | ||
机械参数
| 颜色 | Natural | 间距 | 2 mm |
| 包装方式 | Bulk | 触头类型 | Socket |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 连接器类型 | Housing | 紧固类型 | Latch Lock |
| 排数 | 1 | 连接器样式 | Receptacle |
| 壳体材料 | Thermoplastic - GF | 触点数 | 15 |
| 接触件端接 | Crimp | 位数 | 15 |
| 中心触点表面处理 | 2.0 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 制造商全称 | Tyco Electronics |
| 产品子类型 | Connector | ||
