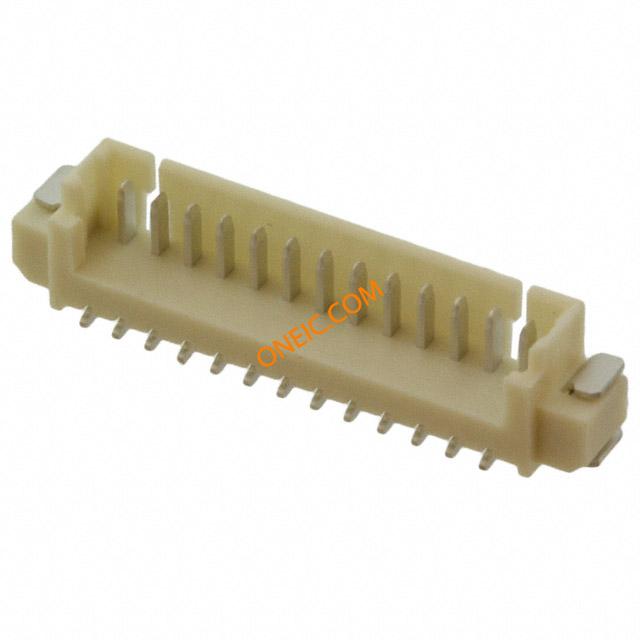

1-1734260-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn High Performance Interconnect HDR 13 POS 1.25mm Solder ST SMD T/R High Performance Interconnects (HPI) CONN HEADER 13POS VERT SMD TIN Headers & Wire Housings 13 POS HDR VT SMT 1.25mm Conn High Performance Interconnect HDR 13 POS 1.25mm Solder ST SMD T/R Search Keywords:high performance, square peg, pcb connectors, wire to board, power, crimp, discrete wire connectors, wire to board, signal 1.25 WTB HDR SMT, 13 POS |
| 分类 |
商业参数
| 其他名称 | A98747CT | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Reflow solder capable to 245°C, Reflow solder capable to 260°C |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 供电电压 | 125 | 最大额定电流 | .8 |
机械参数
| 颜色 | Natural | 间距 | 1.25 mm |
| 宽度 | 4.25 mm [ .167 in ] | 高度 | 4.75 mm [ .187 in ] |
| 长度 | 21.54 mm [ .848 in ] | 包装方式 | Tape & Reel (TR) |
| 尾部类型 | 直式 | 壳体颜色 | 自然 |
| 电缆类型 | 分离式导线 | 导线线规 | 32 – 26 |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 磁芯材料 | 磷青铜 | 外壳颜色 | Natural |
| 安装类型 | Vertical | 电缆材料 | 镍打底镀锡 |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin Over Nickel |
| 触点时序 | Without | 安装样式 | Surface Mount |
| 排数 | 1 | 插入件材料 | 磷青铜 |
| 触头材料 | Phosphor Bronze | 壳体材料 | High Temperature Thermoplastic |
| 框架材料 | Phosphor Bronze | 安装特性 | 焊钉 |
| 包装数量 | 24mm Tape & Reel | 面板安装类型 | 表面贴装 |
| 端接样式 | 插针 | 第一触头极性 | Pin (Male) |
| 触点数 | 13 | 端接表面处理 | 不带 |
| 位数 | 13 | 衬套/护套类型 | 不带 |
| 兼容外壳尺寸（如TM-700等） | 440146-x | 安装孔直径 | 带有 |
| 中心触点材料 | 1.25 [0.049] | 接触件表面处理 - 配合 | 锡 |
| 典型触点布局 | 同轴 | 接触镀层厚度 | 150µin (3.81µm) |
| 静电放电屏蔽 | 不带 | ||
产品信息
| 类型 | High Performance Interconnect | 连接器性别 | HDR |
| 系列 | HPI | 产品特性 | Solder Retention |
| 可密封 | 否 | 卷轴尺寸 | 24 mm |
| 产品子类型 | Header | 选择性装载 | 否 |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -25 – 85 °C [ -13 – 185 °F ] | ||
文档与媒体
相关型号
1-440133-3
te connectivity / amp
