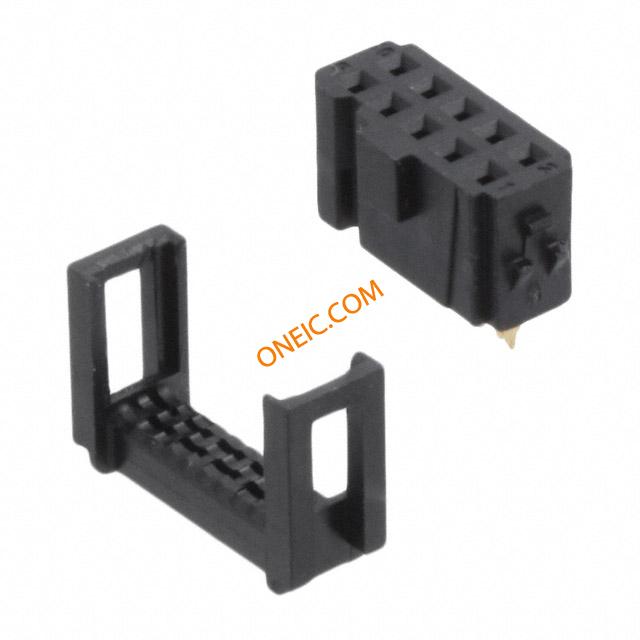

点击放大查看
1-1658528-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Headers & Wire Housings 636-1030LF=FEM SKT BLADE POL 15M Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 10POS W/O STRN RELIEF Ribbon Cable Connectors (AMP-LATCH) Product Highlights:Connector Type = 636 SeriesNumber of Positions = 10ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization TE Connectivity AMP-LATCH 636 系列 2行 10路 2.54mm节距 母 IDC 连接器 , 电缆安装 636-1030LF=FEM SKT BLADE POL 1 |
| 分类 |
商业参数
| 其他名称 | 116585281 | 标准包装规格 | 50 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Bulk | 导线类型 | Ribbon Cable |
| 壳体颜色 | 黑色 | 出线方向 | Without |
| 电缆类型 | 带状电缆 | 导线线规 | 26-28 AWG, Stranded or Solid |
| 方向 | 直 | 排间距 | 0.100" (2.54mm) |
| 触头类型 | Female Socket | 柱间距 | 2.54 x 2.54 [.100 x .100] |
| 极化 | Center & Military | 第二连接器 | Without |
| 外壳颜色 | Black | 安装类型 | No |
| 电缆端类型 | Without | 连接器类型 | 636 Series |
| 接触镀层 | Gold (15) | 安装样式 | Cable |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 安装特性 | Without |
| 端接排数 | IDC | 电缆端接方式 | IDC |
| 端接样式 | IDC | 第一触头极性 | Socket (Female) |
| 配接方向 | With | 触点数 | 10 |
| 位数 | 10 | 接触镀层厚度 | 15µin (0.38µm) |
产品信息
| 类型 | Ribbon Cable | 连接器性别 | Receptacle |
| 系列 | AMP-LATCH 636 | 产品特性 | Feed Through, Polarizing Key |
| 产品子类型 | Receptacles / Sockets - Housings | 连接类型 | Ribbon Cable |
环境参数
| 工作温度 | - 55 C to + 125 C | ||
