点击放大查看

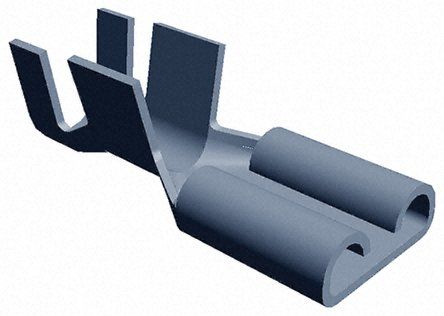

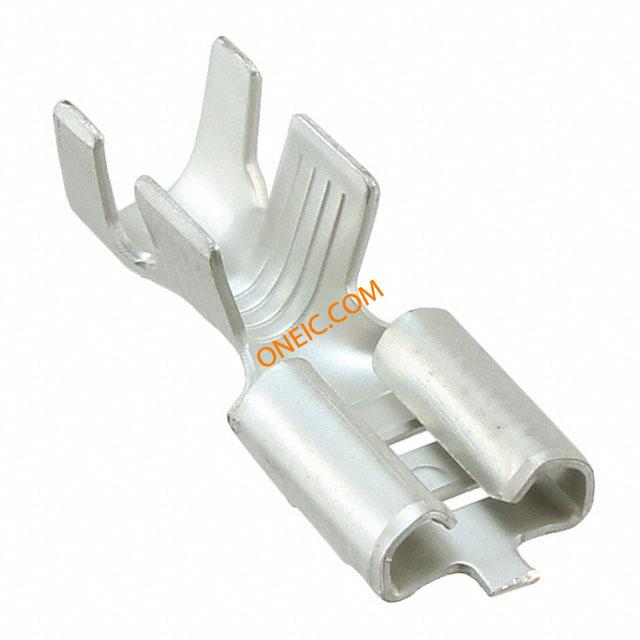

1-160301-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Quick Disconnect Terminal 10-11AWG F 21.4mm 7.6mm Tin Strip Terminals 250 FASTON REC. IS FASTON Uninsulated Receptacles & Housings CONN UNINS RECPT 10-11AWG 0.250 Receptacle terminal FASTON (REEL) Receptacle terminal,FASTON 250,AWG 11-10 Quick Disconnect Terminal 10-11AWG F 21.4mm 7.6mm Tin Strip Product Highlights:ReceptacleTab Fit = 6.35 x 0.81 mmBoard Mount = NoReceptacle Style = StraightInsulation SupportSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING Receptacleterminal,FASTON250,AWG11-10 TE Connectivity FASTON .250 系列 压接插座 , 6.35 x 0.81mm, 镀锡触芯 FASTON 250 REC 4-6 MM2 0.45 PHBZ |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | A107150CT |
| 标准包装数量 | 4,000 | ||
合规参数
| RoHS | RoHS Compliant | UL等级 | 已获认证 |
| UL列名 | Listed | 无铅定义 | Not relevant for lead free process |
| 认可国家 | 是 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 核心类型 | Open | 最大频率 | Single |
| 开关功能 | 快速连接 | 连接器类型 - 电压输入 | Without |
机械参数
| 表面处理 | Tin | 长度 | 21.4mm |
| 材料（通用） | Bronze | 包装方式 | Tape & Reel (TR) |
| 插片宽度 | 6.35 x 0.81 [.250 x .032] | 电缆类型 | Stranded |
| 绝缘类型 | Non-Insulated | 插片长度 | 0.303" (7.70mm) |
| 导线线规 | 10-11 AWG | 端接方式 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 电缆直径 | 6mm² |
| 电缆材料 | Stranded | 连接器类型 | Power Connector |
| 接触镀层 | Tin | 连接器样式 | Straight |
| 箔压接区域 | F-Crimp | 插入件材料 | 磷青铜 |
| 插入力 | Normal | 触头材料 | Phosphor Bronze |
| 总长度 | Premier | 包装数量 | Strip |
| 导线端接方式 | No | 绝缘高度 | Insulation Support |
| 端接样式 | Crimp | 适用端子尺寸 | 3.81 – 5 mm [ .15 – .197 in ] |
| 绝缘直径 | 3.81-5.00 [.150-.197] | 绝缘材料 - 类型 | No |
| 总厚度 | .46 mm [ .018 in ] | 焊盘布局尺寸 | 6.35 x 0.81mm |
| 法兰上方插针尺寸 | 6.35 mm [ .25 in ] | 法兰下方引脚尺寸 | .81 mm [ .032 in ] |
| 线规或范围 - AWG | 10AWG | 线规或范围 - mm² | 4.00-6.00² [11.5-10] |
| 第二连接器安装特性 | Yes | 外径-未扩张 | 5 mm [ .197 in ] |
产品信息
| 类型 | Receptacle | 连接器性别 | Female |
| 系列 | 250 | 制造商全称 | AMP |
| 产品子类型 | Receptacle | ||
