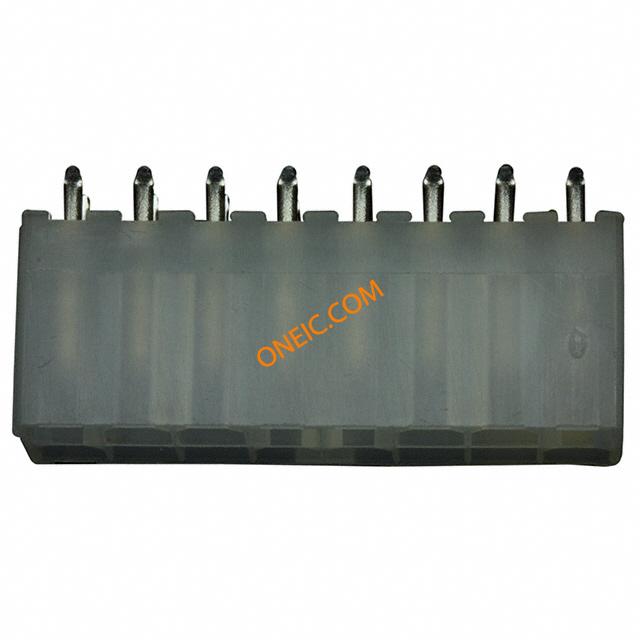

1-1586037-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 16 POS 4.2mm Solder ST Thru-Hole 16 Terminal 1 Port VAL-U-LOK Series Connector System CONN HEADER 16POS VERT W/O PEGS TE Connectivity PE Series 4.2mm Pitch 16 Way Straight Heavy Duty Power Connector, Solder Termination, 9A Pin & Socket Connectors VERT HDR NO PEGS 16P Conn Power HDR 16 POS 4.2mm Solder ST Thru-Hole 16 Terminal 1 Port Product Highlights:ConnectorConnector Type = HeaderHeader Type = Pin Header4.20 mm CenterlineNumber of Circuits = 16Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HEADER, VERTICAL, W/DRAIN HOLES, 94V-2 HEADER,VERTICAL,VAL-U-LOK,16POS,DUALROW,UL94V-2,W/OPEGS TE Connectivity VAL-U-LOK 系列 4.2mm节距 16路 直 RJ45-Rangierfeld, 焊接端接, 9A , 通孔 16P VERT HDR VAL-U-LOK V2 |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C | 认证机构 | :CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-2 |
电气参数
| 额定电压 | 600 V ac | 最大额定电流 | 9A |
机械参数
| 间距 | 4.2 mm | 重量 | 0.0299 |
| 包装方式 | Bulk | 排间距 | 0.165" (4.20mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 引脚间距 | :4.2mm | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin |
| 紧固类型 | Locking Ramp | 安装样式 | Through Hole |
| 排数 | Dual | 触头材料 | Brass |
| 壳体材料 | Nylon | 主要材料 | InterconnectSystem |
| 端接样式 | Solder | 第一触头极性 | Pin (Male) |
| 连接器颜色 | :White | 触点数 | 16 |
| 接触件端接 | :Solder | 位数 | 16 |
| 第一连接器安装类型 | :PCB | ||
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 系列 | PE | 制造商全称 | VAL-U-LOK |
| 产品子类型 | Pin Header | 电路数 | 16 |
| 加载位置数 | All | ||
