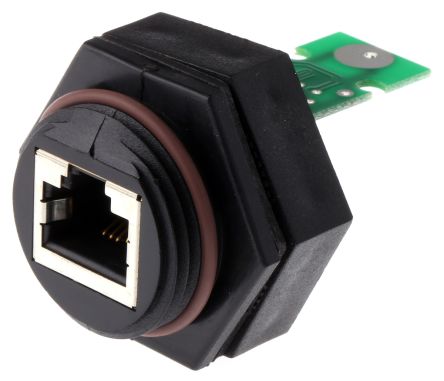

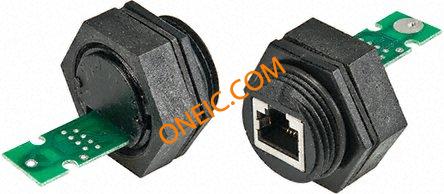

1-1546409-1
| 制造商 | |
| 描述 | Conn RJ-45 RCP 8 POS Solder ST Cable Mount 8 Terminal 1 Port Cat 5 Circular Sealed RJ-45 Connectors CONN MOD JACK 8P8C Connector, Rec, RJ45, w/PC Board Modular Connectors / Ethernet Connectors RECPT WITH PC BOARD Conn RJ-45 RCP 8 POS Solder ST Cable Mount 8 Terminal 1 Port Cat 5 Product Highlights:ReceptacleNot ShieldedMount Type = PC Board (Attached)Nitrile Rubber O-Ring MaterialWithout Category 5 CableSearch Keywords:Environmental sealing (IP67 rated), intermateable, unshielded, modular plugs and jacks, input/output, box to box, sealed, RJ-45 RJ45 ETHERNET CONN, JACK, 8WAY, PANEL Connector;Ethernet;SealedRJ-45;Receptacle;IP67;w/AttachedPCB Circular Sealed RJ-45 Connectors and RJ-45 Field Installable Plugs TE Connectivity 直 母 RJ45 连接器 , 电缆安装型 ETHERNET RECEPTACL W/PC BOARD |
| 分类 |
商业参数
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | 安全类别 | Without |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
机械参数

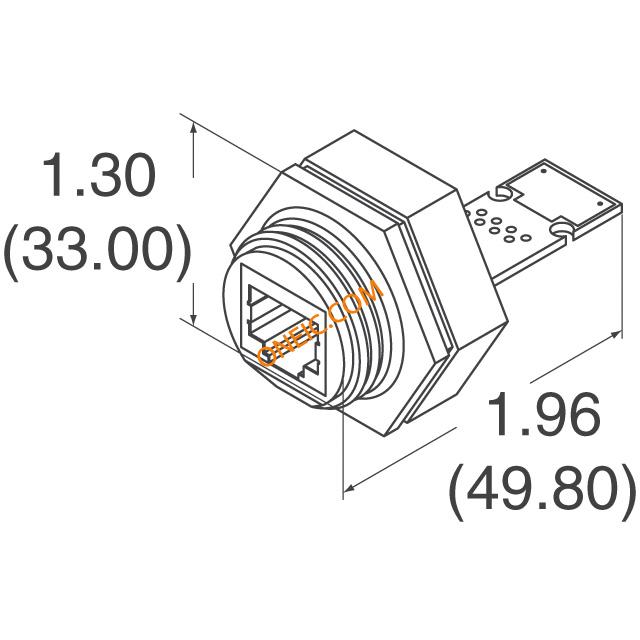

| 深度 | 26.67mm | 长度 | 37.84mm |
| 重量 | 0 | LED颜色 | Does Not Contain LED |
| 包装方式 | Bulk | 屏蔽 | Unshielded |
| 方向 | Straight | 屏蔽类型 | No |
| 端接方式 | Solder | 安装类型 | Cable Mount |
| 外壳镀层 | Nitrile Rubber | 卡扣方向（或“接线片方向”） | User Selectable |
| 连接器类型 | Jack | 接触镀层 | :- |
| 安装样式 | Panel | 排数 | 1 |
| 触头材料 | :- | 壳体材料 | Acrylonitrile Butadiene Styrene (ABS) |
| 主要材料 | Ethernet | 端接样式 | Solder |
| 配接方向 | Threaded | 触点数 | 8 |
| 接触件端接 | :Solder | 第一连接器安装类型 | :Panel |
产品信息
| 类型 | RJ-45 | 连接器性别 | RCP |
| 系列 | :- | 产品特性 | Circular Threaded Coupling |
| USOC 编码 | RJ45 | 制造商全称 | CircularSealedRJ-45 |
| 产品子类型 | Receptacle | 端口数 | 1 |
| 性能类别 | Cat 5 | 位置/触点数量 | 8p8c (RJ45, Ethernet) |
环境参数
| 额定等级 | Cat5e | 防护等级 | IP67 |
