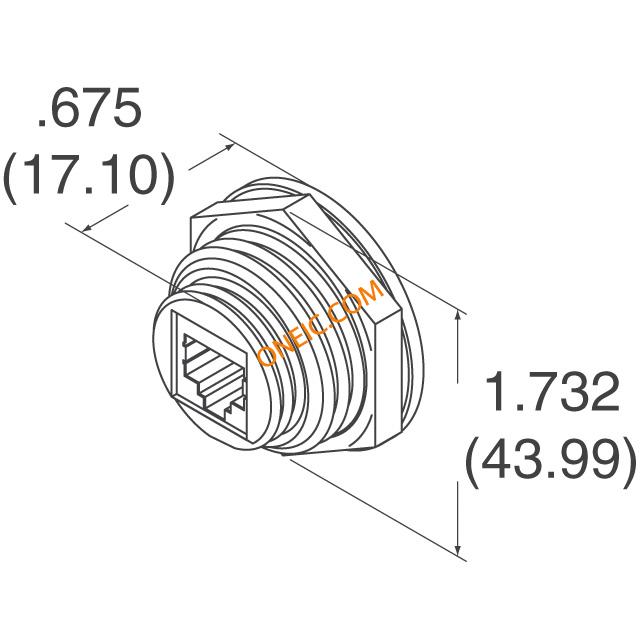

1-1546405-1
| 制造商 | |
| 描述 | Conn RJ-45 RCP 8 POS 1.52mm Solder ST Thru-Hole 8 Terminal 1 Port Cat 5 Circular Sealed RJ-45 Connectors CONN MOD JACK 8P8C Connector, 8 way, RJ45, PCB, IP67 Modular Connectors / Ethernet Connectors DIRECT PCB MNT RCPT Conn RJ-45 RCP 8 POS 1.52mm Solder ST Thru-Hole 8 Terminal 1 Port Cat 5 Product Highlights:ConnectorWith ContactsHousing Gender = ReceptacleNot ShieldedMount Type = PC Board (Direct Mount)Search Keywords:Environmental sealing (IP67 rated), intermateable, unshielded, modular plugs and jacks, input/output, box to box, sealed, RJ-45 Conn;Circ;Recept;Ethernet;SealedRJ-45;8Pin;IP67;DirectPCBMnt TE Connectivity 直 母 RJ45 连接器 , 通孔型 ETHERNET DIRECT PCB MNT RCPT |
| 分类 |
商业参数
| 产品类别 | Modular Connectors / Ethernet Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| 安全类别 | Without | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
机械参数
| 颜色 | Black | 深度 | 43.99mm |
| 间距 | 1.52 mm | 高度 | 18.66 mm |
| 长度 | 41.91mm | LED颜色 | Does Not Contain LED |
| 包装方式 | Bulk | 屏蔽 | Unshielded |
| 壳体颜色 | 黑色 | 电缆类型 | 不带 |
| 方向 | Straight | 屏蔽类型 | No |
| 端接方式 | Solder | 螺纹尺寸 | 1-14 UN-2A |
| 螺母材料 | Acrylonitrile-Butadiene-Styrene (ABS) | 外壳颜色 | Black |
| 安装类型 | Through Hole | 外壳镀层 | Vition Rubber |
| 卡扣方向（或“接线片方向”） | User Selectable | 行程角度 | Straight |
| 连接器类型 | Jack | 接触镀层 | GoldoverNickel |
| 安装样式 | Panel | 排数 | 1 |
| 连接器样式 | Low Profile | 壳体材料 | ABS (Acrylonitrile-Butadiene-Styrene) |
| 总长度 | 41.91 mm | 包装数量 | 1 |
| 主要材料 | Ethernet | 端接排数 | RJ45 |
| 端接样式 | Solder | 配接方向 | Threaded |
| 触点数 | 8 POS | 螺纹/螺钉/孔尺寸 | 丙烯腈-丁二烯-苯乙烯 (ABS) |
产品信息
| 类型 | RJ-45 | 等级 | 工业以太网 |
| 连接器性别 | RCP | 产品特性 | Circular Threaded Coupling |
| 方向 | 直 | USOC 编码 | RJ45 |
| 制造商全称 | RJ45,Ethernet | 预装 | 是 |
| 产品子类型 | Receptacle | 类别编号 | Cat 5 |
| 端口数 | 1 | 射频系列/标准 | 1546405 |
| 加载位置数 | 8 | 位置/触点数量 | 8p8c (RJ45, Ethernet) |
环境参数
| 额定等级 | Cat5e | 防护等级 | IP67 |
