1-146255-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Unshrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HDR BRKWAY 20POS .100 DUAL |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | 无铅定义 | Reflow solder capable to 245°C, Reflow solder capable to 260°C |
| RoHS/ELV合规状态 | Not ELV/RoHS compliant | 材料阻燃等级 | UL 94V-0 |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 柱间距 | 2.54 x 2.54 [.100 x .100] | 第一连接器 | No |
| 第二连接器 | Without | 触点形状 | Square |
| 安装类型 | Vertical | 连接器类型 | Breakaway |
| 接触镀层 | Gold Over Nickel | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Liquid Crystal Polymer (LCP) |
| 安装特性 | Without | 面板安装类型 | Without |
| 尺寸/外形 | 0.64 [.025] | 触点数 | 20 |
| 位数 | 20 | 接触长度 - 配合 | 5.84 [0.230] |
| 表面贴装焊盘尺寸 | No | 端子柱长度 | 3.05 [0.120] |
| 接触镀层厚度 | 5µin (0.127µm) | ||
产品信息
| 备注 | Headers may be broken to desired number of positions using Hand Tool No. 91406- | 类型 | Unshrouded Header |
| 连接器性别 | HDR | 制造商全称 | AMP |
| 产品子类型 | Header | 选择性装载 | No |
| 加载位置数 | All | ||
环境参数
| 温度 | Yes | ||
文档与媒体
相关型号

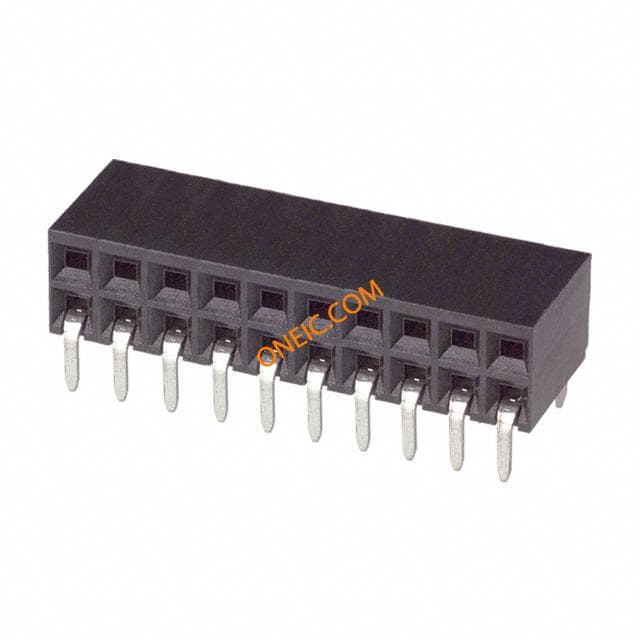

535512-2
