点击放大查看

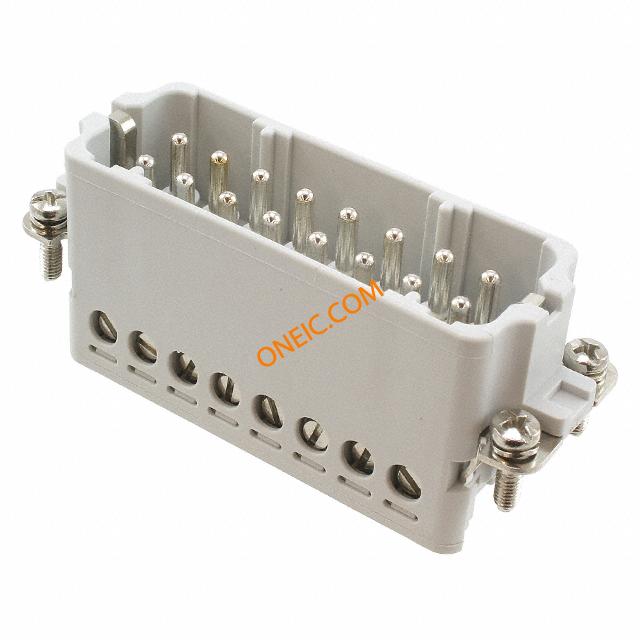

1-1103416-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | HA.16.STI.S.B 17-32 HTS Connectors and Accessories CONN MALE INSERT HA.32 SERIES HA 17-32way screwterminal male insert16A Heavy Duty Power Connectors PIN INSERT SZ 7 HA.16.STI.S.B 17-32 Conn Heavy-Duty Rectangular M 16Signal/1Ground POS Screw ST Panel Mount Loose Piece Conn Heavy-Duty Rectangular M 16Signal/1Ground POS Screw ST Panel Mount Loose Piece Product Highlights:HA.32 SeriesInsertProduct Size = 7Contact Type = Screw TerminalInsert Style = PinSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 INSERT, MALE, SCREW, 16-32 HAINSERTMALE17-32WAY TE Connectivity HA 系列 16针 16P+E极 插头 大负荷电源连接器套件 |
| 分类 |
商业参数
| 交货时间 | 73 Days | 子类别 | Connector Rectangular |
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | 10 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 认证机构 | :CSA, SEV, UL | 材料阻燃等级 | UL94 V-0 |
电气参数
| 额定电压 | 250V | 最大额定电流 | 16A |
机械参数
| 尺寸 | 5 | 颜色 | Beige |
| 重量 | 0.066 | 包装方式 | Loose Piece |
| 端接方式 | :Screw | 连接器类型 | Insert |
| 接触镀层 | Silver | 排数 | :2 |
| 触头材料 | Hard Silver | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 端接样式 | Screw | 第一触头极性 | :Pin |
| 触点数 | 16 | 接触件端接 | :Screw |
| 位数 | 16+Ground | 外壳尺寸-插件 | :7 |
产品信息
| 连接器性别 | Male | 系列 | Han A |
| 极数格式 | 16P+E | 产品子类型 | Inserts |
| 附件类型 | Contact | 适用产品/相关产品 | Machined Crimp Contact |
环境参数
| NEMA 机架尺寸 | :IP40, IP65 | 工作温度 | -40°C ~ 125°C |
相关型号
1106442-1
te connectivity / amp
Connector Accessories Hood Die Cast Aluminum Silver Gray Loose Piece CONN HOOD TOP SZ5 M25 HD HD Connector, Hood HD.25.STO.1.M25.G HDCONNECTOR,HOODHD.25.STO.1 HD.25.STO.1.M25.G
1-1102136-7
te connectivity / amp
Connector Accessories Hood Die Cast Aluminum Silver Gray Loose Piece HTS Connectors and Accessories HA.16.STS.1.16.G Heavy Duty Power Connectors HOOD SZ 5 PG16 SE HA.16.STS.1.16.G Connector Accessories Hood Die Cast Aluminum Silver Gray Loose Piece Product Highlights:HA SeriesHoodProduct Size = 5Dimensions (L x H x W) = 79.5 x 57.0 x 29.0 mmLocking Device Type = Side Clip at Housing BottomSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 Enclosure: for HTS connectors; HTS; size 5; Locking: for latch
1106456-1
te connectivity / amp
Connector Accessories Hood Die Cast Aluminum Silver Gray Finish Loose Piece Heavy Duty Power Connectors HA.32.STO.1.M32.G CONN HOOD TOP SZ7 M32 HA.32
1-1102147-2
te connectivity / amp
Connector Accessories Housing Die Cast Aluminum Silver Gray Finish Loose Piece Heavy Duty Connectors CONN HSG W/CVR SZ5 PG16 HA.16 HA.16.SGD-LB.1.16.Z HA.16.SGD-LB.1.16.Z Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650

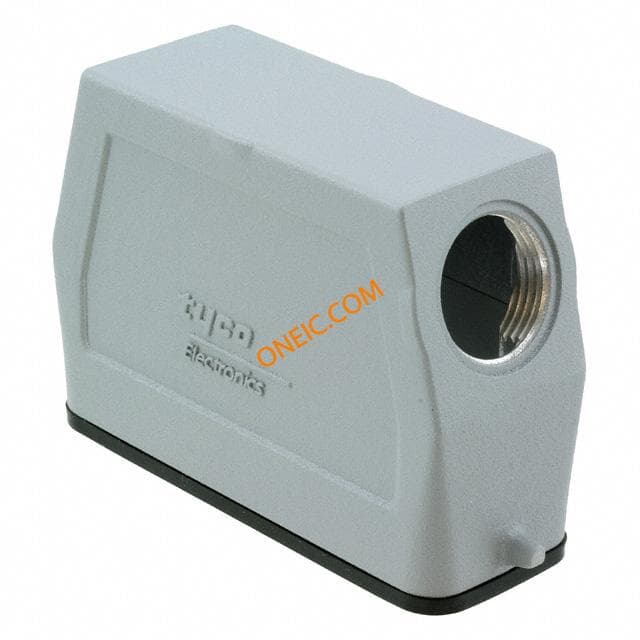

1106439-2
