1-106527-2

点击放大查看

1-106527-2

制造商
TE Connectivity Ltd.
描述Conn Housing RCP 12 POS 4.2mm Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN RECEPT 12POS W/POSTIVE LOCK Pin & Socket Connectors RECPT 12P W/POS LOCK AMP-DUAC Conn Housing RCP 12 POS 4.2mm Crimp ST Cable Mount Product Highlights:HousingAMP-DUACReceptacleNumber of Positions = 12UL 94V-2Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power 12P DUAC REC HSG
分类
连接器解决方案重载连接器重载连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Pin & Socket Connectors标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant零件状态E28476
标准编号CSA, ULUL阻燃等级UL 94V-2
认证机构标志是材料阻燃等级UL 94 V-2

电气参数

额定电压600 V供电电压600
中心频率带有最大额定电流9 A
最小供电电压600VAC

机械参数

颜色Natural深度18.8 mm
间距4.2 mm宽度11.7 mm [ .46 in ]
高度18.8 mm [ .74 in ]长度26.5 mm [ 1.04 in ]
密封型Not Sealed包装方式Bulk
导线线规18-26 AWG排间距0.165" (4.20mm)
触头类型Female Socket外壳颜色Natural
安装类型Straight连接器类型Receptacle
接触镀层Without紧固类型Latch Lock
安装样式SMD/SMT排数2
封装形式Receptacle插入力4
壳体材料Nylon总长度26.5 mm
包装数量1端接样式插座
第一触头极性Socket (Female)触点数12
接触件端接Crimp位数12

产品信息

备注Contacts Not Provided类型Housing
连接器性别RCP系列Amp Duac
产品子类型Receptacle Housings

环境参数

测试温度标准件 - 非灼热丝工作温度-55C to 105C

文档与媒体

在线文档
1-106527-2?RQPN=1-106527-2

相关型号

1-1586040-2

1-1586040-2

te connectivity / amp

Conn Power HDR 12 POS 4.2mm Solder ST Thru-Hole 12 Terminal 1 Port Tray VAL-U-LOK Series Connector System CONN PIN HEADER 12POS DUAL VERT Headers & Wire Housings 12P VRT HDR W/P V0 Conn Power HDR 12 POS 4.2mm Solder ST Thru-Hole 12 Terminal 1 Port Tray Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Cabled Power, pcb connectors, discrete wire, crimp, Power Economy, Molex Mini-Fit Jr, VAL-U-LOK, 4.2mm, PE, PE Series Connector System, .165 Centerline PE, Valulok, PWRSIGALLP HEADER,VERTICAL,VAL-U-LOK,12POS,DUALROW,UL94V-0,W/PEGS 12P VAL-U-LOK VRT HDR W/P V0

¥3.4598
详情
暂无图片

794307-2

te connectivity / amp

Conn Power HDR 12 POS 4.2mm Solder ST Thru-Hole 12 Terminal 1 Port CONN HEADER VERT 12POS GOLD PCB

详情
1-794470-1

1-794470-1

te connectivity / amp

Conn Power HDR 12 POS 4.2mm Solder ST Thru-Hole 12 Terminal 1 Port 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN HEADER 12POS VERT PCB TIN Pin & Socket Connectors 12P AMP/DUAC VRT HDR ASSY LF 12P AMP/DUAC VRT HDR ASSY LF 12P AMP/DUAC VRT HDR ASSY LF Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power

¥4.8688
详情
暂无图片

794354-1

te connectivity / amp

Conn Wire to Board HDR 12 POS 4.2mm Solder ST Thru-Hole CONN HEADER VERT 12POS TIN PCB

详情
暂无图片

1-1586490-2

te connectivity / amp

Conn Wire to Board HDR 12 POS 4.2mm Solder ST Thru-Hole CONN HEADER 12POS VERT PCB GOLD

详情
暂无图片

794307-1

te connectivity / amp

Conn Power HDR 12 POS 4.2mm Solder ST Thru-Hole 12 Terminal 1 Port CONN HEADER VERT 12POS TIN PCB

详情
1-794307-1

1-794307-1

te connectivity / amp

Conn Power HDR 12 POS 4.2mm Solder ST Thru-Hole 12 Terminal 1 Port 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN HEADER VERT 12POS TIN PCB Pin & Socket Connectors AMPDUAC PWR CONN 12P VRT ASSY LF Conn Power HDR 12 POS 4.2mm Solder ST Thru-Hole 12 Terminal 1 Port Product Highlights:HeaderAMP-DUACNumber of Positions = 12PCB Mount Angle = VerticalYes PCB Retention FeatureSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power

¥6.4600
详情
1-794594-2

1-794594-2

te connectivity / amp

Conn Housing PL 12 POS 4.2mm Crimp ST Cable Mount 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN PLUG HOUSING 12PS FREE HANG Pin & Socket Connectors 12 PLUG 94V-0 FR/HNG DUAC 12 DUAC PLUG HSG 94V-0 FR/HANG 12 DUAC PLUG HSG 94V-0 FR/HANG Search Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power

¥2.4310
详情
1-794488-1

1-794488-1

te connectivity / amp

Conn Power HDR 12 POS 4.2mm Solder ST Thru-Hole 12 Terminal 1 Port 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN HEADER 12POS VERT PCB TIN

详情
暂无图片

1-1586496-2

te connectivity / amp

Conn Power HDR 12 POS 4.2mm Solder ST Thru-Hole 12 Terminal 1 Port 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN HEADER 12POS VERT PCB GOLD Pin & Socket Connectors 12P DUAC 94V0 W0/PEG WO/DH LF 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action Product Highlights:HeaderAMP-DUAC0 Power Positions12 Signal PositionsPCB Mount Angle = VerticalSearch Keywords:wire to wire, wire to board, soft shell, Power Pin & Socket, NIC, Network Interface Cards, PC Cards, Lighting Interconnection, Cabled Power, discrete wire, crimp, pcb connectors, Molex Mini-Fit Jr, DUAC, DUAC UPC, DUAC PL, ATX power, power

¥9.1596
详情
1-794488-2

1-794488-2

te connectivity / amp

Conn Power HDR 12 POS 4.2mm Solder ST Thru-Hole 12 Terminal 1 Port 4.2mm & 4.4mm Centerline, 600 V, 9 A max. Dual Action CONN HEADER 12POS VERT PCB GOLD

详情

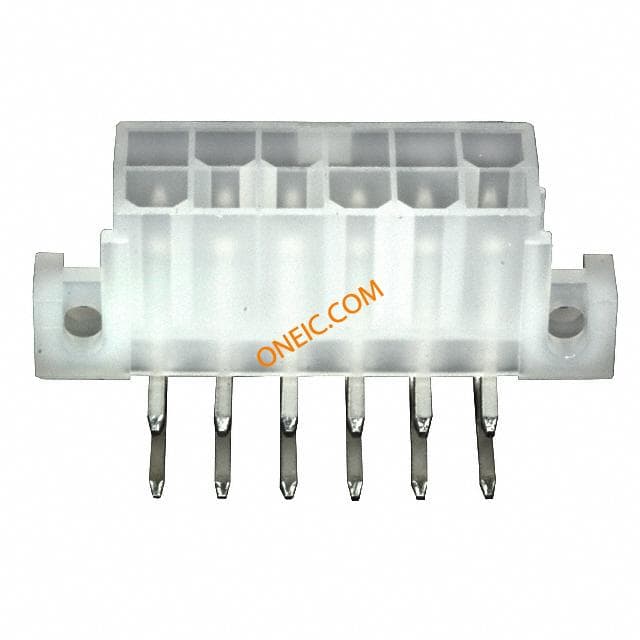

1-1586043-2
