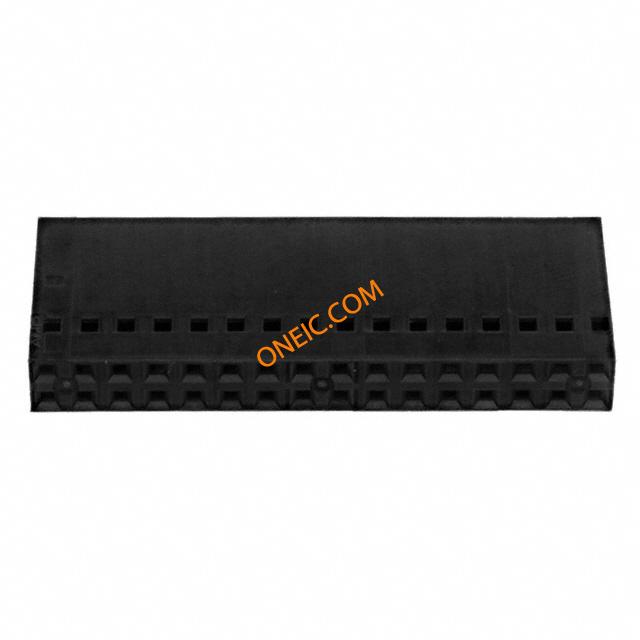

1-104482-4

点击放大查看

1-104482-4

制造商
TE Connectivity Ltd.
描述Conn Housing RCP 32 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 32POS .100 DUAL ROW Headers & Wire Housings CONN HOUSING 32 POS NON-POLARIZED Conn Housing RCP 32 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 32Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 32 SHORT PT RCPT HSG DR .100CL
分类
连接器解决方案矩形连接器电源混合矩形连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant认可国家CSA LR7189, UL E28476
材料阻燃等级Yes

电气参数

额定电压300 VAC供电电压300 VAC
输入电阻5000连接器阻抗压接
最大额定电流3 A保护额定电压（VPR）750 V

机械参数

颜色Black间距2.54 mm
包装方式Bulk壳体颜色黑色
导线线规20-32 AWG排间距0.100" (2.54mm)
端接方式12 mΩ触头类型Female Socket
第二连接器Without安装类型Straight
连接器类型Receptacle安装样式Wire
排数2高度（英寸）.198
壳体材料Thermoplastic总长度1.5
包装数量1面板安装类型不带
端接样式Crimp第一触头极性Socket (Female)
触点数32接触件端接Crimp
位数32兼容外壳尺寸（如TM-700等）接触件
安装孔直径不带静电放电屏蔽不带

产品信息

备注Contacts Not Provided类型Housing
连接器性别RCP系列AMPMODU MOD IV
产品子类型Receptacles / Sockets - Housings

环境参数

工作温度- 65 C to + 105 C
