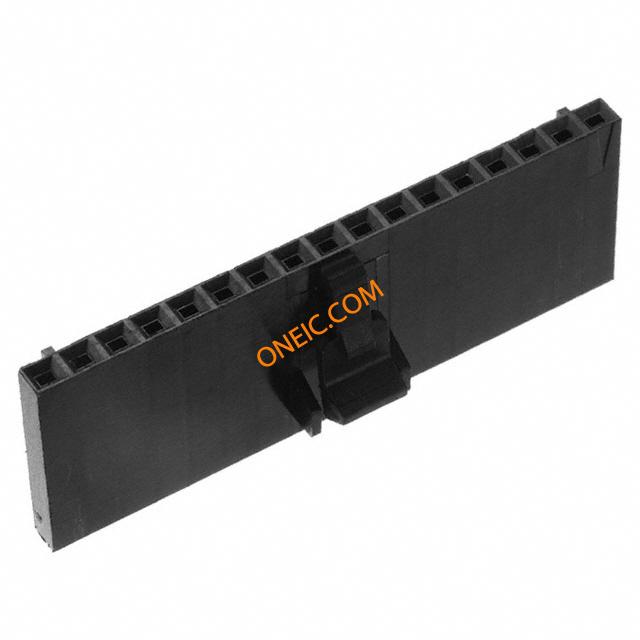

1-104257-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 17 POS 2.54mm Crimp ST .100 AMPMODU Headers, Housings & Contacts CONN RECPT 17POS .1" POL UNLOAD Headers & Wire Housings 17 RCPT HSG SR LATCH .100 Conn Housing RCP 17 POS 2.54mm Crimp ST Product Highlights:HousingNot PreloadedNumber of Positions = 17Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE TE Connectivity AMPMODU MTE 系列 2.54mm 节距 17 路 直 母 电缆安装 PCB 连接器外壳 17 MTE RCPT HSG SR LATCH .100 |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 供电电压 | 267 V | 输入电阻 | 5000 |
| 连接器阻抗 | 刺破式压接 (IDC), 压接 | 保护额定电压（VPR） | 600 VAC |
机械参数
| 颜色 | Black | 深度 | 2.49mm |
| 间距 | 2.54 mm | 宽度 | 15.24mm |
| 高度 | 5.08 mm [ .2 in ] | 长度 | 43.13mm |
| 锁定类型 | 带有 | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 导线线规 | 22-30 AWG |
| 方向 | 直 | 排间距 | 2.54 mm |
| 触头类型 | Female Socket | 极化 | Latched |
| 第二连接器 | With | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Crimp, Insulation Displacement Crimp (IDC) |
| 紧固类型 | Latch Lock | 安装样式 | 不带 |
| 排数 | 1 | 封装形式 | Receptacle |
| 壳体材料 | Thermoplastic | 包装数量 | 500 |
| 面板安装类型 | 不带 | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 配接方向 | With |
| 触点数 | 17 | 接触件端接 | Crimp |
| 位数 | 17 | 兼容外壳尺寸（如TM-700等） | 压接扣入式接触件 |
| 安装孔直径 | 带有 | 中心触点材料 | 2.54 [.100] |
| 典型触点布局 | 同轴 | 静电放电屏蔽 | 不带 |
产品信息
| 备注 | Refer to AMPMODU contacts for crimp snap-in replacement receptacle or pin conta | 类型 | Housing |
| 连接器性别 | RCP | 系列 | MTE |
| 预加载 | No | 编码、键控 | No |
| 产品子类型 | Housing | 适用产品/相关产品 | AMPMODU 系列连接器 |
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | -65 – 105 |
文档与媒体
