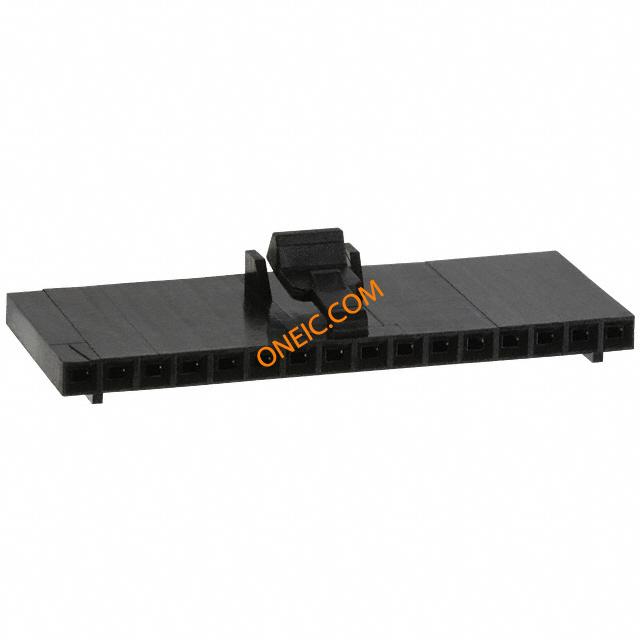

1-104257-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 16 POS 2.54mm Crimp ST .100 AMPMODU Headers, Housings & Contacts CONN RECPT 16POS .1" POL UNLOAD AMPMODU MTE IDC Receptacle housing 16P Headers & Wire Housings 16 MTE RCPT HSG SR L Conn Housing RCP 16 POS 2.54mm Crimp ST Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 16Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONNECTOR,HOUSING,RECEPTACLE,MTE,AMPMODU,16POSITION,LATCH AMPMODU Single Row 2.54 mm Pitch Not Preloaded Receptacle Housing 16 MTE RCPT HSG SR LATCH .100 |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 供电电压 | 267 V | 输入电阻 | 5000 |
| 连接器阻抗 | 刺破式压接 (IDC), 压接 | 连接器类型 - 电压输入 | Crimp |
| 保护额定电压（VPR） | 600 VAC | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 高度 | 5.08 mm [ .2 in ] | 长度 | 40.59 mm [ 1.598 in ] |
| 锁定类型 | 带有 | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 导线线规 | 22-30 AWG |
| 排间距 | 2.54 mm | 触头类型 | Female Socket |
| 极化 | Latched | 第二连接器 | With |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Crimp, Insulation Displacement Crimp (IDC) | 接触镀层 | Gold |
| 紧固类型 | Latch Lock | 安装样式 | 不带 |
| 排数 | 1 | 封装形式 | Receptacle |
| 壳体材料 | Thermoplastic | 包装数量 | 500 |
| 面板安装类型 | 不带 | 主要材料 | InterconnectSystem |
| 端接样式 | 插座 | 第一触头极性 | Socket (Female) |
| 配接方向 | With | 触点数 | 16 |
| 接触件端接 | Crimp | 位数 | 16 |
| 兼容外壳尺寸（如TM-700等） | 压接扣入式接触件 | 安装孔直径 | 带有 |
| 中心触点材料 | 2.54 [.100] | 典型触点布局 | 同轴 |
| 静电放电屏蔽 | 不带 | ||
产品信息
| 备注 | Refer to AMPMODU contacts for crimp snap-in replacement receptacle or pin conta | 类型 | Housing |
| 连接器性别 | RCP | 系列 | MTE |
| 预加载 | No | 编码、键控 | No |
| 制造商全称 | AMPMODU/MTESeries | 产品子类型 | Housing |
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | -65 – 105 |
文档与媒体
相关型号
