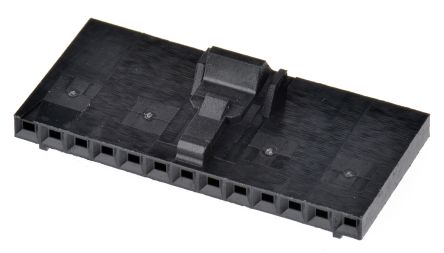

1-104257-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 13 POS 2.54mm Crimp ST .100 AMPMODU Headers, Housings & Contacts CONN RECPT 13POS .1" POL UNLOAD Housing 13 way receptacle IDC AmpModu Headers & Wire Housings RECEPTACLE ASSY 13P Conn Housing RCP 13 POS 2.54mm Crimp ST Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 13Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Housing13wayreceptacleIDCAmpModu TE Connectivity AMPMODU MTE 系列 2.54mm 节距 13 路 母 PCB 连接器外壳 13 MTE RCPT HSG SR LATCH .100 |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 供电电压 | 267 V | 输入电阻 | 5000 |
| 连接器阻抗 | 刺破式压接 (IDC), 压接 | 最大额定电流 | 3/Contact A |
| 保护额定电压（VPR） | 600 VAC | ||
机械参数
| 颜色 | Black | 深度 | 15.24 mm |
| 间距 | 2.54 mm | 高度 | 5.08 mm [ .2 in ] |
| 长度 | 32.97 mm [ 1.298 in ] | 锁定类型 | 带有 |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 导线线规 | 22-30 AWG | 排间距 | 2.54 mm |
| 触头类型 | Female Socket | 极化 | Latched |
| 第二连接器 | With | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Crimp, Insulation Displacement Crimp (IDC) |
| 接触镀层 | Gold | 紧固类型 | Latch Lock |
| 安装样式 | 不带 | 排数 | 1 |
| 封装形式 | Receptacle | 壳体材料 | Thermoplastic |
| 包装数量 | 500 | 面板安装类型 | 不带 |
| 端接样式 | 插座 | 第一触头极性 | Socket (Female) |
| 配接方向 | With | 触点数 | 13 |
| 接触件端接 | Crimp | 位数 | 13 |
| 兼容外壳尺寸（如TM-700等） | 压接扣入式接触件 | 安装孔直径 | 带有 |
| 中心触点材料 | 2.54 [.100] | 典型触点布局 | 同轴 |
| 静电放电屏蔽 | 不带 | ||
产品信息
| 备注 | Refer to AMPMODU contacts for crimp snap-in replacement receptacle or pin conta | 类型 | Housing |
| 连接器性别 | RCP | 系列 | MTE |
| 预加载 | No | 编码、键控 | No |
| 产品子类型 | Housing | ||
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | +105°C |
