1-104257-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 11 POS 2.54mm Crimp ST .100 AMPMODU Headers, Housings & Contacts CONN RECPT 11POS .1" POL UNLOAD Headers & Wire Housings RECEPTACLE ASSY 11P Conn Housing RCP 11 POS 2.54mm Crimp ST Product Highlights:ConnectorWithout ContactsHousing Gender = Connector - ReceptacleHousing Accepts Contact Type = Receptacle2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE MTEHSGCOMP,11MTERCPTHSGSRLATCH.100 11 Position Single Row 2.54mm Pitch Crimp, Insulation Displacement Crimp Rec. 11 MTE RCPT HSG SR LATCH .100 |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 供电电压 | 267 V | 输入电阻 | 5000 |
| 连接器阻抗 | 刺破式压接 (IDC), 压接 | 最大额定电流 | 3/Contact A |
| 连接器类型 - 电压输入 | Crimp | 保护额定电压（VPR） | 600 VAC |
机械参数
| 颜色 | Black | 深度 | 15.24 mm |
| 间距 | 2.54 mm | 高度 | 5.08 mm [ .2 in ] |
| 长度 | 27.89 mm [ 1.098 in ] | 锁定类型 | 带有 |
| 包装方式 | Bulk | 壳体颜色 | 黑色 |
| 导线线规 | 22-30 AWG | 排间距 | 2.54 mm |
| 触头类型 | Female Socket | 极化 | Latched |
| 第二连接器 | With | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Crimp, Insulation Displacement Crimp (IDC) |
| 接触镀层 | Gold | 紧固类型 | Latch Lock |
| 安装样式 | 不带 | 排数 | 1 |
| 封装形式 | Receptacle | 壳体材料 | Thermoplastic |
| 总长度 | 27.88 mm | 包装数量 | 500 |
| 面板安装类型 | 不带 | 主要材料 | InterconnectSystem |
| 端接样式 | 插座 | 第一触头极性 | Socket (Female) |
| 配接方向 | With | 触点数 | 11 |
| 接触件端接 | Crimp | 位数 | 11 |
| 兼容外壳尺寸（如TM-700等） | 压接扣入式接触件 | 安装孔直径 | 带有 |
| 中心触点材料 | 2.54 [.100] | 典型触点布局 | 同轴 |
| 静电放电屏蔽 | 不带 | ||
产品信息
| 备注 | Refer to AMPMODU contacts for crimp snap-in replacement receptacle or pin conta | 类型 | Housing |
| 连接器性别 | RCP | 系列 | MTE |
| 预加载 | No | 编码、键控 | No |
| 制造商全称 | AMPMODU/MTESeries | 产品子类型 | Housing |
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | -65C to 105C |
文档与媒体
相关型号
1-103639-0
te connectivity / amp
Conn Shrouded Header HDR 11 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT 11POS PCB TIN
6-103673-0
te connectivity / amp

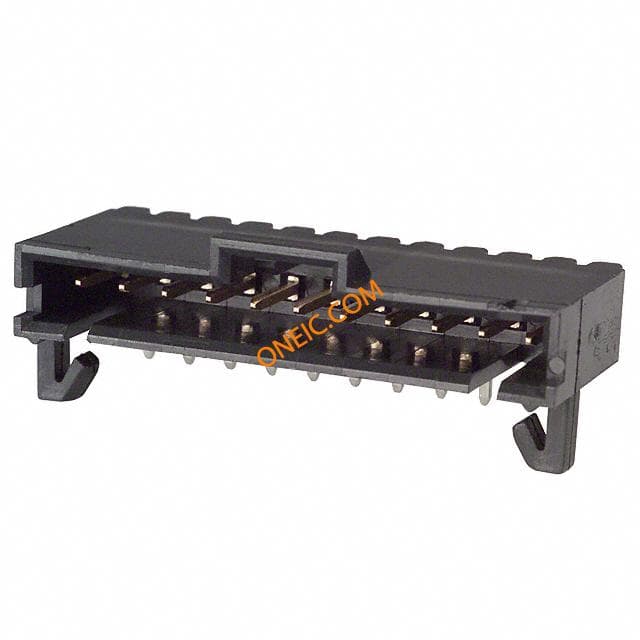

Conn Shrouded Header HDR 11 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 11POS 15AU 11 MTE HDR SRRA LATCH W/HLDWN
6-103735-0
te connectivity / amp
Conn Shrouded Header HDR 11 POS 2.54mm Solder ST Thru-Hole Tube Headers & Wire Housings 11MTE HDR SRST LATCH .100CL .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 11POS 30AU Conn Shrouded Header HDR 11 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:ConnectorPreloadedHousing Gender = Header - PinContact Gender = Pin2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 11 MTE HDR SRST LATCH .100CL
1-103653-0
te connectivity / amp
Conn Housing PL 11 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN PLUG 11POS .1" POL UNLOAD Headers & Wire Housings PIN ASSEMBLY 11P 11 MTE SHRD PIN HSG SR LATCH
1-104809-0
te connectivity / amp
Conn Shrouded Header HDR 11 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADR 11POS VERT LATCH 15AU Headers & Wire Housings 11 MTE HDR SRST LATCH W/HLDWN 11 MTE HDR SRST LATCH W/HLDWN 11 MTE HDR SRST LATCH W/HLDWN Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
6-103669-0
te connectivity / amp

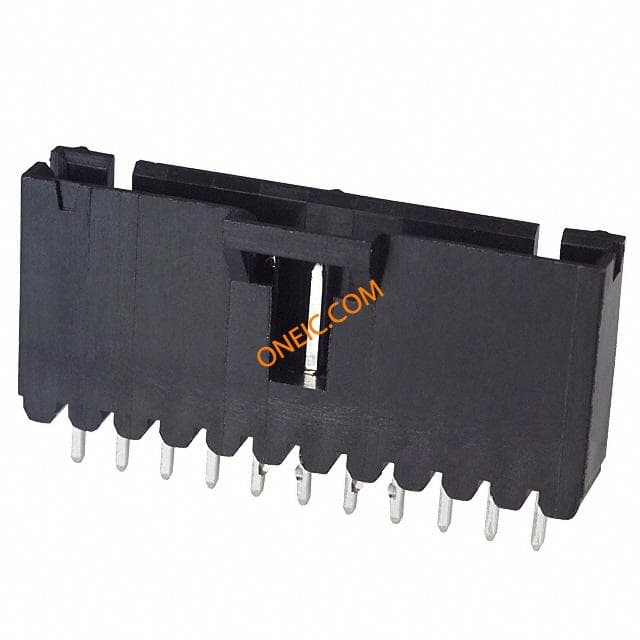

Conn Shrouded Header HDR 11 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT 11POS PCB TIN Headers & Wire Housings 11 MTE HDR SRST LATCH W/HLDWN Conn Shrouded Header HDR 11 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 11Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 11 MTE HDR SRST LATCH W/HLDWN
1-103638-0
te connectivity / amp
Conn Shrouded Header HDR 11 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 11POS 15AU Headers & Wire Housings 11MTE HDR SRST LATCH .100CL Conn Shrouded Header HDR 11 POS 2.54mm Solder ST Thru-Hole Tube Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 11 MTE HDR SRST LATCH .100CL
1-103673-0
te connectivity / amp
Conn Shrouded Header HDR 11 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 11POS 15AU Headers & Wire Housings 11 MTE HDR SRRA LATCH W/HLDWN Conn Shrouded Header HDR 11 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:ConnectorWith ContactsHousing Gender = Header - PinContact Gender = Pin2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 11 MTE HDR SRRA LATCH W/HLDWN
6-104363-0
te connectivity / amp
Conn Shrouded Header HDR 11 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 11POS 15AU Headers & Wire Housings 11MTE HDR SRST LATCH .100CL Conn Shrouded Header HDR 11 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 11Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 11 MTE HDR SRST LATCH .100CL
1-103735-0
te connectivity / amp
Conn Shrouded Header HDR 11 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 11POS 30AU Headers & Wire Housings 11 MTE HDR SRST LATCH .100CL 11 MTE HDR SRST LATCH .100CL
1-103906-0
te connectivity / amp

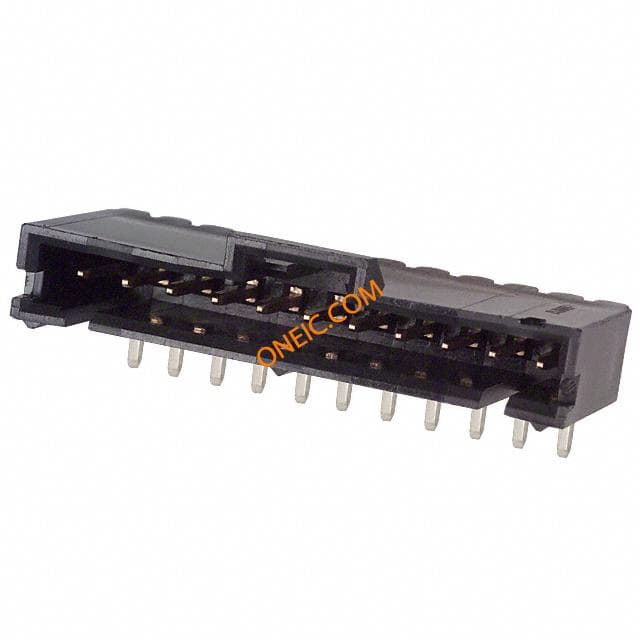

Conn Shrouded Header HDR 11 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 11POS 30AU Headers & Wire Housings 11 MTE HDR SRRA LATCH .100CL 11 MTE HDR SRRA LATCH .100CL 11 MTE HDR SRRA LATCH .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
1-147323-0
te connectivity / amp
Conn Shrouded Header HDR 11 POS 2.54mm Solder RA SMD T/R .100 AMPMODU Headers, Housings & Contacts CONN HEADER 11POS SL R/A SMD AU Headers & Wire Housings 11 MTE HDR SRRA SMT.100CL 11 MTE HDR SRRA SMT.100CL 11 MTE HDR SRRA SMT.100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
1-103670-0
te connectivity / amp
Conn Shrouded Header HDR 11 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 11POS 15AU Headers & Wire Housings 11 MTE HDR SRST LATCH W/HLDWN Conn Shrouded Header HDR 11 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 11Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 11 MTE HDR SRST LATCH W/HLDWN
6-103639-0
te connectivity / amp

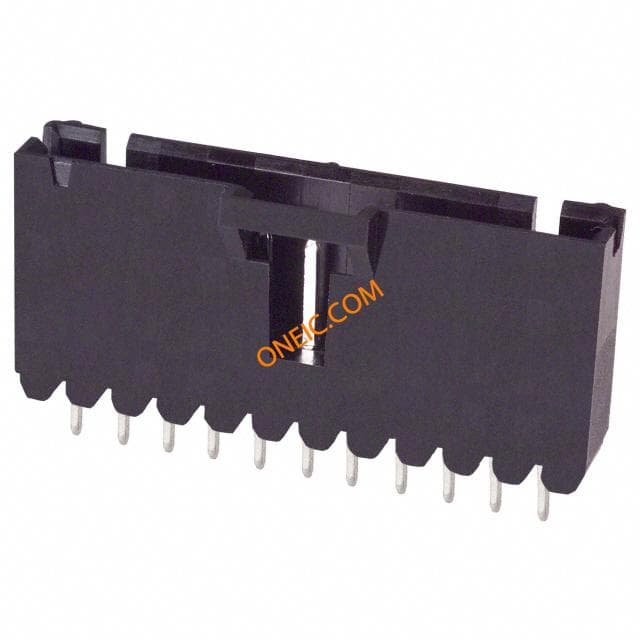

Conn Shrouded Header HDR 11 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT 11POS PCB TIN Conn Shrouded Header HDR 11 POS 2.54mm Solder ST Thru-Hole Tube Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 11 MTE HDR SRST LATCH .100CL
6-103946-0
te connectivity / amp
Conn IDC Connector PIN 11 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN PLUG 11POS .100 POLAR 30AU
6-104362-0
te connectivity / amp
Conn Shrouded Header HDR 11 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 11POS 15AU Conn Shrouded Header HDR 11 POS 2.54mm Solder ST Thru-Hole Tube Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 11 MTE HDR SRST LATCH W/HLDWN
6-103635-0
te connectivity / amp
Conn Shrouded Header HDR 11 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 11POS 15AU Headers & Wire Housings 11 MTE HDR SRRA LTCH .100CL LF Conn Shrouded Header HDR 11 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 11Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONN, HEADER, 11POS, 2.54MM 11 MTE HDR SRRA LTCH.100CL LF
6-103908-0
te connectivity / amp
Conn Shrouded Header HDR 11 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 11POS 30AU Headers & Wire Housings 11P HDR SRST LATCH Conn Shrouded Header HDR 11 POS 2.54mm Solder ST Thru-Hole Tube Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 11 MTE HDR SRST LATCH W/HLDWN
1-103946-0
te connectivity / amp
Conn IDC Connector PIN 11 POS 2.54mm IDT ST Cable Mount Strip CONN PLUG 11POS .100 POLAR 30AU
6-103634-0
te connectivity / amp

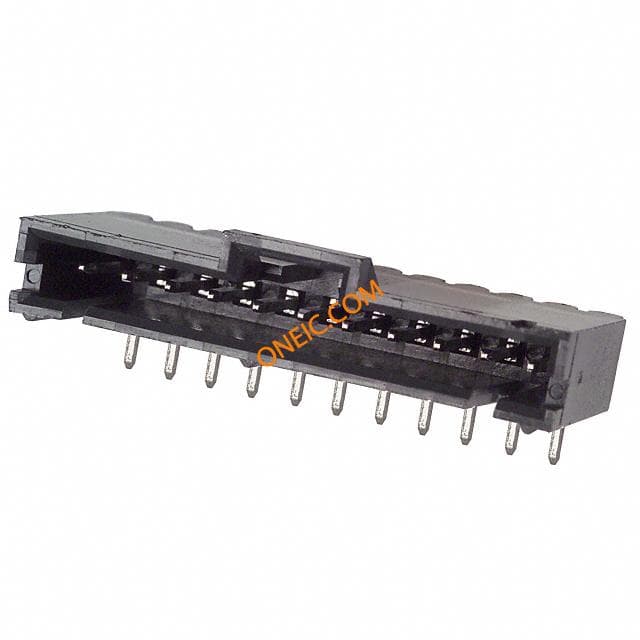

Conn Shrouded Header HDR 11 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RTANG 11POS PCB TIN Headers & Wire Housings 11 MTE HDR SRRA LTCH .100CL LF Conn Shrouded Header HDR 11 POS 2.54mm Solder RA Thru-Hole Tube Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 11 MTE HDR SRRA LTCH.100CL LF
