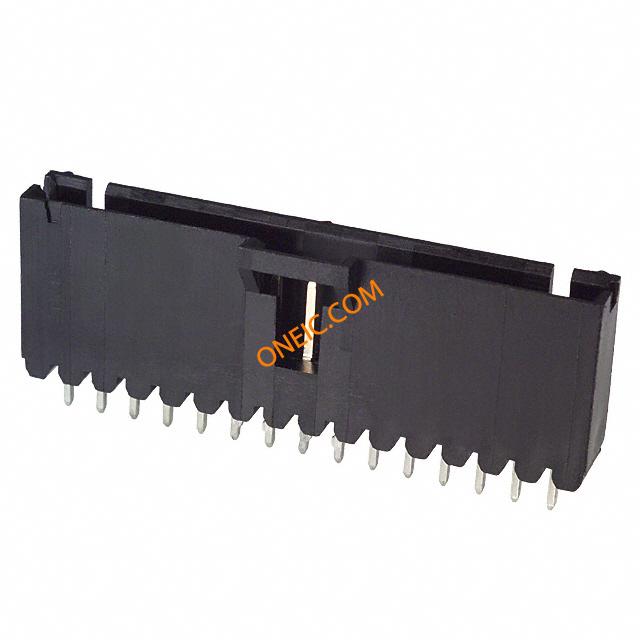

1-103670-4
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 15 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 15POS 15AU Headers & Wire Housings 15P HDR W/LATCH 936 Conn Shrouded Header HDR 15 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 15Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 15 MTE HDR SRST LATCH W/HLDWN |
| 分类 |
商业参数
| 商标名 | AMPMODU | 其他名称 | A28512 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 13 | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | 标准编号 | CSA LR7189, UL E28476 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 开关功能 | Latched | 接触电阻 | 15 mohm |
| 连接器阻抗 | 刺破式压接 (IDC), 压接 | 最大额定电流 | 3 A |
| 绝缘电阻 | 5000 MOhms | 保护额定电压（VPR） | 600 V |
机械参数
| 颜色 | Black | 深度 | 6.98 mm |
| 间距 | 2.54 mm | 高度 | 13.59 mm |
| 长度 | 40.64 mm [ 1.6 in ] | 包装方式 | Tube |
| 壳体颜色 | 黑色 | 引脚样式 | 正方形 |
| 排间距 | 2.54 mm | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold Over Nickel | 触点时序 | Without |
| 安装样式 | Through Hole | 排数 | 1 |
| 插入件材料 | 黄铜 | 触头材料 | Brass |
| 壳体材料 | Thermoplastic | 总长度 | 40.64 mm |
| 安装特性 | 压具 | 包装数量 | 13 |
| 面板安装类型 | 垂直 | 端接样式 | Through Hole |
| 第一连接器类型 | 带罩 | 第一触头极性 | Pin (Male) |
| 触点数 | 15 | 端接表面处理 | 带有 |
| 接触件尾部长度 | 2.54 µm [ 100 µin ] | 位数 | 15 |
| 兼容外壳尺寸（如TM-700等） | 母端护套组件 | 触头长度-柱 | 3.3 mm [ .13 in ] |
| 安装孔直径 | 带有 | 接触件表面处理 - 配合 | 锡铅 |
| 接触长度 - 配合 | 0.230" (5.84mm) | 端子柱长度 | 5.84 mm [ .23 in ] |
| 接触镀层厚度 | 15µin (0.38µm) | 静电放电屏蔽 | 不带 |
产品信息
| 备注 | 使用 91417-1 号键控工具来拆卸用于键控的柱体。 | 类型 | Shrouded Header |
| 连接器性别 | HDR | 系列 | AMPMODU MTE |
| 架构类型 | 否 | 产品子类型 | Headers |
| 加载位置数 | All | ||
环境参数
| 工作温度 | - 65 C to + 105 C | 封装热阻 | .69 mm [ .027 – .08 in ] |
文档与媒体
