1-102618-4

点击放大查看

1-102618-4

制造商
TE Connectivity Ltd.
描述Conn Shrouded Header HDR 32 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER 32POS DL SHRD GOLD Headers & Wire Housings 32 MODII HDR DRST SH 112 Conn Shrouded Header HDR 32 POS 2.54mm Solder ST Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 32Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 32 MODII HDR DRST SHRD .100CL
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMPMODU产品类别Headers & Wire Housings
标准包装数量Trays工厂包装数量112

合规参数

RoHSContains lead / RoHS non-compliant标准编号CSA LR7189, UL E28476
材料阻燃等级UL 94 V-0

电气参数

开关功能Detent Windows连接器阻抗制动器窗口
最大额定电流3 A绝缘电阻5000 MOhms
保护额定电压（VPR）750 Vrms

机械参数

颜色Black间距2.54 mm
底座类型不带锁定类型带有
包装方式Tray壳体颜色黑色
引脚样式正方形稳定器不带
排间距0.100" (2.54mm)端接方式Solder
触头类型Male Pin第一连接器否
安装类型Through Hole连接器类型Header, Shrouded
接触镀层Gold Over Nickel紧固类型Detent Lock
安装样式标准排数2
外壳材料（壳体）4- 面插入件材料磷青铜
触头材料Phosphor Bronze壳体材料Thermoplastic
包装数量112面板安装类型通孔
端接样式Through Hole第一连接器类型带罩
第一触头极性Pin (Male)外径.64 mm [ .025 in ]
触点数32端接表面处理带有
位数32柱体长度（配合）8.08 mm
安装孔直径带有接触长度 - 配合0.318" (8.08mm)
端子柱长度3.18 mm接触镀层厚度15µin (0.38µm)
静电放电屏蔽不带外壳尺寸，连接器布局1.68 mm [ .066 in ]
第一连接器安装特征否

产品信息

类型Shrouded Header连接器性别HDR
系列AMPMODU MOD II钥匙类型否
产品子类型Headers加载位置数All

环境参数

密封等级不带防护等级带罩
工作温度- 55 C to + 105 C封装热阻1.397 mm [ .055 in ]
结工作温度否

文档与媒体

在线文档
1-102618-4

相关型号

1-534206-6

1-534206-6

te connectivity / amp

Conn Socket Strip SKT 32 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 32POS .100 VERT DUAL Headers & Wire Housings REC 2X16P VRT T/H 840 Conn Socket Strip SKT 32 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IINumber of Positions = 32Number of Rows = DualStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 32 MODII VRT DR CE 100/115

¥10.6760
详情
1-103686-5

1-103686-5

TE Connectivity / AMP

Headers & Wire Housings OBSOLETE 16 MTE RCPT SR PLAIN .100CL

详情
1-535598-6

1-535598-6

te connectivity / amp

Conn Socket Strip SKT 32 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings OBSOLETE .100 inch AMPMODU Receptacles CONN RCPT 32POS .100 DUAL T/H AU 32 MODIV VRT DR CE RCPT ASSY

详情

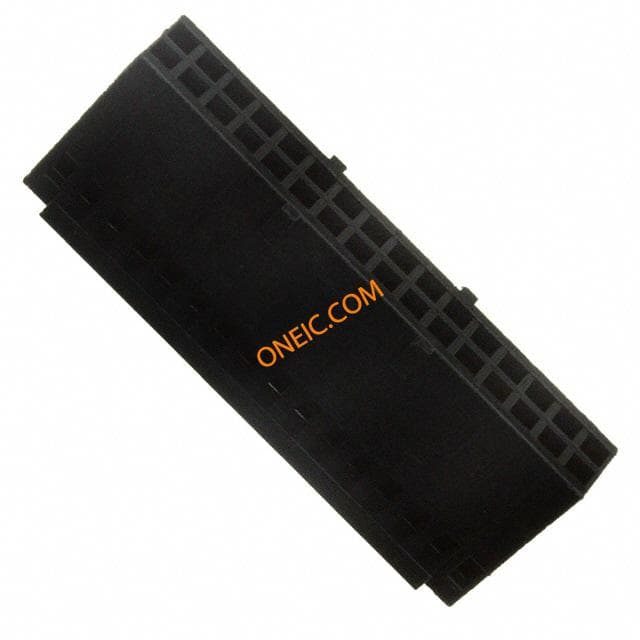

2-87631-7

2-87631-7

te connectivity / amp

Conn Housing RCP 32 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 32POS .100 POL DUAL Conn Housing RCP 32 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 32Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 32 MODIV HSG COMP DR .100 POL

¥8.3640
详情

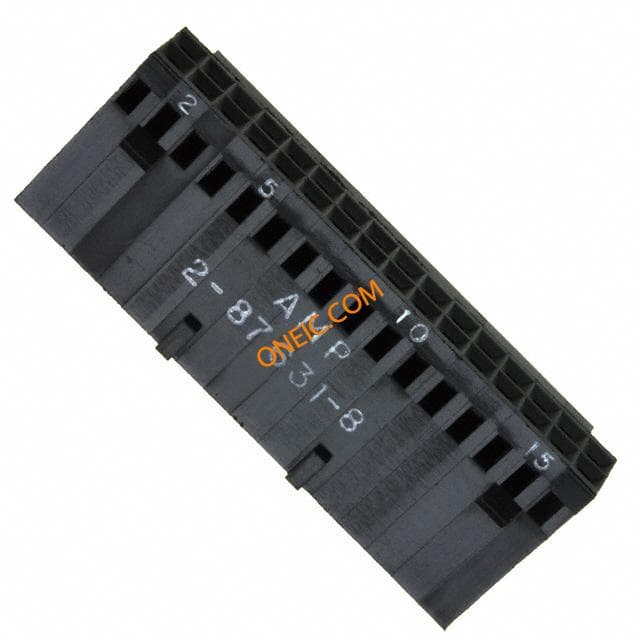

2-87631-8

2-87631-8

te connectivity / amp

Conn Housing RCP 32 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 32POS .100 POL DUAL Headers & Wire Housings 32 HSG DR MRKD .1POL Conn Housing RCP 32 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 32Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 32 MODIV HSG DR MRKD .100 POL

¥8.4320
详情

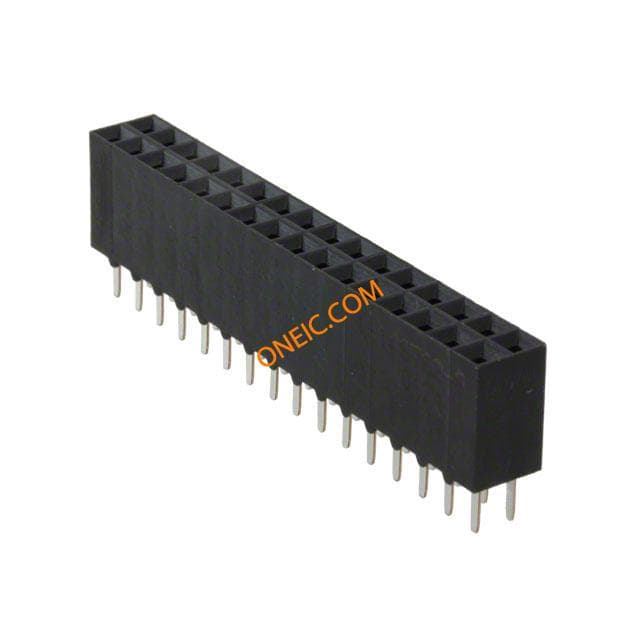

1-146762-8

1-146762-8

te connectivity / amp

Conn Socket Strip RCP 32 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RCPT 32POS .100 TIN T/H Headers & Wire Housings 32MODII RCPT VERT DR 32 MODII RCPT VERT DR 32 MODII RCPT VERT DR Search Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal,

¥13.6135
详情
87733-7

87733-7

te connectivity / amp

Conn Housing RCP 32 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSNG 32POS .100 POL W/STR

详情

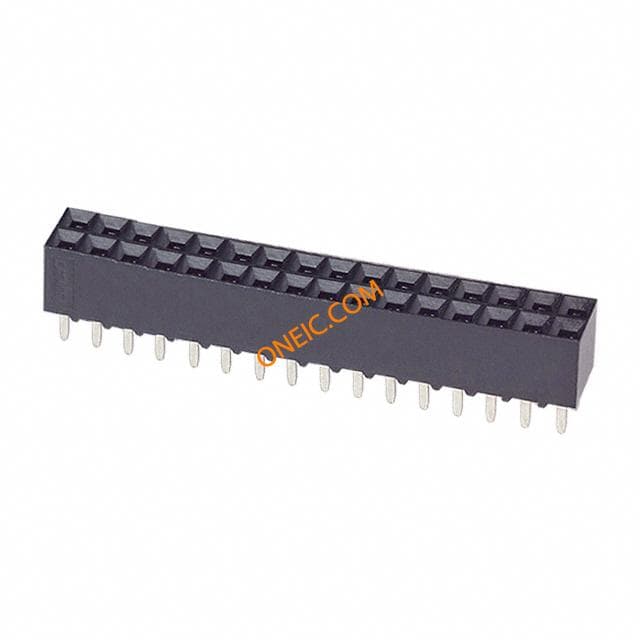

6-534998-6
