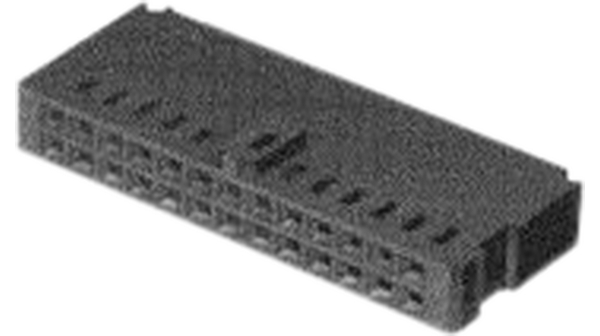

1-102387-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 50 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 50POS .100 POL DUAL Housing FH 50way 2row Rec 2.54mm AmpModu Headers & Wire Housings CNTR PLRZD HG 50 DBL Conn Housing RCP 50 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 50Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Housing,Connector;ModIV;Dual;50;250VAC;3A;750VNo Crimp housing Pitch2.54 mm Poles 50 straight / with polarization / Double row AMPMODU MOD IV, 1-102387-0, TE Connectivity TE Connectivity AMPMODU Mod IV 系列 2 行 2.54mm 节距 50 路 直 母 电缆安装 PCB 壳体 50 MODIV HSG COMP DR .100 POL |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | ULListed,CSACertified,RoHSCompliant,ELVCompliant |
| 认证机构 | CSA,UL | 标准编号 | CSA LR7189, UL E28476 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 额定电压 | 250 VAC | 极数 | 50 |
| 供电电压 | 250 VAC | 接触电阻 | 12 mΩ |
| 输入电阻 | 5000 | 连接器阻抗 | 压接 |
| 击穿电压 | 750V | 最大额定电流 | 3 A |
| 绝缘电阻 | 5000Megohms | 最小供电电压 | 250VAC |
| 连接器类型 - 电压输入 | Crimp | 保护额定电压（VPR） | 750 V |
机械参数
| 颜色 | Black | 深度 | 15.24mm |
| 间距 | 2.54 mm | 宽度 | 7.23mm |
| 高度 | 7.23 mm | 长度 | 68.07mm |
| 锁定类型 | 不带 | 包装方式 | Bulk |
| 壳体颜色 | 黑色 | 导线线规 | 22-30 AWG |
| 方向 | 直 | 排间距 | 0.100" (2.54mm) |
| 端接方式 | 12Milliohms | 触点形式 | Female Socket |
| 触头类型 | Female Socket | 引脚间距 | 0.100" (2.54mm) |
| 极化 | Yes | 外壳颜色 | Black |
| 安装类型 | Straight | 行程角度 | Straight |
| 连接器类型 | Receptacle | 安装样式 | Cable |
| 排数 | 2 | 连接器样式 | straight |
| 插入件材料 | 铍铜 | 壳体材料 | Thermoplastic |
| 总长度 | 68.07 mm | 包装数量 | 1 |
| 主要材料 | InterconnectSystem | 连接器 - 电缆 | No |
| 插针孔直径 | 0.1" | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 连接器颜色 | black |
| 触点数 | 50 | 接触件端接 | Crimp |
| 位数 | 50 | 第一连接器极性 | Female |
| 兼容外壳尺寸（如TM-700等） | 公端 | 安装孔直径 | 带有 |
| 静电放电屏蔽 | 不带 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | Mod IV |
| 产品特性 | Polarizing Key | 主要用途 | Polarizing Key |
| 制造商全称 | AMPMODU/MODIVSeries | 产品子类型 | Receptacles / Sockets - Housings |
| 连接方式 | Wire-Board | 其他规格 | 否 |
| 输出配置 | Free Hanging (In-Line) | 矩阵（列×行） | 0.100x0.100in. |
| 适用产品/相关产品 | Centerline Double-Row Connector | ||
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | - 65 C to + 105 C |
文档与媒体
相关型号
104128-9
te connectivity / amp
Conn Ejector Header HDR 50 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR .100 50POS Headers & Wire Housings 50P HEADER W/LATCHES Connector Ejector Header 50 Positions 2.54mm Solder ST Thru-Hole 050 LOPRO HDR SP 30DP LATCH
1-104351-8
te connectivity / amp
Conn Unshrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole Tube .100 inch AMPMODU Headers CONN HDR BRKWAY 50POS DUAL 15AU Headers & Wire Housings 50 MODII HDR DRST B/ 500 .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = StandardNumber of Rows = DualNumber of Positions = 50Mating Post Length = 5.84 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 50 MODII HDR DRST B/A W/HD
1-103310-0
te connectivity / amp
Conn Shrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 50POS GOLD Headers & Wire Housings 050 HEADER RA 15DP 245 Conn Shrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 502.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, 050 LOPRO HDR RA 15DP
1-5103310-0
te connectivity / amp
Conn Shrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 50POS GOLD Headers & Wire Housings 100X100 HDR 2X025P R/A LOW PROFILE Conn Shrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole Product Highlights:PreloadedConnector Style = Header - PinHeader Type = Pin HeaderAMP-LATCH Product LineLow ProfileSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 50POS, 2.54MM Header,ThroughHole;Shrouded;RightAngle;CopperAlloy;Thermoplastic;50 A/L LOW PRO HDR 50P RA BLACK
1-104354-8
te connectivity / amp
Conn Unshrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole Headers & Wire Housings OBSOLETE CONN HDR BRKWAY 50POS R/A DUAL

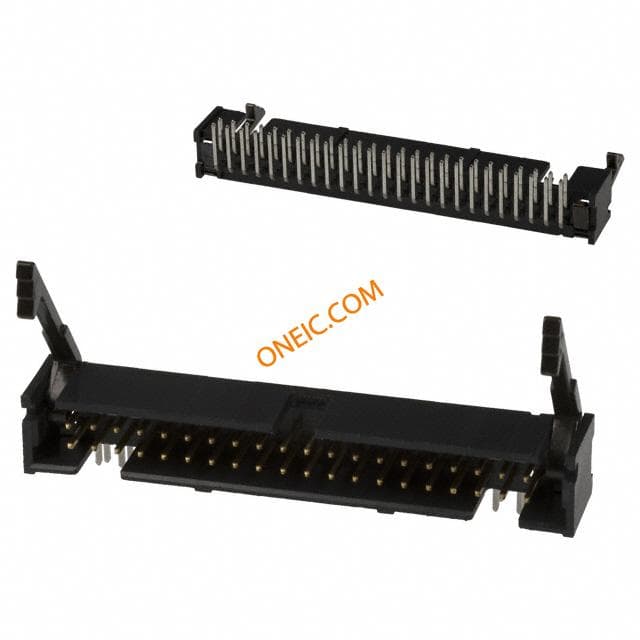

104130-9
