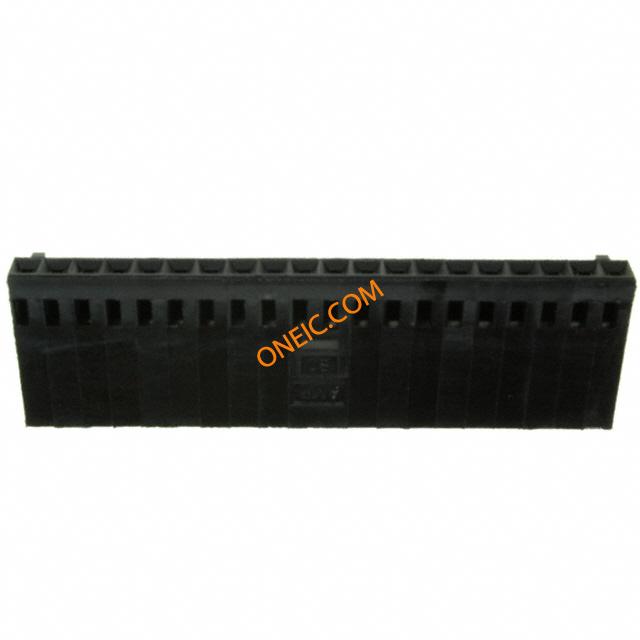

1-102241-8

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 20POS .100 POLAR Conn Housing RCP 20 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 20Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 20 MODIV HSG COMP SR .100 POL
分类	连接器解决方案矩形连接器FPC/FFC矩形连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

Bulk

合规参数

RoHS	Not applicable / RoHS Compliant	标准编号	CSA LR7189, UL E28476
材料阻燃等级	UL 94V-0

电气参数

供电电压	250 VAC	接触电阻	12 mΩ
输入电阻	5000	连接器阻抗	压接
最大额定电流	3/Contact A	最小供电电压	250VAC
保护额定电压（VPR）	750 V

机械参数

颜色	Black	深度	15.24 mm
间距	2.54 mm	高度	4.62 mm
长度	50.8 mm [ 2 in ]	锁定类型	带有
包装方式	Bulk	壳体颜色	黑色
导线线规	20-32 AWG	触头类型	Female Socket
外壳颜色	Black	安装类型	Straight
连接器类型	Receptacle	紧固类型	Locking Ramp
排数	1	插入件材料	铍铜
壳体材料	Nylon	总长度	50.8 mm
包装数量	1	端接样式	插座
触点数	20	接触件端接	Crimp
位数	20	兼容外壳尺寸（如TM-700等）	公端
安装孔直径	带有	典型触点布局	同轴
静电放电屏蔽	不带

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	产品子类型	连接器
放大器类型	带有

环境参数

测试温度

标准部件 - 非辉光导线

工作温度

-65C to 105C
