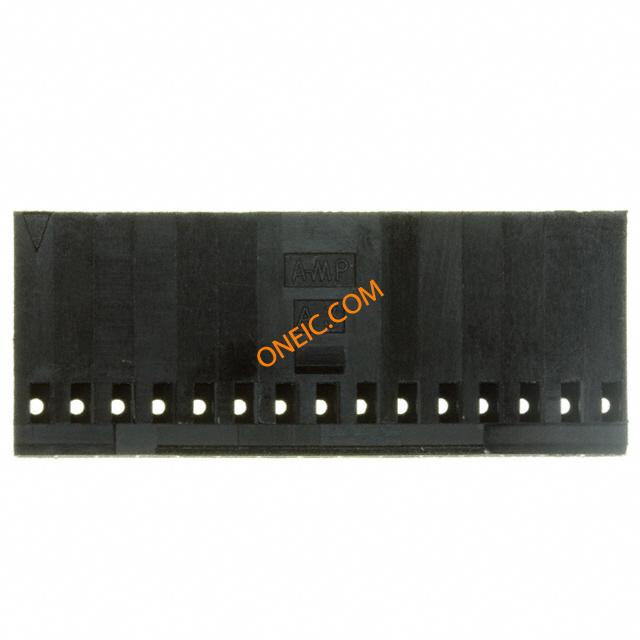

1-102241-3

制造商	TE Connectivity Ltd.
描述	Conn Housing RCP 15 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 15POS .100 POLAR Headers & Wire Housings 15 HSG SR COMP .100 POL Conn Housing RCP 15 POS 2.54mm Crimp ST Cable Mount Product Highlights:ConnectorWithout ContactsHousing Gender = Connector - ReceptacleHousing Accepts Contact Type = Receptacle2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 15 MODIV HSG COMP SR .100 POL
分类	连接器解决方案矩形连接器FPC/FFC矩形连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1

合规参数

RoHS	Lead free / RoHS Compliant	标准编号	CSA LR7189, UL E28476
材料阻燃等级	UL 94V-0

电气参数

额定电压	250 VAC	开关功能	Detent Latching
供电电压	250 VAC	接触电阻	12 mΩ
输入电阻	5000	连接器阻抗	压接
最大额定电流	3 A	保护额定电压（VPR）	750 V

机械参数

颜色	Black	间距	2.54 mm
高度	4.62 mm [ .182 in ]	长度	38 mm [ 1.5 in ]
锁定类型	带有	包装方式	Bulk
壳体颜色	黑色	导线线规	20-32 AWG
触头类型	Female Socket	安装类型	Straight
连接器类型	Receptacle	紧固类型	Locking Ramp
排数	1	插入件材料	铍铜
壳体材料	Nylon	包装数量	1
端接样式	插座	触点数	15
接触件端接	Crimp	位数	15
兼容外壳尺寸（如TM-700等）	公端	安装孔直径	带有
典型触点布局	同轴	静电放电屏蔽	不带

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	AMPMODU MOD IV
产品子类型	Wire Housings	放大器类型	带有

环境参数

测试温度

标准部件 - 非辉光导线

工作温度

- 65 C to + 105 C

文档与媒体

在线文档

1-102241-3?RQPN=1-102241-3

相关型号

1-146128-3

te connectivity / amp

Conn Unshrouded Header HDR 15 POS 2.54mm Solder ST SMD .100 inch AMPMODU Headers CONN HDR BRKWAY 15POS VERT SMD Headers & Wire Housings 15MODII HDR SR SFMNT B/A .100 Conn Unshrouded Header HDR 15 POS 2.54mm Solder ST SMD Search Keywords:board to board, AMPMODU, pcb connectors, 15 MODII HDR SR SFMNT B/A .100

¥6.7320

详情

1-102203-2

te connectivity / amp

Conn Shrouded Header HDR 15 POS 2.54mm Solder RA Thru-Hole Gang of Tubes .100 inch AMPMODU Headers CONN HEADER R/A .100 15POS 15AU Headers & Wire Housings RA SHROUD SNGL 15P 104 Conn Shrouded Header HDR 15 POS 2.54mm Solder RA Thru-Hole Gang of Tubes Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = SingleNumber of Positions = 15Mating Post Length = 6.10 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 15 MODII HDR SRRA SHRD .100CL

¥24.6160

详情

暂无图片

1-104345-3

te connectivity / amp

Conn Unshrouded Header HDR 15 POS 2.54mm Solder ST Thru-Hole CONN HDR BRKWAY 15POS VERT 15AU

详情

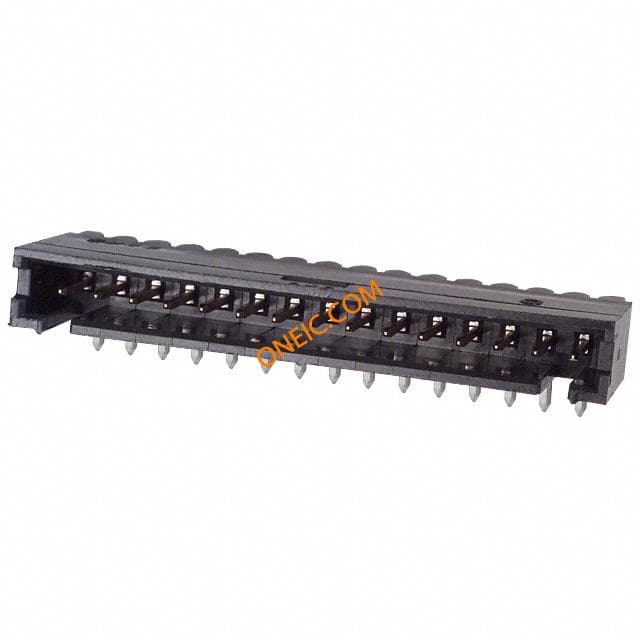

6-102203-2
