330367
| 制造商 | TE Connectivity Ltd. |

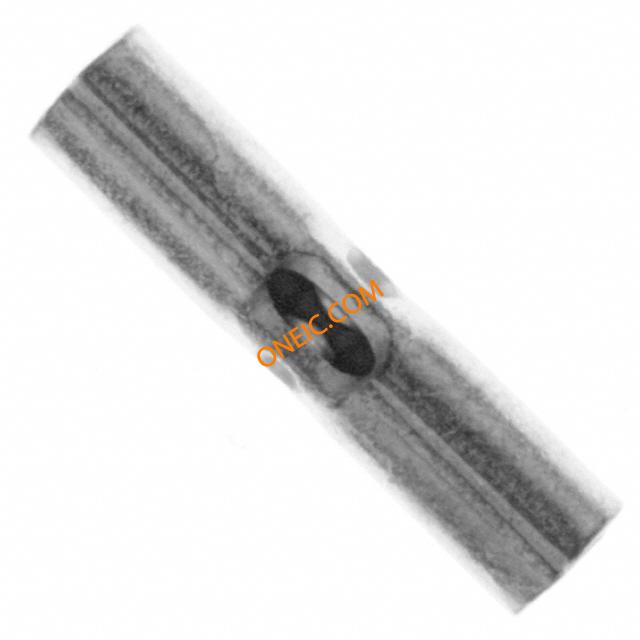

| 描述 | Splice Terminal 16-22AWG 14.68mm 3.58mm Tin Loose Piece Terminals N/I-BUTT 22-16 Splices - Closed Barrel CONN SPLICE BUTT 16-22 AWG Splice Terminal 16-22AWG 14.68mm 3.58mm Tin Loose Piece Product Highlights:SpliceNot SealedSplice Type = ButtButt Splice Type = Sight HoleBody Style = SOLISTRANDSearch Keywords:Wire Termination and Splices, terminals and splices, W crimp, C crimp, SOLISTRANDBUTT26-4,SPLICE,SOLISBUTT22-16 TE Connectivity SOLISTRAND 系列 平接 非绝缘压接接线端子, 镀锡触点, 22 → 16 AWG SPLICE,SOLIS BUTT 22-16 |
| 分类 |
商业参数
| 产品 | Splices | 其他名称 | A09012 |
| 产品类别 | Terminals | 标准包装数量 | Bulk |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | RoHS Compliant | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 军用规范 | No | 认证机构标志 | No |
电气参数
| 纹波 | 是 | 额定电压 | 300 VAC |
机械参数
| 颜色 | None | 深度 | 3.58 mm |
| 表面处理 | Tin | 密封型 | No |
| 直径 | 3.58mm | 材料（通用） | Copper |
| 底座类型 | Sight Hole | 包装方式 | Bulk |
| 厚度 | 0.84 [0.033] | 重型 | No |
| 绝缘类型 | Not Insulated | 导线线规 | 16-22 AWG |
| 端接方式 | Crimp | 基体材料 | Copper |
| 安装类型 | 闭式压线筒 | 螺柱/焊片尺寸 | 1/4 in |
| 端子类型 | Butt Splice, Inline, Individual Openings | 电缆材料 | Solid or Stranded |
| 连接器类型 | 对接接头 | 接触镀层 | Tin |
| 壳体镀层 | Tin | 触头材料 | Copper |
| 总长度 | 14.68 mm | 刀片材料 | 平接 |
| 包装数量 | Loose Piece | 内径（直径） | 1.55 [0.061] |
| 绝缘高度 | Non-Insulation Support | 端接样式 | Crimp |
| 外径 | 3.58 [0.141] | 材料厚度 | .84 mm [ 0.033 in ] |
| 绝缘材料 - 类型 | No | 位数 | 16 |
| 镀层厚度（通用） | 2.54 µm [ 100 µin ] | 筒体内径 | 1.55 mm [ .061 in ] |
| 绝缘材料 - 材质 | Copper | 进线口数 | 2 |
| 接触镀层厚度 | 2.54 µm [ 100 µin ] | 线规或范围 - AWG | 509 â 3,260 |
| 线规或范围 - mm² | 0.30-1.40² [22-16] | 恢复后内径 | 1.549 mm [ .061 in ] |
产品信息
| 备注 | 22-16 splices are 22-18 range in accordance with MIL-T-7928. | 类型 | Splice Terminal |
| 连接器性别 | Female | 系列 | 330 |
| 覆盖范围 | 无覆盖 | 产品特性 | Brazed Seam, Serrated Mating Area |
| 可密封 | 否 | 制造商全称 | AMP |
| 产品子类型 | Splice | ||
