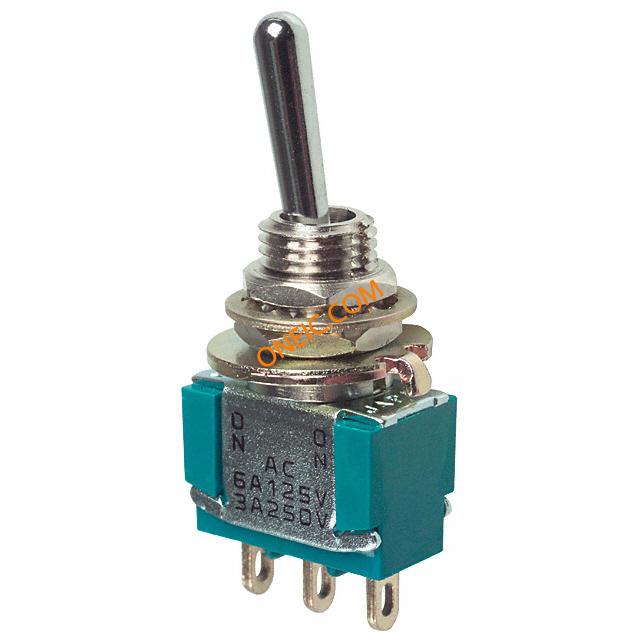

1571920-7
| 制造商 | |
| 描述 | Switch Toggle ON (ON) SPDT Toggle Wire Lug 6A 250VAC 28VDC Panel Mount with Threads Bulk Switch Toggle ON None (ON) SPDT Long Bat Toggle PC Pins 6A 250VAC 28VDC PC Mount with Threads SWITCH TOGGLE SPDT 6A 125V Toggle Switches SPDT (On Mom) 6 A @ 125VAC 10.49 mm Baton Panel Mount Toggle Switch |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 电路 | SPDT | 额定电压 | 28 V |
| 开关功能 | On-Mom | 最大额定电流 | 6@125VAC@(CSA/UL) A |
| 最小输入电压 | 250 V | 开关功能/额定值 | ON (ON) |
机械参数
| 包装方式 | Bulk | 致动器类型 | Standard Round |
| 安装类型 | Panel Mount with Threads | 端子类型 | Wire Lug |
| 衬套螺纹 | 1/4-40 | 执行器长度 | 10.49mm |
| 执行器材料 | Copper Alloy, Chrome Plated | 端接样式 | Solder Lug |
| 开关驱动电平 | SPDT | 面板开孔尺寸（外形） | Circular - 6.40mm Dia |
产品信息
| 类型 | Switches | 产品特性 | Epoxy Sealed Terminals |
| 照明类型 | Non-Illuminated | 卡标准 | Toggle Switch |
| 电气寿命 | 60,000 Cycles | ||
环境参数
| 工作温度 | -20°C ~ 80°C | ||
