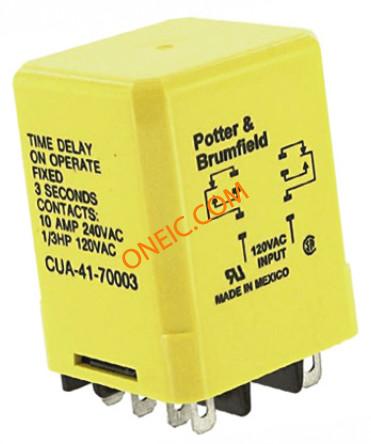

CUA-41-70003
| 制造商 | |
| 描述 | Time Delay & Timing Relays 120VAC 3SEC 10AMP RELAY TIME DELAY DPDT 10A 120VAC Relay,E-Mech,Timing,OnDelay,DPDT,Cur-Rtg Relay;E-Mech;Timing;On Delay;DPDT;Cur-Rtg 10A;Ctrl-V 120AC;3 sec Electromechanical Relay DPDT 10A 120VAC 1Ohm Plain Case Electromechanical Relay DPDT 10A 120VAC 1Ohm Plain Case Product Highlights:CU SeriesTime Delay RelayInput Voltage = 120 VACContact Arrangement = 2 Form C, DPDT, 2 C/OContact Rating = 10A @ 30 VDC or 277 VAC TIME DELAY RELAY, DPDT, 3SEC, 120VAC Relay;E-Mech;Timing;OnDelay;DPDT;Cur-Rtg10A;Ctrl-V120AC;3sec CUA-41-70003=TIME DELAY REL |
| 分类 |
商业参数
| 交货时间 | 84 Days | 其他名称 | 2-1393138-9 |
| 子类别 | Electromechanical Relay | 零件号别名 | 2-1393138-9 |
| 产品类别 | Time Delay & Timing Relays | 标准包装数量 | 6 |
合规参数
| RoHS | No | 海关税号 | 85364110 |
电气参数
| 电路 | DPDT (2 Form C) | 延迟时间 | Fixed, 3 Sec |
| 输出类型 | Mechanical Relay | 量程（°/s） | 3 s |
| 最大电压 | 277 V ac, 30 V dc | 工作模式 | Delay on Operate |
| 开通延迟时间 | :0.1s | 功率 - 冷却 | :3VA |
| 供电电压 | 120 VAC | 最大额定电流 | 10 A |
| 输入电压（最大） | :120VAC | 开关功能/额定值 | DPDT |
| 启动定时方式 | Input Voltage | 触点额定值 @ 电压 | 10 A at 30 VDC, 277 VAC |
机械参数
| 重量 | 0.077 | 触点形式 | 2 Form C (DPDT-BM) |
| 安装类型 | Socket | 端子类型 | Quick Connect |
| 触头材料 | Silver Cadmium Oxide | 端接样式 | Quick Disconnect |
| 典型触点布局 | :DPDT | ||
产品信息
| 功能 | On-Delay | 继电器类型 | Integrated |
| 行业别名 | 2-1393138-9, CUA-41-70003 | 其他规格 | :3s |
| 定时调节方式 | Fixed | ||
