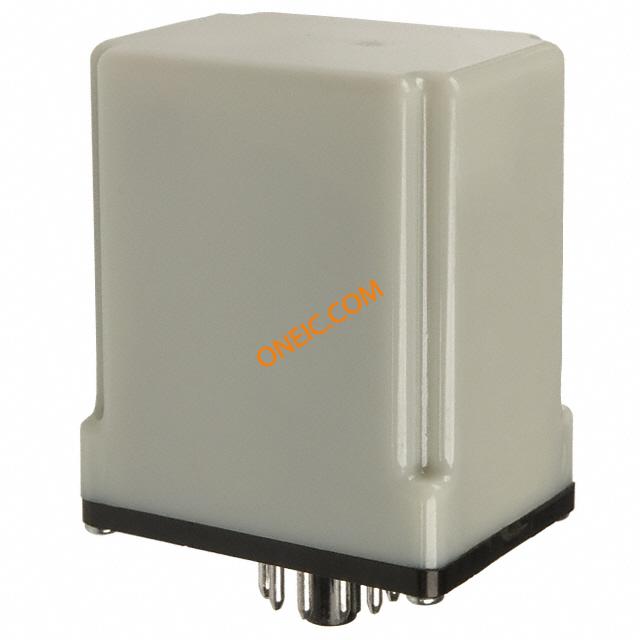

CKF-38-70010
| 制造商 | |
| 描述 | Time Delay & Timing Relays DPDT 120VAC 10A 0.1- 10sec.TIME DELAY RLY RELAY TIME DELAY .1-10SEC 120VAC Relay,SSR,Timing,Multi-Function,DPDT Relay;SSR;Timing;Multi-Function;DPDT;Cur-Rtg 10A;Ctrl-V 120AC;Socket Mnt;Screw Electromechanical Relay DPDT 10A 120VAC 2Ohm Socket Electromechanical Relay DPDT 10A 120VAC 2Ohm Socket Product Highlights:CK SeriesTime Delay RelayInput Voltage = 120 VACContact Arrangement = 2 Form C, DPDT, 2 C/OContact Rating = 10A @ 30 VDC or 277 VAC TIME DELAY RELAY, DPDT, 10SEC, 120VAC Relay;SSR;Timing;Multi-Function;DPDT;Cur-Rtg10A;Ctrl-V120AC;SocketMnt;Screw CKF-38-70010=TIME DELAY REL |
| 分类 |
商业参数
| 交货时间 | 84 Days | 子类别 | Electromechanical Relay |
| 零件号别名 | 6-1393137-3 | 产品类别 | Time Delay & Timing Relays |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 00000000 |
电气参数
| 电路 | DPDT (2 Form C) | 延迟时间 | 0.1 Sec ~ 10 Sec |
| 输出类型 | Mechanical Relay | 量程（°/s） | 0.1 s to 10 s |
| 最大电压 | 277 V ac, 30 V dc | 工作模式 | Delay on Operate |
| 开通延迟时间 | :0.1s | 极数 | :2 |
| 功率 - 冷却 | :3VA | 供电电压 | 120 VAC |
| 最大额定电流 | 10 A | 输入电压（最大） | :120VAC |
| 开关功能/额定值 | DPDT | 启动定时方式 | Input Voltage |
| 触点额定值 @ 电压 | 10 A at 30 VDC, 277 VAC | ||
机械参数
| 重量 | 0.104 | 触点形式 | 2 Form C (DPDT-BM) |
| 安装类型 | Socket | 端子类型 | Screw |
| 端接样式 | 11 Pin Octal Plug | 触点数 | 11 |
| 典型触点布局 | :DPDT | ||
产品信息
| 功能 | On-Delay | 继电器类型 | Integrated |
| 行业别名 | 6-1393137-3, CKF-38-70010 | 宏单元数量 | Multi Function |
| 其他规格 | :10s | 定时调节方式 | External Resistor |
环境参数
| 工作范围 | 0.1 → 10 s | 工作温度 | +55°C |
