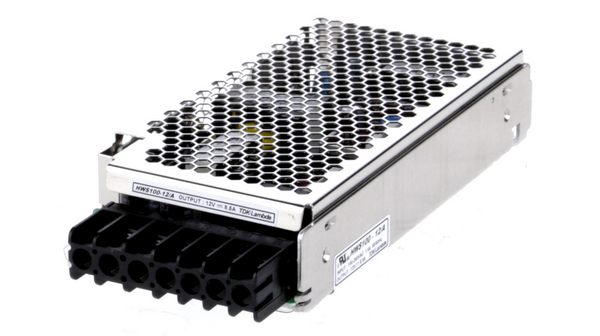

HWS100-12/A
| 制造商 | TDK-Lambda Corporation |
| 描述 | AC/DC Power Supply Single-OUT 12V 8.5A PWR SUP IND 12V 8.5A SNG OUTPUT Linear and Switching Power Supplies 102W 12V 8.5A screw terminal cover PSU, 100W, 12V PowerSupply;AC-DC;12V@8.5A;85-265VIn;Enclosed;PanelMnt;PFC;HWSSeries Switched-mode power supply 1 output, HWS100-12/A, TDK-Lambda |
| 分类 |
商业参数
| 产品 | Switching Supplies | 零件号别名 | HWS10012/A |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85044090 |
| 抗辐射加固 | No | ESD保护 | No |
| 认证机构 | CE, CSA, EN, UL | ||
电气参数
| 频率 | 47 to 63 Hz | 效率 | 86(Typ) % |
| 输出类型 | :Adjustable, Fixed | 最大功率 | :100W |
| 输出功率 | 102 W | 功率（瓦） | 100W |
| 额定功率 | :100W | 额定电压 | 85 to 265 V |
| 电源调整率 | 48mV | 负载调整率 | 96mV |
| 输出电流 | 8.5 A | 供电电压 | :265V |
| 输出数量 | 1 | 供电类型 | Switching (Closed Frame) |
| 最大功率（瓦特） | 102W | 隔离电压 | 3000VAC |
| 最大额定电流 | 1.3(Typ) A | 输出纹波电压 | :150mV |
| 最小输入电压 | 12V | 输出电压（最大） | :14.4V |
| 输出电流/通道 | 8.5 A | 输出电压（最小/固定） | :9.6V |
| 共模瞬态抗扰度（最小） | Commercial | 最大持续工作电压（MCOV） | :265V |
机械参数
| 深度 | 33.02 mm | 宽度 | 1.3 in |
| 高度 | 3.23 in | 长度 | 6.3 in |
| 重量 | 9.523970 oz | 安装类型 | Chassis |
| 安装样式 | Chassis | 总长度 | 160.02 mm |
| 面板安装类型 | Enclosed | 尺寸/外形 | 6.30" L x 1.30" W x 3.23" H (160.0mm x 33.0mm x 82.0mm) |
| 位数 | 7 | 外壳尺寸-插件 | 82.04 |
产品信息
| 类型 | Regulated | 样式 | Enclosed |
| 系列 | HWS | 已删除 | Compliant |
| 应用领域 | Commercial | 应用 | Commercial |
环境参数
| 工作温度 | -10°C ~ 70°C | 结工作温度 | 70C |
文档与媒体
相关型号

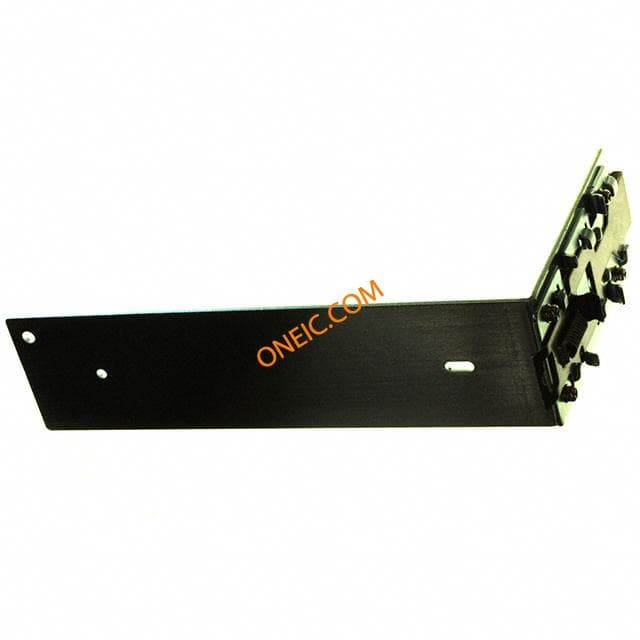

DIN03
TDK-Lambda Corporation
DINRAIL BRACKET FOR HWS80-150 DIN RAIL BRCKT FOR HWS100&HWS150 Mounting Hardware Mounting Bracket For HWS80/100/150 MountingKit;DINRailBracket;forHWS80/100/150Series

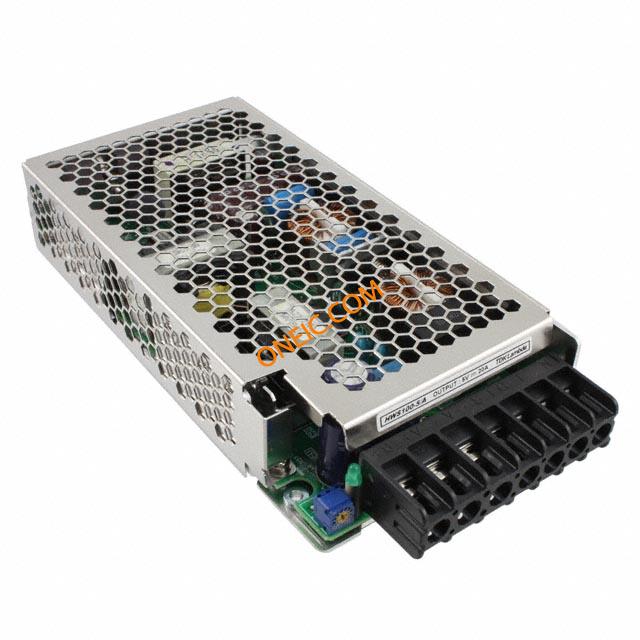

HWS100-5/A
