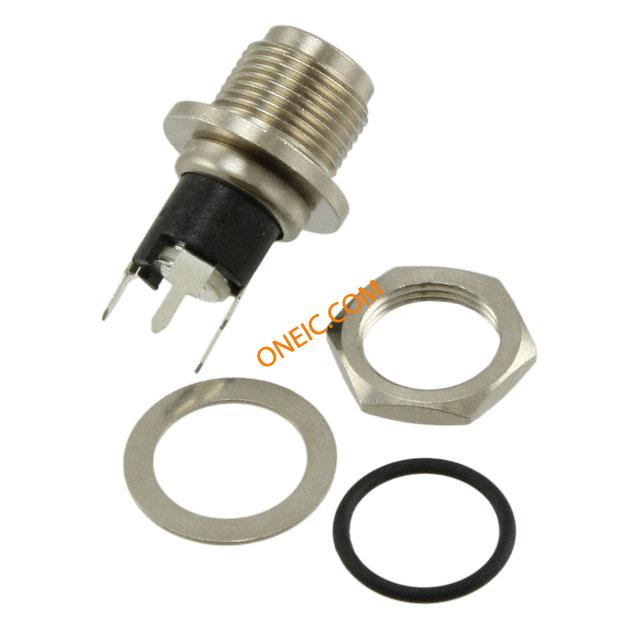

点击放大查看

PCL722AS

制造商	Switchcraft, Inc.
描述	Conn Power F 3 POS Solder ST Thru-Hole 3 Terminal 1 Port CONN PWR JACK PC 2MM SEALED DC Power Connectors Pwr Jack Sealed IP68 2mm lckg PC Mt POWER JACK, 2MM, IP68, PCB SealedPowerJack,centerpin0.08,StraightPC,IP68/NEMA250 Switchcraft PCL7 系列直向直流电源插头 , 5A, 30 V 直流, 通孔, 镀银触芯, IP68
分类	连接器解决方案电源输入连接器电源输入连接器

对参数有疑问？问 AI 助手

商业参数

产品	Jacks	其他名称	SC1393
标准包装规格	100	产品类别	DC Power Connectors
标准包装数量	100	工厂包装数量	100

合规参数

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
欧盟RoHS	Compliant	海关税号	85366990

电气参数

额定电压

12VDC

最大额定电流

机械参数

颜色	Silver	重量	0.001
包装方式	Bulk	屏蔽	Unshielded
端接方式	Solder	外壳颜色	Black
安装类型	Through Hole	连接器类型	Jack
安装样式	Through Hole	触头材料	Copper Alloy
壳体材料	Thermoplastic	端接样式	Solder
触点数	3	接触件端接	:Through Hole Vertical
接触镀层厚度	2 mm	插头/配合插头直径（类型）	2.1mm ID, 5.5mm OD
触点材料 - 镀层	Nickel	第一连接器安装类型	:PCB

产品信息

类型	Power	连接器性别	F
系列	Sealed Power Jacks	产品特性	IP68, Mounting Hardware, Thread Lock
端口数	1	内部开关	Single Switch, Normally Closed
位置/触点数量	2 Conductors, 3 Contacts

文档与媒体

PDF 文档

Jack Schematics

在线文档

Category.aspx?Parent=957
