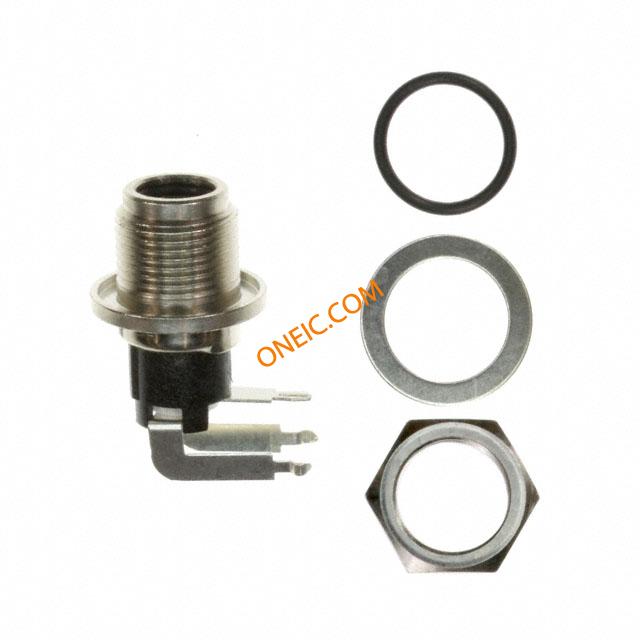

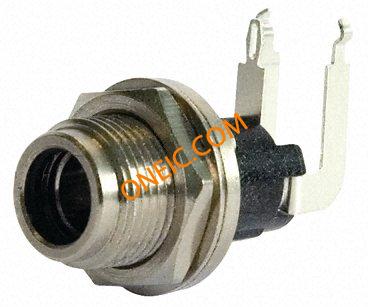

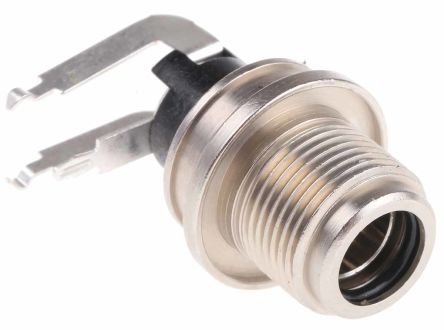

L722RAS
| 制造商 | Switchcraft, Inc. |
| 描述 | Conn Power F 3 POS Solder RA Thru-Hole 3 Terminal 1 Port CONN PWR JACK R/A 2MM SEALED 2mm Right Angle Panel Mount DC Power Socket 5A, 30V dc, Silver Plate, IP68 DC Power Connectors Pwr Jack Sealed IP68 2mm R/A lckg PC Mt POWER JACK, 2MM, IP68, R/A PCB SealedPowerJack,centerpin0.08,RightAnglePC,IP68/NEMA250 Switchcraft 直角 面板安装 直流电源插座, 5A, 30 V 直流, 镀银触点, IP68 |
| 分类 |
商业参数
| 产品 | Jacks | 其他名称 | SC1395 |
| 标准包装规格 | 100 | 产品类别 | DC Power Connectors |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85366990 |
电气参数
| 额定电压 | 12VDC | 最大额定电流 | 5A |
机械参数
| 颜色 | Silver | 长度 | 26.3mm |
| 重量 | 0.001 | 包装方式 | Bulk |
| 屏蔽 | Unshielded | 端接方式 | Solder |
| 引脚直径 | 2mm | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Jack |
| 接触镀层 | Silver | 安装样式 | Through Hole |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 端接样式 | Solder | 触点数 | 3 |
| 接触件端接 | :Through Hole Right Angle | 接触镀层厚度 | 2 mm |
| 插头/配合插头直径（类型） | 2.1mm ID, 5.5mm OD | 触点材料 - 镀层 | Nickel |
| 第一连接器安装类型 | :PCB | ||
产品信息
| 类型 | Power | 连接器性别 | F |
| 系列 | Sealed Power Jacks | 产品特性 | IP68, Mounting Hardware, Thread Lock |
| 端口数 | 1 | 内部开关 | Single Switch, Normally Closed |
| 位置/触点数量 | 2 Conductors, 3 Contacts | ||
环境参数
| 密封等级 | IP68 | NEMA 机架尺寸 | :IP68 |
文档与媒体
相关型号

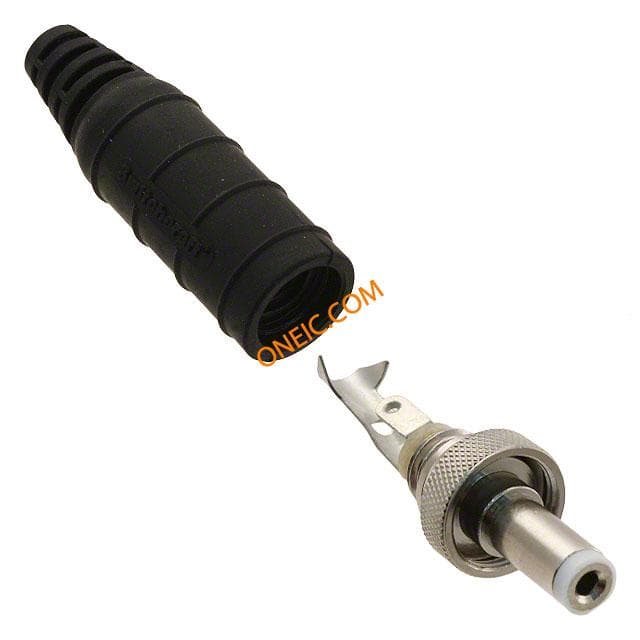

S761KS15
Switchcraft
Conn Power PL 2 POS ST Cable Mount 2 Terminal 1 Port CONN PWR PLUG SEALED 2MM 2mm Straight DC Power Plug Rated At 5A, 30V dc, Cable Mount, Length 57.1mm, Tin Plate, IP68 DC Power Connectors Pwr Plug Sealed IP68 2mm lckg White Tip POWER PLUG, 2MM PIN, 3.8-4.4MM O.D SealedPowerPlug,centerpin0.08,WhiteTip,0.150-0.175CableODRange,IP68/

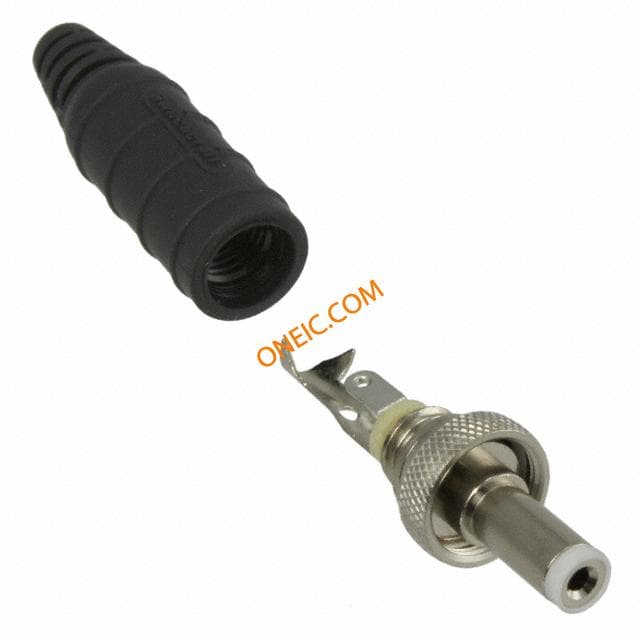

S761KS17
Switchcraft
Conn Power PL 2 POS ST Cable Mount 2 Terminal 1 Port CONN PWR PLUG SEALED 2MM DC Power Connectors Pwr Plug Sealed IP68 2mm lckg White Tip POWER PLUG, 2MM PIN, 4.4-5.1MM O.D SealedPowerPlug,centerpin0.08,WhiteTip,0.175-0.200CableODRange,IP68/ Switchcraft S762KS 系列 直向 直流电源插头 , 5A, 电缆安装, 镀锡触芯, IP68
JCAP
Switchcraft
Connector Accessories Power Jack Sealed Cap Thermoplastic Elastomer Black POWER JACK SEAL CAP Switchcraft JCAP Series Jack Cover For Use With Power Connector JCAP DC Power Connectors Power Jack Seal Cap DUST CAP, FOR POWER JACK PowerJackSealCap Switchcraft 系列, 型 插孔盖, 使用于电源连接器

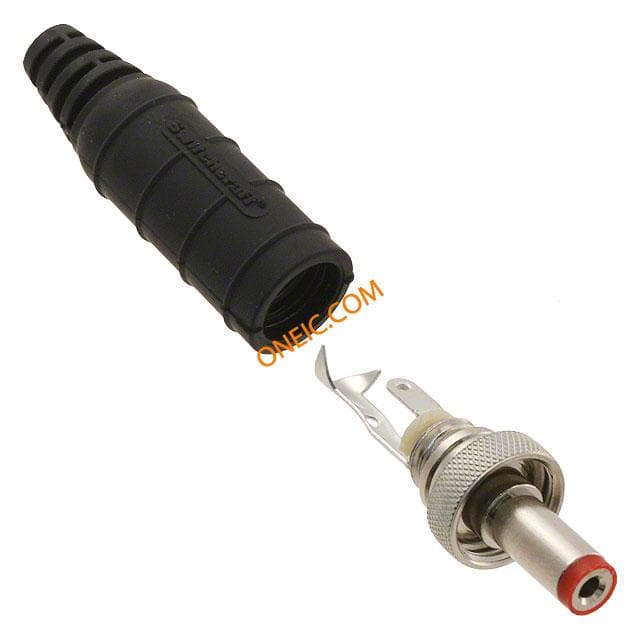

767KS15
Switchcraft
Conn Power PL 2 POS ST Cable Mount 2 Terminal 1 Port CONN PWR PLUG SEALED 2.1MM DC Power Connectors Pwr Plug Sealed IP68 2.1mm lckg Red Tip POWER PLUG, 2.1MM PIN, 3.8-4.4MM O.D SealedPowerPlug,centerpin0.084,RedTip,0.150-0.175CableODRange,IP68/N Switchcraft 直向 直流适配器 , 电缆安装, 镀镍触芯

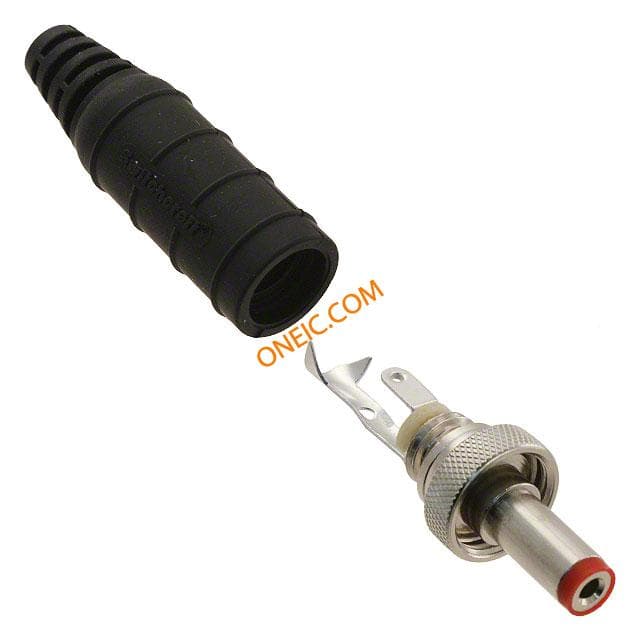

767KS17
Switchcraft
Conn Power PL 2 POS ST Cable Mount 2 Terminal 1 Port CONN PWR PLUG SEALED 2.1MM DC Power Connectors Pwr Plug Sealed IP68 2.1mm lckg Red Tip SEALED PWR PLG, 5A, 30VDC, 2.1MM PIN DIA SealedPowerPlug,centerpin0.084,RedTip,0.175-0.200CableODRange,IP68/N

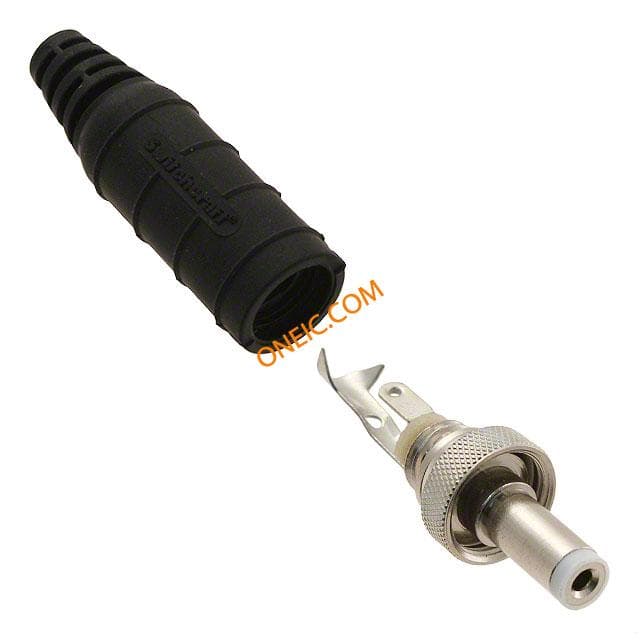

S761KS12
Switchcraft
Conn Power PL 2 POS ST Cable Mount 2 Terminal 1 Port CONN PWR PLUG SEALED 2MM DC Power Connectors Pwr Plug Sealed IP68 2mm lckg White Tip POWER PLUG, 2MM PIN, 3.2-3.8MM O.D SealedPowerPlug,centerpin0.08,WhiteTip,0.125-0.150CableODRange,IP68/

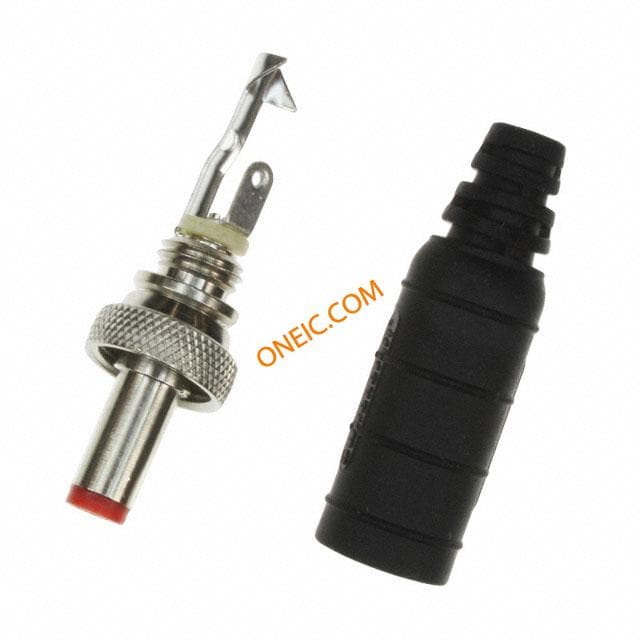

767KS12
