HPCPR41PC
| 制造商 | Switchcraft, Inc. |
| 描述 | Loudspeaker Connectors HPC CONN STRAIGHT P Conn Power F 4Power POS Solder ST Panel Mount 4 Terminal 1 Port CONN RCPT PANEL RND 4PIN PC HPCCONN,STRAIGHTP |
| 分类 |
商业参数
| 产品类别 | Loudspeaker Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 1.5 kV | 供电电压 | Speakon, HPC |
| 最大额定电流 | 30A | 最小输入电压 | 1500VAC |
机械参数
| 颜色 | Black | 高度 | 27.1 |
| 包装方式 | Bulk | 端接方式 | Solder |
| 安装类型 | Panel Mount | 连接器类型 | Receptacle, Non-Gendered |
| 接触镀层 | Silver | 紧固类型 | Push-Pull |
| 安装样式 | PCB | 触头材料 | Copper Alloy |
| 壳体材料 | Thermoplastic | 端接样式 | Solder |
| 触点数 | 4Power | 位数 | 4 |
| 外壳材料及表面处理 | Thermoplastic | ||
产品信息
| 类型 | Power | 连接器性别 | F |
| 端口数 | 1 | ||
环境参数
| 工作温度 | -55°C ~ 85°C | ||
相关型号

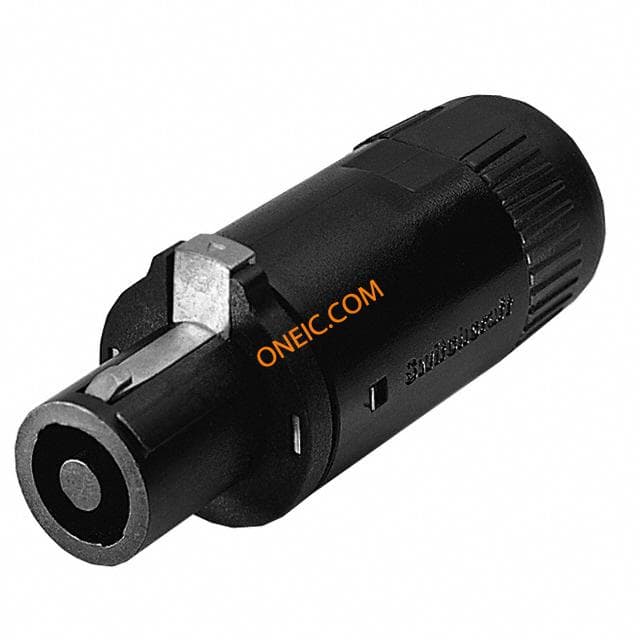

HPCI4F
Switchcraft
Loudspeaker Connectors 4P INLINE .250FASTON Conn Power F 4Power POS Faston ST Panel Mount 4 Terminal 1 Port CONN PLUG INLINE CORD 4PIN .250 HPC In-line Cord Plugs HPCIn-lineCordPlugs

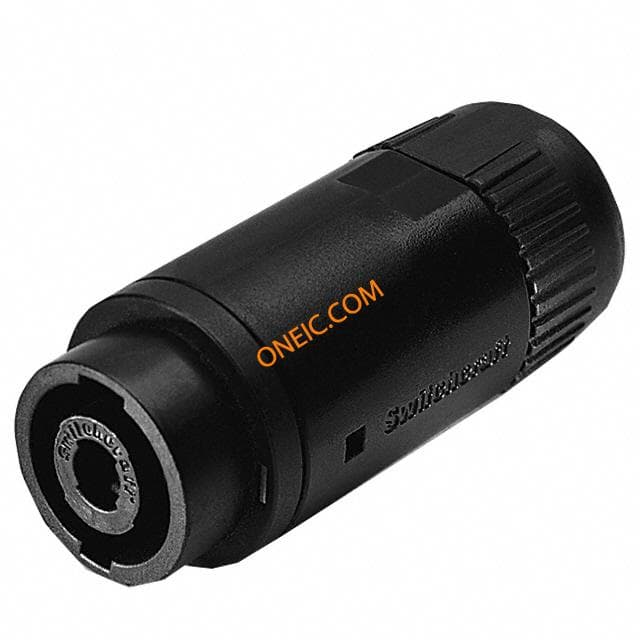

HPCC4F
Switchcraft
Loudspeaker Connectors STRAIGHT CORD PLUG Conn Power F 4Power POS Faston ST Panel Mount 4 Terminal 1 Port CONN PLUG STR CORD 4PIN .250FAST Cord Plug; High Power; 4; 30 A; 1500 VAC (RMS); 10 AWG; gt 2T Ohms CordPlug,HighPower;4;30A;1500VAC(RMS);10AWG;gt2TOhms
HPCI4FPKG
Switchcraft
Loudspeaker Connectors HPC INLINE ASSEMBLY Conn Speaker Connector F 2 POS ST Cable Mount 2 Terminal 1 Port Bulk CONN PLUG INLINE CORD 4PIN .250 HPCINLINEASSEMBLY

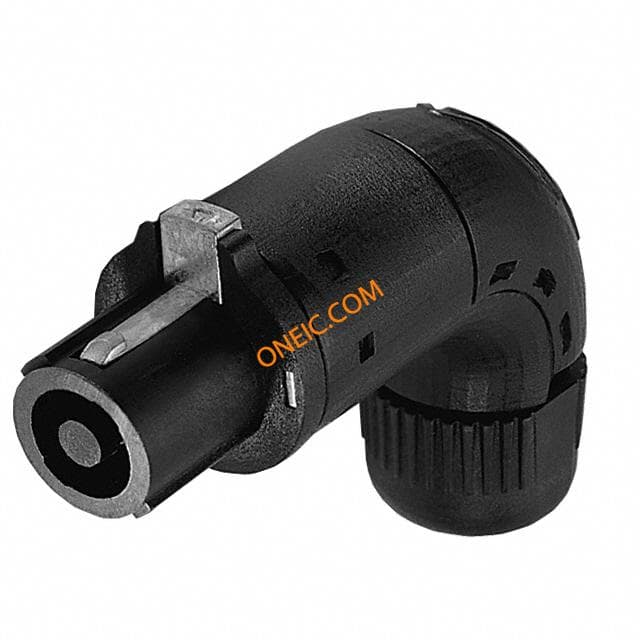

HPCC4RAF
