VIPER17LDTR
| 制造商 | |
| 描述 | High Voltage Converters 16-Pin SO N T/R AC to DC Switching Converter Off-Line Switcher 54kHz to 66kHz 16-Pin SO N SMPS SO-16N SMD IC OFFLINE CONV PWM OVP 16SOIC VIPER17LDTR, AC-DC Converter, 16-Pin SOIC AC/DC Converters Off-Line Converter 800 V PWM Cntrl |
| 分类 |
商业参数
| 最小起订量 | 2500 | 单位包装 | 2500 |
| 其他名称 | 497-7048-2 | 产品类别 | AC/DC Converters |
| 标准包装数量 | Tape & Reel | 标准封装名称 | SOIC |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 汽车级 | NO | 无铅定义 | RoHS-conform |
电气参数
| 频率 | 60000Hz | 功率（瓦） | 12W |
| 频率范围 | 54kHz ~ 66kHz | 输出隔离 | Isolated |
| 输出电流1 | 2.5A | 击穿电压 | 800V |
| 开关频率 | 60 kHz | 最小输入电压 | 23.5V |
机械参数
| 宽度 | 3.9mm | 高度 | 1.25mm |
| 长度 | 9.9mm | 包装方式 | Tape & Reel (TR) |
| 引脚样式 | Gull-wing | 安装类型 | Surface Mount |
| 封装形式 | 16SO N | 冷却的封装 | SO N |
| 总长度 | 10(Max) | 包装数量 | SO N |
| 尺寸/外形 | 9.9 x 3.9 x 1.25mm | 位数 | 16 |
| 外壳尺寸-插件 | 1.6(Max) | 供应商器件封装 | 16-SO |
产品信息
| 类型 | SMPS | 匹配码 | VIPER17LDTR |
| 标准交期 | 28 weeks | 印刷电路板数量 | 16 |
环境参数
| 工作温度 | -40 to 150 °C | 最高温度限值 | 150°C |
文档与媒体
相关型号
EVALVIPER17H-6W
STMicroelectronics
Power Management IC Development Tools DEMO BOARD 7W SINGLE OUTPUT ON VIPER17 BOARD EVAL FOR VIPER17H

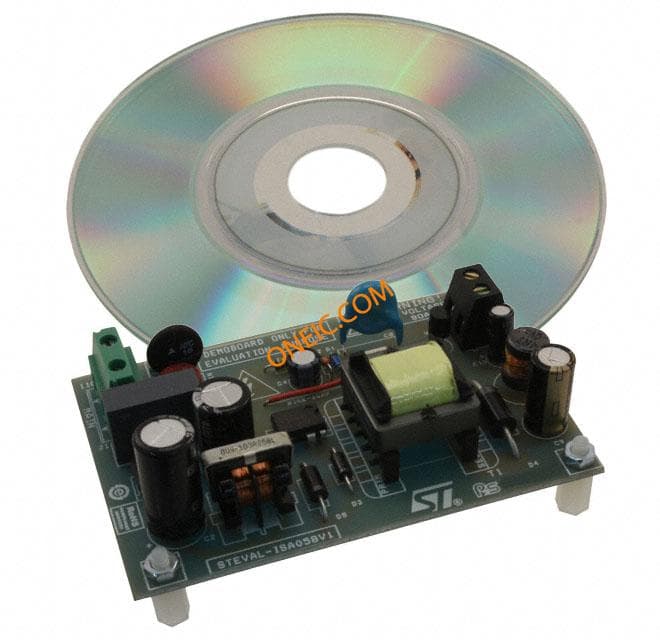

STEVAL-ISA058V1
