VIPER17HN
| 制造商 | |
| 描述 | High Voltage Converters 7-Pin PDIP Tube AC to DC Switching Converter Off-Line Switcher 103kHz to 127kHz 7-Pin PDIP IC OFFLINE CONV PWM OVP OCP 8DIP VIPER17HN, AC-DC Converter, 7-Pin, PDIP AC/DC Converters Off-Line High Volt Regulator 交直流转换器, 7引脚 PDIP封装 |
| 分类 |
商业参数
| 产品类别 | AC/DC Converters | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 2000 | 标准封装名称 | PDIP |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 隔离 | Isolated | 最大功率 | 12W |
| 输出功率 | 10 W | 功率（瓦） | 12W |
| 额定电压 | 800 V | 频率范围 | 103kHz ~ 127kHz |
| 输出电流 | 25 mA | 供电电流 | 1.8 mA |
| 占空比（最大） | 80 % | 输出隔离 | Isolated |
| 供电电压 | 8.5 V ~ 23.5 V | 输出数量 | 1 |
| 击穿电压 | 800V | 开关频率 | 115 kHz |
| 最小输入电压 | 8.5 V ~ 23.5 V | ||
机械参数
| 宽度 | 6.35mm | 高度 | 3.3mm |
| 长度 | 9.27mm | 包装方式 | Tube |
| 引脚样式 | Through Hole | 安装类型 | Through Hole |
| 安装样式 | Through Hole | 引脚数 | 7 |
| 封装形式 | 7PDIP | 冷却的封装 | PDIP |
| 总长度 | 9.27 | 包装数量 | PDIP |
| 尺寸/外形 | 9.27 x 6.35 x 3.3mm | 位数 | 7 |
| 外壳尺寸-插件 | 3.3 | 供应商器件封装 | 8-DIP |
产品信息
| 系列 | VIPer™ plus | 拓扑 | Flyback |
| 制造商全称 | STMicroelectronics | 印刷电路板数量 | 7 |
环境参数
| 工作温度 | -40 to 150 °C | ||
文档与媒体
相关型号
EVALVIPER17H-6W
STMicroelectronics
Power Management IC Development Tools DEMO BOARD 7W SINGLE OUTPUT ON VIPER17 BOARD EVAL FOR VIPER17H

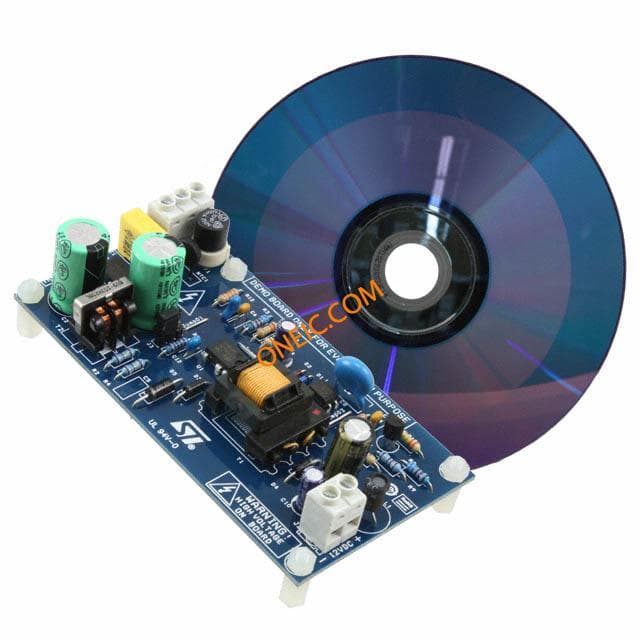

STEVAL-ISA060V1
