STM32F100RCT6TR
| 制造商 | STMicroelectronics N.V. |
| 描述 | LQFP 64 10X10X1.4 1 STM32 SERIES 32-BIT 256 KB FLASH 8 KB RAM ARM BASED MICROCONTROLLER - LQFP-64 IC ARM CORTEX MCU 256KB 64LQFP ARM Microcontrollers - MCU 32BIT CORTEX M3 256K Flash 6KB RAM MCU, 32BIT, CORTEX-M3, 24MHZ, LQFP-64 STMicroelectronics STM32F 系列 32 bit ARM Cortex M3 MCU, 24MHz, 256 kB ROM 闪存, 24 kB RAM, 64针 LQFP封装 |
| 分类 |
商业参数
| 产品类别 | ARM Microcontrollers - MCU | 标准包装数量 | 1,000 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
电气参数
| 转速 | 24MHz | RAM 大小 | 24K x 8 |
| 内核大小 | 32-Bit | 核心类型 | ARM Cortex M3 |
| 接口 | :I2C, SPI, UART, USART | 存储器容量 | :24KB |
| I/O 数量 | 51 | 时钟频率 | :24MHz |
| 数据转换器 | A/D 16x12b; D/A 2x12b | 振荡器类型 | Internal |
| 供电电压 | :2V | 程序存储器大小 | 256KB (256K x 8) |
| 程序存储器类型 | FLASH | 供电电压 (Vcc/Vdd) | 2 V ~ 3.6 V |
机械参数
| 重量 | 0.00026 | 包装方式 | Tape & Reel (TR) |
| 引脚数 | :64 | 封装形式 | 64-LQFP |
| 材料表面处理 | :MSL 3 - 168 hours | 核心数/总线宽度 | 32 bit |
产品信息
| 类型 | Unclassified | 外设 | DMA, PDR, POR, PVD, PWM, Temp Sensor, WDT |
| 架构 | :ARM Cortex-M3 | 连接性 | I²C, IrDA, LIN, SPI, UART/USART |
| 核心处理器 | ARM® Cortex™-M3 | 控制器系列 | :STM32F |
环境参数
| 工作温度 | -40°C ~ 85°C | ||
文档与媒体
相关型号
STM32100E-EVAL
stmicroelectronics
Evaluation Board Designed As A Complete Development Platform For Cortex-M3 Corebased STM32F100 Microcontroller Development Boards & Kits - ARM STM32F100 MCU EVAL STLINK/V2 Complete EVAL BOARD FOR STM32 EVALUATION BOARD, STM32F100 MCU EVAL BOARD, ARM, STM32F100
STX-RLINK
stmicroelectronics
DEBUGGER AND PROGRAMMER FOR MCU UNIVERSAL JTAG In-Circuit Debuggers IN-CIRCUIT DEBUGGER FOR ST7 UPSD STR7 RAISONANCE S IN-CIRCUIT DEBUGGER/PROGRAMMER FOR STM8, ST7, UPSD, STM32, STR7 AND STR9 JTAG-USB Dbg. STM8/STM32/STR7 KIT TOOL FOR ST7/UPSD/STR7 MCU STX-RLINK, Development Kit, 8 bit, ST7, STM8, STM32, STR7, STR9, ICC Adapter, JTAG Adapter, SWIM Adapter Raisonances In-Circuit Debugger/Programmer For STM8,STM32 ICD/PROGRAMMER, FOR STM8, ST7, STM32 PROGR-DEBUGGERSTX-RLINK STMicroelectronics 8 位 MCU 处理器和微控制器开发套件

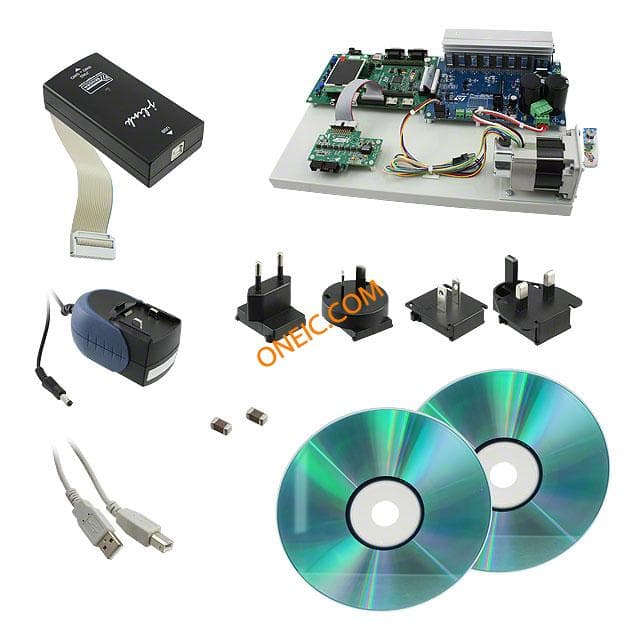

STM32100B-MCKIT
